How to Use¶

This page provides a concise overview of how to perform an analysis with the CWB pipeline.

Parameter files for the production and post-production stages:

user_parameters.C	parameter file for the production stage
user_pparameters.C	parameter file for the post-production stage

Procedure to set up the working environment and perform the analysis:

Main Steps

Detailed information on the main analysis stages are available at the following links:

pre-production	setting up the working environment
production	running the analysis
post-production	collecting the results and generating figures of merit
trigger parameters	lists of triggers parameters
web pages	overview of the web pages collecting the analysis results
FAD howto	guidelines on the calculation of the false alarm rate-density statistic

Examples on how to perform analyses with CWB:

Background Example	an example of a background estimation
Simulation Example	an example of a simulation study
Example of a search for intermediate mass black hole binaries
Interactive multistages 2G analysis Example	a step-by-step guide to perform a multi-stage analysis
Batch 2 stages 2G analysis Example	a step-by-step guide to perform a two-stage analysis
Merging multiple backgrounds into a single report	How to merge multiple backgrounds into a single report
Analysis of the loudest events	How to do the analysis of the most significative events
Parameter Estimation Analysis	How to do the Parameter Estimation analysis

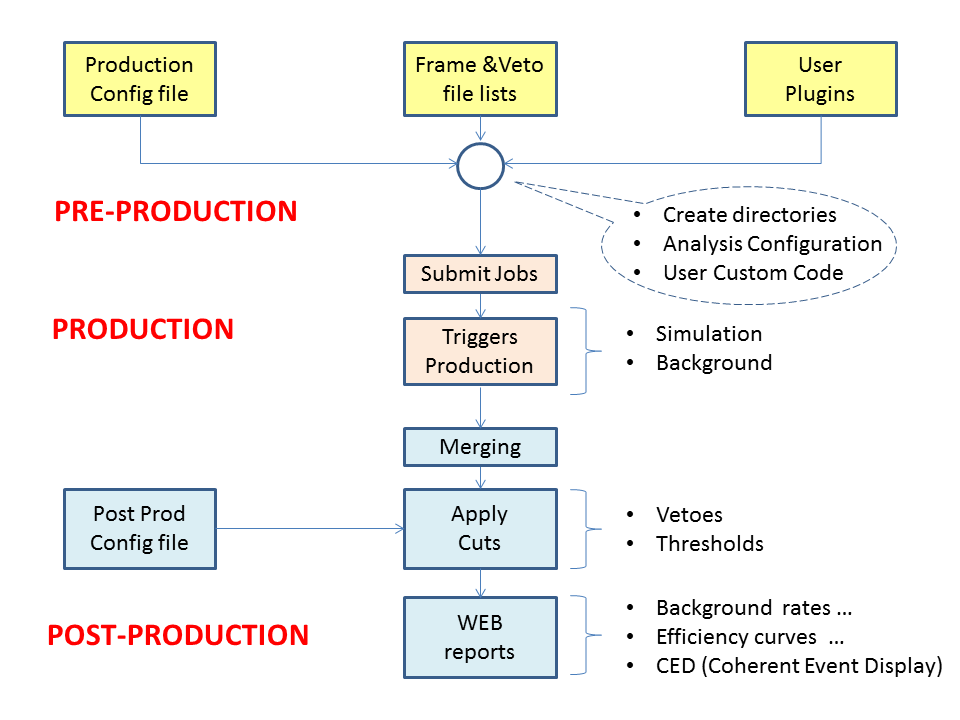

Flow-chart¶

user_parameters.C¶

The pipeline has a default parameter file called cwb_parameters.C which contains the list of needed variables for the analysis set at a certain value. The user can modify some of these values adding them in the config/user_parameters.C file. We report here all the variable contained in the cwb_parameters.C file, the user can change each of them accordingly to his/her preferences. Some variable are common for 1G and 2G pipelines, other are characteristic of one of them, in the following sections we distinguish between:

parameter for both analyses (1G/2G)
parameter only for 1G
parameter only for 2G

To obtain complete list of parameters with default setting:

root -b -l $CWB_PARAMETERS_FILE
cwb[0] CWB::config cfg;     // creates the config object
cwb[1] cfg.Import();        // import parameter from CINT
cwb[2] cfg.Print();     // print the default parameters

This is the complete file:

cwb1G_parameters.C

cwb2G_parameters.C

We divide the file in different sections for simplicity:

Analysis	Type of analysis (1G/2G and polarization constrain)
Detectors	How to include detectors
Wavelet TF transformation	how to define wavelet decomposition level
1G conditioning	Parameters for Linear Prediction Filter
2G conditioning	Parameters for Regression
Cluster thresholds	Pixels and Cluster selection
Wave Packet parameters	Pixels Selection & Reconstruction
Job settings	Time segments definition
Production parameters	Typical parameter for background
Simulation parameters	Typical parameter for simulation (MDC)
Data manipulating	Change frame data (amplitude and time shift)
Regulator	Likelihood regolators
Sky settings	How to define the sky grid
CED parameters	Parameters for CED generation
Files list	How to include frame and DQ files
Plugin	How to include Plugins
Output settings	Decide what information to store in the final root files
Working directories	Set up of working dir

Analysis¶

char analysis[8]="1G";   // 1G or 2G analysis
bool online=false;       // true/false -> online/offline
char search = 'r';       // see description below

analysis:

Setting first generation detector (1G) or second generation detector (2G) analysis. The difference between the two analyses are explained here: …
online:

Defining if the analysis is ONLINE or not
search:

putting a letter define search constrains on waveform polarization.

for 1G

// statistics:
 // L  - likelihood
 // c  - network correlation coefficient
 // A  - energy disbalance asymmetry
 // P  - penalty factor based on correlation coefficients <x,s>/sqrt(<x,x>*<s,s>)
 // E  - total energy in the data streams

 // 1G search modes
 // 'c' - un-modeled search, fast S5 cWB version, requires constraint settings
 // 'h' - un-modeled search, S5 cWB version, requires constraint settings
 // 'B' - un-modeled search, max(P*L*c/E)
 // 'b' - un-modeled search, max(P*L*c*A/E)
 // 'I' - elliptical polarisation, max(P*L*c/E)
 // 'S' - linear polarisation, max(P*L*c/E)
 // 'G' - circular polarisation, max(P*L*c/E)
 // 'i' - elliptical polarisation, max(P*L*c*A/E)
 // 's' - linear polarisation, max(P*L*c*A/E)
 // 'g' - circular polarisation, max(P*L*c*A/E)

for 2G

//   r - un-modeled
//   i - iota - wave (no dispersion correction)
//   p - Psi - wave
// l,s - linear
// c,g - circular
// e,b - elliptical (no dispersion correction)
// low/upper case search (like 'i'/'I') & optim=false - standard MRA
// low case search (like 'i')           & optim=true  - extract PCs from a single resolution
// upper case (like 'I')                & optim=true  - standard single resolution analysis

Detectors¶

List of detectors including in the network.

cWB already contained complete information about a set of existing or possible future detectors:

L1: 4km Livingston
H1: 4km Hanford
H2: 2km Hanford
V1: 3km Virgo
I1: Indian
J1: KAGRA

Moreover, it is possible to define a not included detector specifying the position on the Earth and the arms direction.

int  nIFO = 3;           // size of network starting with first detector ifo[]
char refIFO[4] = "L1";   // reference IFO

char ifo[NIFO_MAX][8];
for(int i=6;i<NIFO_MAX;i++) strcpy(ifo[i],""); // ifo[] can be redefined by user

detectorParams detParms[NIFO_MAX];
detectorParams _detParms = {"",0.,0.,0.,0,0.,0.,0.};
for(int i=0;i<NIFO_MAX;i++) detParms[i] = _detParms;

nIFO

Number of detectors in the network, this number should be less than IFO_MAX=8.
refIFO

A detector is used as reference for the search in the sky grid. This detectors is never shifted.
ifo

List of detectors already included in the library. If the user has to redefine a detector, can leave this blank void.
detParms

List of detectors defined by the user, the internal parameters are:
- Name
- Latitude [degrees]
- Longitude [degree]
- Altitude [m]
- …
- Angle of x arm respect to the North
- …
- Angle of y arm respect to the North

Example:

nIFO = 2;
strcpy(ifo[0],"L1");
strcpy(ifo[1],"");
detParms[1] = {"I3", 14.4,      76.4,    0.0, 0, (+135+0.0    ),    0, ( +45+0.0    )},   // I1

Wavelet TF transformation¶

Wavelet decomposition transforms data from time domain to Time-Frequency (TF) domain. Original information are stored in TF pixels which can have various TF resolutions DF and DT, such as DF*DT=0.5 The TF resolutions are decided by the wavelet decomposition levels used and the sample rate in time domain. For instance, with a sample rate R and level N we have:

DF = (R/2)/2^N

DT = 2^N/R

cWB combines the amplitude TF pixels from multiple TF decomposition levels.

The parameters are:

size_t inRate= 16384;    // input data rate
double fResample = 0.;   // if zero resampling is not applied  (SK: this parameter may be absolete)

int levelR   = 2;        // resampling level   (SK: absolete because of new parameter fsample)
int l_low    = 3;        // low frequency resolution level
int l_high   = 8;        // high frequency resolution level

For 2G analysis:

char   wdmXTalk[1024] = "wdmXTalk/OverlapCatalog_Lev_8_16_32_64_128_256_iNu_4_Prec_10.bin";
                             // catalog of WDM cross-talk coefficients

inRate

Sample rate of input data for all detectors.

fResample

If different from zero, the input data are resample to this new sample rate before starting any decomposition

levelR

Resapling level. It uses wavelet decomposition to downsample data from starting rate to the desired rate. Using wavelet decomposition, levelR is decided according to the formula above.

low

This is the minimum decomposition level used in the analysis.

high

This is the maximum level decomposition analysis.

wdmTalk

for WDM transform, this file containes the information how to apply time shift in TF decomposition.

Example: With the default number, starting from a sample rate of 16384 Hz, the levelR make a dowsample to 4096 Hz. Low and high have respectively TF resolutions of DF/DT = 2ms/256Hz and 62.5ms/8Hz.

1G conditioning¶

The conditioning step removes the persistent lines and apply the whitening procedure. For 1G the line removal is obtained using the Linear Predictor Filter (LPR).

int levelF   = 6;        // level where second LPR filter is applied
int levelD   = 8;        // decomposition level
double Tlpr  = 120.;     // training time for LPR filter

levelF

The Linear Prediction Removal (LPR) filter identifies and removes spectral persisten lines from the noise data. It is applied at two different TF domains. This level selects the TF resolution at which LPR is applied for the second time.
levelD

At this decomposition level the pipeline applied the LPR filter for the first time and the data whitening in this order.
Tlpr [s]:

Training time for the application of LPR filter

2G conditioning¶

The conditioning step removes the persistent lines and apply the whitening procedure. For 2G analysis, the line removal is obtained using the Regression algorithm. The whitening procedure uses the whiteWindow and whiteStride parameters, see whitened procedure.

int levelD   = 8;          // decomposition level

double whiteWindow = 60.;  // [sec] time window dT. if = 0 - dT=T, where T is segment duration
double whiteStride = 20.;  // [sec] noise sampling time stride

levelD

At this decomposition level the pipeline applied the regression algorithm and the whitening procedure.

Cluster thresholds¶

double x2or  = 1.5;      // 2 OR threshold
double netRHO= 3.5;      // threshold on rho
double netCC = 0.5;      // threshold on network correlation

double bpp   = 0.0001;   // probability for pixel selection
double Acore = sqrt(2);  // threshold for selection of core pixels
double Tgap  = 0.05;     // time gap between clusters (sec)
double Fgap  = 128.;     // frequency gap between clusters (Hz)
double TFgap =  6.;      // threshold on the time-frequency separation between two pixels

double fLow  = 64.;      // low frequency of the search
double fHigh = 2048.;    // high frequency of the search

x2or: only for 1G

threshold on the pixel energies during the coherence phase. The energy of a single detector should be not too large respect to the others.
netRHO:

Cluster are selected in production stage if rho is bigger than netRHO
netCC:

Cluster are selected in production stage if rho is bigger than netCC
bpp: Black Pixel Probability

Fraction of most energetic pixels selected from the TF map to construct events
Acore:

…
Tgap and Fgap

Maximum gaps between two different TF pixels at the same decomposition level that can be considered for an unique event
TFgap

Threshold on the time-frequency separation between two pixels
fLow and fHigh

Boundary frequency limits for the analysis. Note: This limits are considered directly in the TF decomposition, so the pipeline chooses the nearest frequencies to these values according to the decomposition level

Wave Packet parameters¶

Pixels Selection & Reconstruction (see The WDM packets)

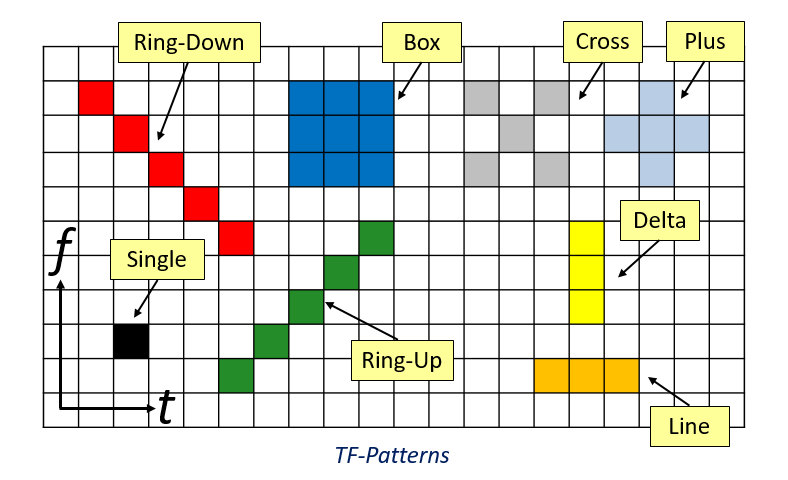

Select pixel pattern used to produce the energy max maps for pixel’s selection

// patterns: "/" - ring-up, "\" - ring-down, "|" - delta, "-" line, "*" - single

pattern =  0 - "*"   1-pixel  standard search
pattern =  1 - "3|"  3-pixels vertical packet (delta)
pattern =  2 - "3-"  3-pixels horizontal packet (line)
pattern =  3 - "3/"  3-pixels diagonal packet (ring-up)
pattern =  4 - "3\"  3-pixels anti-diagonal packet (ring-down)
pattern =  5 - "5/"  5-pixels diagonal packet (ring-up)
pattern =  6 - "5\"  5-pixels anti-diagonal packet (ring-down)
pattern =  7 - "3+"  5-pixels plus packet (plus)
pattern =  8 - "3x"  5-pixels cross packet (cross)
pattern =  9 - "9p"  9-pixels square packet (box)
pattern = else - "*" 1-pixel  packet (single)

Select the reconstruction method

pattern==0                   Standard Search : std-pixel    selection + likelihood2G
pattern!=0 && pattern<0      Mixed    Search : packet-pixel selection + likelihood2G
pattern!=0 && pattern>0      Packed   Search : packet-pixel selection + likelihoodWP

Job settings¶

This section sets the time length for the jobs (see also How job segments are created).

// segments
int    runID = 0;        // run number, set in the production job
double segLen     = 600.;  // Segment length [sec]
double segMLS     = 300.;  // Minimum Segment Length after DQ_CAT1 [sec]
double segTHR     = 30.;   // Minimum Segment Length after DQ_CAT2 [sec]
double segEdge    = 8.;    // wavelet boundary offset [sec]

runID

job number to be analysed. This parameters is auotmatically overwritten when using condor submission (see cwb_condor) and cwb_inet command
segLen [s]

is the typical and maximum job length. This is the only possible lenght is super lags are used. (For super-lags see Production parameters)
segMLS [s]

is the minimum job lenght in seconds. It could happens that after application of Data Quality it is not possible to have a continous period of lenght segLen, so the pipeline consider the remaining period if this has a lenght bigger than segMLS. This means that job could have segMLS < lenght < segLen.
segTHR [s]

is the minimum period of each job that survives after DQ_CAT2 application . This means that, if a job of 600 s, has a period of CAT2 less than segTHR, it is discarded from the analysis. If segTHR = 0, this check is disabled.
segEdge [s]

is a scratch period used by the pipeline for the wavelet decomposition. For each job the first and last segEdge seconds are not considered for the trigger selection.

Production parameters¶

Production stage consists of time shifting data for each detectors so
that reconstructed events are surely due to detectors noise and not
gravitational waves.
cWB can perform two shifts type: the first inside the job segment:
the second between different jobs segments. We call the first case as
lag shifts and the second case as super-lags shift.
In lag case, the pipeline perform circular shifts on the data of
a job. Suppose that a job has a lenght T, the pipeline can perform
shifts of step ts, which a maximum number of shifts M such as M*ts <= T.

Even if shifts are performed circularly, no data are loss, and shifting the detector A respect to B of the time K, is the same as shifting detector B of the time -K respect to A. So, considering N detectors composing the network, the number of possible lag shifts are (N-1)*M for each job. For N>2 case, the algorithm can perform two different ways:

shifts only the first detector respect to the other (inadvisable);

randomly choose from the list of available shifts a subset that are used in the analysis according to user definition. Randomization algorithm depends only on the detector number and the maximum possible shift.

It is possible to write in a text file the lag list applied. The lags are stored with a progressive number which identifies univocally the lags. The lags parameters are:

lagSize

Lags numbers used (for Simulation stage should be set to 1)
lagStep

Time step for the shifts
lagOff

Progressive number of the lag list from which starting to select the subset.
lagMax

Maximum Allowable shift. If lagMax=0, than only the first detector is shifted, and the maximum allowable shift is given by lagSize parameter. If lagMax > 0 better to chech if lagMax*lagStep < T, otherwise could be possible to loose some lags.
lagMode

Possibility to write (w)/read (r) the lag list to/from a file.
lagFile

File name which can be written/read according to the previous parameter. If lagMode=w and lagFile=NULL no file is written. If lagMode=r and tlagFile=NULL the pipeline returns an error
lagSite

This parameter is a pointer to a size_t array and it is used to declare the detectors with the same site location like H1H2. This information is used by the built-in lag generator to associate the same lags to the detectors which are in the same site. If detectors are all in different sites the default value must be used (lagSite=NULL)
```
Example : L1H1H2V1

lagSite = new size_t[4];
lagSite[0]=0; lagSite[1]=1; lagSite[2]=1; lagSite[3]=2;
```
shifts

Array for each detector which the possibilty to apply a constant circular shifts to the detectors (storically, no more used)
mlagStep

To limit computational load, it is possible to cicle over the lagSize number of lags in subsets of size equal to mlagStep instead of all the lags together. This reduce computational load and increase computational time.

Examples :

2 detectors L1,H1 : 351 standard built-in lags (include zero lag)

lagSize    = 351;     // number of lags
lagStep    = 1.;      // time interval between lags = 1 sec
lagOff     = 0;       // start from lag=0, include zero lag
lagMax     = 0;       // standard lags

the output lag list is :

   lag          ifoL1         ifoH1
     0        0.00000       0.00000
     1        1.00000       0.00000
     2        2.00000       0.00000
   ...      .........       .......
   350      350.00000       0.00000

note : values ifoDX are in secs


3 detectors L1,H1,V1 : 350 random built-in lags (exclude zero lag)

lagSize    = 351;     // number of lags
lagStep    = 1.;      // time interval between lags = 1 sec
lagOff     = 1;       // start from lag=1, exclude zero lag
lagMax     = 300;     // random lags : max lag = 300

the output lag list is :

   lag          ifoL1         ifoH1         ifoV1
     1      158.00000     223.00000       0.00000
     2        0.00000     195.00000     236.00000
     3       28.00000       0.00000     179.00000
   ...      .........       .......     '''''''''
   350      283.00000       0.00000     142.00000

note : values ifoDX are in secs


3 detectors L1,H1,V1 : load 201 custom lags from file

lagSize    = 201;     // number of lags
lagOff     = 0;       // start from lag=1
lagMax     = 300;     // random lags : max lag = 300

lagFile = new char[1024];
strcpy(lagFile,"custom_lagss_list.txt"); // lag file list name
lagMode[0] = 'r';                // read mode

an example of input lag list is :

   0       0       0       0
   1       0       1       200
   2       0       200     1
   3       0       3       198
   ...     ...     ...     ...
   200     0       2       199

note : all values must be integers
       lags must in the range [0:lagMax]

In the super-lags case, the pipeline consider data of each detectors belonging to different segments, so shifted of a time multiple of T. In this way we can increase easily the number of time lags because it allows to make shifts between data bigger than T (expecially when having two detectors). Once selected different segments the standard circular lags shifts are applied as the different segments would be the same one. The meaning of the parameter are similar to the one of lags case, but here the values are in segments and not in seconds as for the previous case.

A detailed description of the slag configuration parameters is here :

CWB::Toolbox::getSlagList()

Examples :

use standard segment

slagSize   = 0;     // Standard Segments : segments are not shifted, only lags are applied
                    // segments length is variable and it is selected in the range [segMSL:segLen]

3 detectors L1,H1,V1 : select 4 built-in slags

slagSize   = 4;     // number of super lags
slagMin    = 0;     // select the minimum available slag distance : slagMin must be <= slagMax
slagMax    = 3;     // select the maximum available slag distance
slagOff    = 0;     // start from the first slag in the list

the output slag list is :

        SLAG         ifo[0]        ifo[1]        ifo[2]
           0             0             0             0
           1             0             1            -1
           2             0            -1             1
           3             0             2             1

3 detectors L1,H1,V1 : load 4 custom slags from file

slagSize   = 4;     // number of super lags
slagOff    = 0;     // start from the first slag in the list

slagFile = new char[1024];
strcpy(slagFile,"custom_slags_list.txt"); // slag file list name

an example of input slag list is :

   1            0               -4              4
   2            0                4             -4
   3            0               -8              8
   4            0                8             -8

note : all values must be integers

Simulation parameters¶

Simulation stage allows to test efficiency detection of the pipeline. It consists on injecting simulated waveforms (MDC) on the detector data. Once chosen the simulation stage, the pipeline make the analysis only around the injection times (and not all the segments) to reduce computational load.

Waveforms are injected at different amplitudes, each amplitude is repeated for each waveform at the same time, such repeating the analysis for each factor.

int simulation = 0;        // 1 for simulation, 0 for production
double iwindow = 5.;       // analysis time window for injections (Range = Tinj +/- gap/2)
int nfactor=0;             // number of strain factors
double factors[100];       // array of strain factors
char injectionList[1024]="";

simulation

variable that sets the simulation stage: 1=simulation, 0=production If sets to 2 it sets injections at constant network SNR over the sky, instead of hrss.
gap

time windows around the time injection that is analysed (+- gap).
nfactor - factors
list of factors which differ according to the value of simulation.
1. amplitude factors to be multiplied ot the hrss written in the injectionList.
2. network SNR (waveform is rescaled according to these values).
3. time shift applied to the waveforms
4. progressive number referring to the multiple trials for injection volume distribution
injectionList

path of file containing all the information about inections (waveform type, amplitude, source directions, detector arrival times, …)

Data manipulating¶

It is possible to apply constant shifts and/or uniform amplitude modifications on detectors data. Here are the parameters that allow to do these things:

Calibration
```
double dcCal[NIFO_MAX];
for(int i=0;i<NIFO_MAX;i++) dcCal[i] = 1.0;
```
Possibility to apply constant modifications on data amplitudes. Different factors can be applied to different detectors. The data are modified in this way: output = dcCal * input. This allows to threat eventual calibration corrections on the detectors.
Time shift
```
double dataShift[NIFO_MAX];
for(int i=0;i<NIFO_MAX;i++) dataShift[i] = 0.;
```
Possibility to apply constant time shifts to data. These shifts are made in seconds, and allows to make shifts of several days or years, see How to apply a time shift to the input MDC and noise frame files .

MDC time shift

// use this parameter to shift in time the injections (sec)
// use {0,0,0} to set mdc_shift to 0
// if {-1,0,0} the shift is automatically selected
// {startMDC, stopMDC, offset}
// see description in the method CWB::Toolbox::getMDCShift
mdcshift mdc_shift = {0, 0, 0};

Possibility to apply constant time shifts to injections (MDC). These shifts are made in seconds. This allows to increase statistics for efficiency curve running more simulation jobs, see How to apply a time shift to the input MDC and noise frame files .

Regulator¶

double delta = 1.0;      //  [0/1] -> [weak/soft]
double gamma = 0.2;      //  set params in net5, [0/1]->net5=[nIFO/0],
                         //  if net5>[threshold=(nIFO-1)] weak/soft[according to delta] else hard
bool   eDisbalance = true;

For the meaning of these parameter see What is the role of the regulators in 1G analysis and What is the role of the regulators in the 2G analysis.

Sky settings¶

The pipeline calculates for each event what is the most probable
location of the source in the sky. This is done scanning a discrete grid
of sky positions. cWB can implement two grid types: one is the Healpix
(What is HEALPix) and the other is a proper cWB
grid. The cWB grid has two possible coordinates: Earth fixes and
Celestial.
The Earth fixed has phi running on longitude with 0 on Greenwich and
theta running on latitude with 0 at North Pole and 180 at South Pole.
The Celestial is …
Sky resolution of cWB sky grid can be defined by the user, such as L
degrees. The angular difference between two consecutive points at the
same longitude is equal to L, but the difference between two consecutive
points at the same latitude depend on the latitude, such as DL =
L/cos(lat).
Healpix grid is more uniform in the sky. An example (of the
differences) between the two grids are here What is HEALPix
It is possible to limit the sky grid on limited region on the sky,
limiting the range of longitude and latitude, or creating a SkyMask,
putting a boolean 1/0 on the sky position in the grid additing which one
should be considered.

bool   EFEC   =   true;  // Earth Fixed / Selestial coordinates
size_t mode   =   0;     // sky search mode
double angle  =   0.4;   // angular resolution
double Theta1 =   0.;    // start theta
double Theta2 = 180.;    // end theta
double Phi1   =   0.;    // start theta
double Phi2   = 360.;    // end theta
double mask   = 0.00;    // sky mask fraction
char skyMaskFile[1024]="";
char skyMaskCCFile[1024]="";
size_t healpix= 0;       // if not 0 use healpix sky map (SK: please check if duplicated)

int Psave = 0;   // Skymap probability to be saved in the final output root file (saved if !=0 : see nSky)

long nSky = 0;   // if nSky>0 -> # of skymap prob pixels dumped to ascii
                 // if nSky=0 -> (#pixels==1000 || cum prob > 0.99)
                 // if nSky<0 -> nSky=-XYZ... save all pixels with prob < 0.XYZ...

double precision = 0.001; // Error region: No = nIFO*(K+KZero)+precision*E

size_t upTDF=4;              // upsample factor to obtain rate of TD filter : TDRate = (inRate>>levelR)*upTDF
char   filter[1024] = "up2"; // 1G delay filter suffix: "", or "up1", or "up2" (SK: may replace it with tdUP)

EFEC

Boolean selecting Earth coordinate (true) or Celestial coordinates (false) (DELETE??????)
mode

If set to 0, the pipeline consider the total grid. If set to 1 the pipeline exclude from the grid the sky locations with network time delays equal to an already considered sky location. This parameter should not be changed.
angle

Angular resolution for the sky grid, used for CWB grid.
Theta1 and Theta2

Latitute boundaries.
Phi1 and Phi2

Longitude boundaries.
skyMaskFile and mask
1G pipeline : skyMaskFile label each sky location with a probability value. The integral probability is equal to 1. The mask parameter selects the fraction of most probable pixels the pipeline should consider for the analysis. This uses Earth coordinates.

2G pipeline : File giving a number to each sky locations. If the number is different from 0, the sky location is applied. This uses earth coordinates. Alternatively to the file name (generic skymask) it is possible to use the built-in skymask. The built-in skymask is a circle defined by its center in earth coordinates and its radius in degrees.

The syntax is :
--theta THETA --phi PHI --radius RADIUS define a circle centered in (THETA,PHI) and radius=RADIUS THETA : [-90,90], PHI : [0,360], RADIUS : degrees
Example : sprintf(skyMaskFile,”–theta -20.417 –phi 210.783 –radius 10”);
skyMaskCCFile
File giving a number to each sky locations. If the number is different from 0, the sky location is applied. This uses celestial coordinates. Alternatively to the file name (generic skymask) it is possible to use the built-in skymask. The built-in skymask is a circle defined by its center in earth coordinates and its radius in degrees.

The syntax is :
--theta DEC --phi RA --radius RADIUS define a circle centered in (DEC,RA) and radius=RADIUS DEC : [-90,90], RA : [0,360], RADIUS : degrees
Example : sprintf(skyMaskCCFile,”–theta -20.417 –phi 240 –radius 10”);

To see how to define a skymask with a file see How to create a celestial skymask
healpix

Healpix parameter, if equal to 0 the pipeline uses cWB grid, is > 0 the pipeline uses Healpix
Psave

Skymap probability to be saved in the final output root file (saved if !=0 : see nSky)
nSky

this is the number of sky positions reported in the ascii file and (if Psave=true) in root.

If nSky = 0, the number o sky positions reported is such as the cumulative probabiltiy in the sky reach 0.99%. If this number is greater than 1000, the list is truncated at 1000.

if nSky>0 -> # of skymap prob pixels dumped to ascii

if nSky=0 -> (#pixels==1000 || cum prob > 0.99)

if nSky<0 -> nSky=-XYZ… save all pixels with prob < 0.XYZ…
precision

precision = GetPrecision(csize,order);

set parameters for big clusters events management

csize : cluster size threshold

order : order of healpix resampled skymap (<healpix)

default (0,0) = disabled

if enabled the skyloop of the events with volume>=csize is downsampled to skymap(order)
upTDF

…
filter

…

CED parameters¶

There are three parameters regarding CED:

bool cedDump     = false;   // dump ced plots with rho>cedRHO
double cedRHO    = 4.0;

cedDump

boolean value, if true CED pages are produced, otherwise not
cedRHO

CED pages are produced only for triggers which have rho > cedRHO

Output settings¶

There are different information and format styles that the pipeline can produce. Here are the parameters setting these.

unsigned int jobfOptions = CWB_JOBF_SAVE_DISABLE;   // job file options

bool dumpHistory = true;    // dump history into output root file
bool dump        = true;    // dump triggers into ascii file
bool savemode    = true;    // temporary save clusters on disc

jobfOptions
dumpHistory

Save in the output file all the parameters and configuration files used
dump

save the triggers information also in ASCII files in addition to ROOT files.
savemode

temporary save information about cluster on the disk, to save memory.

Working directories¶

The analysis needs a working dir where putting temporary files necessary for the analysis, called nodedir.

This dir is automatically chosen for ATLAS and CIT clusters, but for other clusters should be specified.

// read and dump data on local disk (nodedir)
char nodedir[1024] = "";
cout << "nodedir    : " << nodedir << endl;

The following directories show where putting results and various information about the analysis.
We suggest not to change it, however, for completeness we report the all directories.
The content of each directory is already explained in pre-production

char work_dir[512];
sprintf(work_dir,"%s",gSystem->WorkingDirectory());

char config_dir[512] = "config";
char input_dir[512]  = "input";
char output_dir[512] = "output";
char merge_dir[512]  = "merge";
char condor_dir[512] = "condor";
char report_dir[512] = "report";
char macro_dir[512]  = "macro";
char log_dir[512]    = "log";
char data_dir[512]   = "data";
char tmp_dir[512]    = "tmp";
char ced_dir[512]    = "report/ced";
char pp_dir[512]     = "report/postprod";
char dump_dir[512]   = "report/dump";
char www_dir[512];

Files list¶

These are informations about the list of frame files and data quality files.

Frame files:
```
// If all mdc channels are in a single frame file -> mdc must be declared in the nIFO position
char frFiles[2*NIFO_MAX][256];
for(int i=0;i<2*NIFO_MAX;i++) strcpy(frFiles,"");
// frame reading retry time (sec) : 0 -> disable
// retry time = frRetryTime*(num of trials) : max trials = 3
int  frRetryTime=60;

char channelNamesRaw[NIFO_MAX][50];
char channelNamesMDC[NIFO_MAX][50];
```
If we have N detectors, the [0,N-1] positions refers to detectors data frame files. The [N-1, 2N-1] are for MDC frame filesfor Simulation stage. If the frame file is the same for all MDC, it is sufficient to write only the N position.

The channel name of detector strain and MDC strain are respectively saved in channelNamesRaw and channelNamesMDC.

Sometimes the frames are not temporarily available for reading, if the pipeline is not able to read a frame, it retries after some seconds (…). After a number of trials equal to frRetryTime, the pipeline exit with an error.

Data quality

// {ifo, dqcat_file, dqcat[0/1/2], shift[sec], inverse[false/true], 4columns[true/false]}
int nDQF = 0;
dqfile DQF[20];

See data quality for details on how to write the data quality

Plugin¶

These are the parameters that regars Plugins

TMacro plugin;                // Macro source
TMacro configPlugin;          // Macro config
plugin.SetName("");
configPlugin.SetName("");
bool dataPlugin = false;      // if dataPlugin=true disable read data from frames
bool mdcPlugin = false;       // if mdcPlugin=true disable read mdc from frames
bool dcPlugin = false;        // if dcPlugin=true disable the build data conditioning

plugin: insert the Plugin source code
configPlugin: insert the Plugin configuration source code
plugin.SetName(“”);: insert the compiled Plugin code
configplugin.SetName(“”);: insert the compiled Plugin configuration code
dataPlugin: disable the reading of detector strain
mdcPlugin: disable the reading of MDC strain
dcPlugin: disable the conditioning of data (1G conditioning or 2G conditioning)

user_pparameters.C¶

The pipeline has a default parameter file called cwb_pparameters.C
which contains the list of needed variables for the analysis set at a
certain value.
The user can modify some of these values adding them in the
config/user_pparameters.C file.
We report here all the variable contained in the cwb_parameters.C
file, the user can change each of them accordingly to his/her
preferences.

This is the complete file:

cwb_pparameters.C

We divide the file in different sections for simplicity:

Frequency bands
Labels
Rho settings	(only for Background analysis)
Thresholds
Data Quality and veto
Benchmark parameters
Others

Frequency bands¶

The burst analysis is generally divided into 3 main frequency ranges,

[64; 200] Hz;
[200; 2048] Hz;
[1600; 5000] Hz.

Usually production stage is made into two bands (less and more than 2048 Hz), but postproduction is performed separately for each frequency band.

To select one frequency band just use one of the following:

#define PP_64_200_HZ     //for [64; 200] Hz
#define PP_200_2048_HZ   //for [200; 2048] Hz
#define PP_1600_5000_HZ  //for [1600; 5000] Hz

Only one choice should be selected.

If no choice is selected, results show the complete frequency band analysed in the production stage.

Moreover, it is possible to discard small frequency bands (for example to cut a persistent line). At this purpose, there are the two arrays lowFCUT and highFCUT.

int    nFCUT = 0;           // number of frequency cuts
double lowFCUT[100];        // low frequency cut
double highFCUT[100];       // high frequency cut

Example This code:

nFCUT = 2;
lowFCUT[0]=150;
lowFCUT[0]=151;
highFCUT[1]=235;
highFCUT[1]=242;

discard event with central frequency inside the two frequency bands: [150,151] and [235,242].

Rho settings¶

For Background results, the rho threshold is never applied, because it is the principal variable for calculating False Alarm Rate. However, there are some variables that defines the output behaviour of the results:

#define nRHO 150 //defines the range of the RHO statistic to be used in plots
double pp_rho_max = 10.;
int pp_max_nloudest_list = 25; // maximum number of loudest event in the report list
float T_out = 3.5;

nRHO and pp_rho_max define the rho ranges of rate vs rho figure and text files.

Rho min is usually 2 for 1G and 4 for 2G.

Rho step is usually 0.1 for 2G and 0.2 for 2G.

Rho max = Rho min + Rho step * nRHO.

The figure is zoomed at the value of pp_rho_max if it is less than Rho max.
pp_max_nloudest_list is the number of triggers reported at the bottom of web page.
T_out: Threshold on rho for the final trigger list

Labels¶

These are labels that appear in the web page:

#define RUN_LABEL ""
user_pp_label = "";

RUN_LABEL: Subtitle on the page
user_pp_label: postfix on the name of the directory containing the figures

obsolete:

pp_label = "";
char title[256]="";
char subtitle[256]="";
char  RunLabel[256]="";

Thresholds¶

This is a collection of thresholds on the trigger parameters:

network correlation coefficienct: netCC[0] > T_cor
subnet: netCC[3] > T_scc
energy disbalance: netED[0] < t_vED
penalty: penalty > T_pen

Only for simulation phase:

Amplitude correlation coefficient: rho[pp_irho ] > T_cut
Injection selection: abs(time[0]-time[nIFO]) < T_win

// obsolete parameters
T_cut_veto = 6.9;           // rho high frequency cut ...
T_CUT_veto = 6.9;        // rho low frequency cut ....

T_acor     = 0.0;        // output threshold
T_hrss     = 0.0;        // penalty threshold
i_hrss1    = 0;
i_hrss2    = 1;

T_rms      = 0.;         // penalty threshold

ratio_hrss  = 1;          //CORRECTION FREQUENCY
pp_freq_offset = 0.;      //CORRECTION FREQUENCY  (SIM)

Data Quality and veto¶

It is possible to apply Data Quality and Veto to reconstructed triggers. This is done using the same syntax as user_parameters.C. The only difference that the user can decide which DQ/Veto to apply:

#define CAT2_VETO
#define HVETO_VETO
#define CAT3_VETO
#define PEM_VETO

 // {ifo, dqcat_file, dqcat[0/1/2], shift[sec], inverse[false/true], 4columns[true/false]}
  int nDQF = 0;
  dqfile DQF[20];

Selecting one or more of the define above, it is possible to apply DQ/Veto, according to how the file is defined in the user_pparameters.C, i.e. the 4th column, for instance:

{"V1", "input/S6A_OFFLINE_V1_DQCAT2SEGMENTS.txt", CWB_CAT2,  0., true, false},
{"V1", "input/S6A_OFFLINE_V1_DQCAT3SEGMENTS.txt", CWB_CAT3,  0., false, false},
{"V1", "input/V1_KW_HVETO_S6A.txt",               CWB_HVETO, 0., false, false},

Note: The application is different between CAT2 and the others. If a trigger is discarded by CAT2, it is deleted from the list, however, if the trigger is discarded by CAT3/HVETO/PEM, it is mantained in the list, just flagging it. See data quality for details on how to write the data quality

Benchmark parameters¶

There is the possibility to produce an integrated page with informations on finished/unfinished job and histograms of elapsed time and memoery usage of ech job, as produced by the command cwb_condor benchmark

pp_jet_benckmark = 0;
pp_mem_benckmark = 0;

pp_jet_benchmark and pp_mem_benckmark are related to the x-axis of the two histograms.

If set to 0, the integrated page is not produced.

If set to a value greater than 0, this is used as maximum value for x-axis.

If set to a value less than 0, the maximum value of x-axis is automatically set by the pipeline

Others¶

Some additional parameters :

hours: Bin size (in hours) for rate vs time plot
pp_eff_vs_thr: Used for ROC calculation

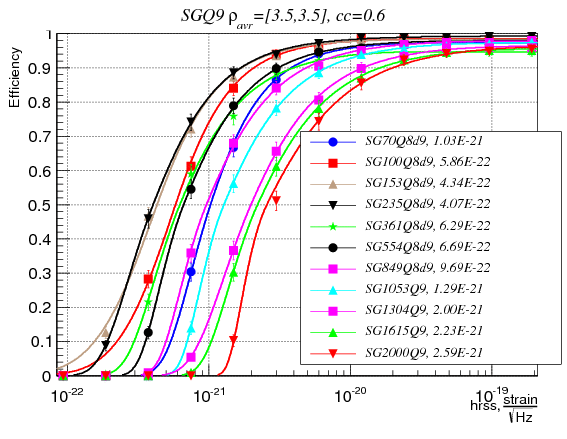

pp_show_eff_fit_curve: enable/disable draw efficiency fit curves

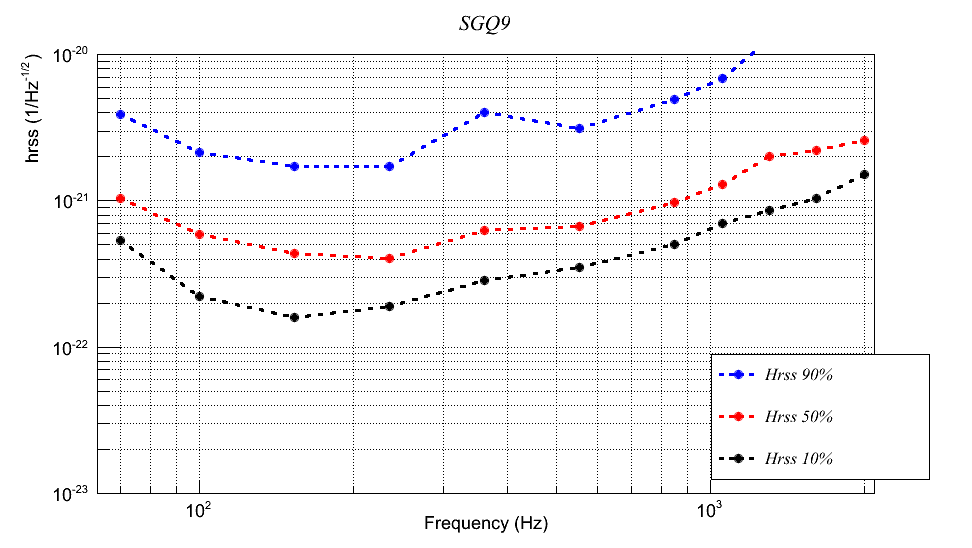

* true (default) : show fit curve, eff@hrss10/50/90 are derived from fit
* false          : show lines connecting points, eff@hrss10/50/90 are not showed

pp_sreport: array used to add auxiliary reports to the current report

* --link LINK   : www link of the auxiliary report
                  --link <tab> open a sub tab
                  --link </tab> close sub tab
* --label LABEL : report label - used in the html tabs
* --high HIGH   : report window height (optional : def=4000)
* --name NAME   : report html name (optional : def = "header.html, body.html")

pp_fad: enable/disable FAD report (default=”” -> disabled)

* --bkgrep  : directory of the background report
              - used to lacate rate_threshold_veto.txt and live.txt
* --hrss    : - if it is a number then it is used as normalization constant for all MDC types (def=0)
              - if =0 then hrss rescale is not applied
              - if it is a file then it is the list of hrss used for each MDC type
                format : for each line -> hrss
* --gfit    : true/false (def=false)
              - enable/disable fit in the output plots
* --rhomin  : minimum rho value selected for plots (default = 5)
* --nzbins  : integer number [<0, 0, >0] - (def=0)
              - if nzbins=0 the standard FAD statistic is used
              - if nzbin>0 the FAD statistic is computed until there are nzbins
                consecutive bins with zero events inside
              - if nzbin<0 the FAD statistic is computed
                with classical FAD and min-hold (un-biased FAD)
* --units   : K/M (def=M)
              - K -> Kpc,Kyr : M -> Mpc,Myr
* --distr   : formula/mdc  (def=MDC)
              - radial distribution is computed from formula or from mdc injections
* --nbins   : number of bins used in hist to computed
              the radial distribution from the mdc injections
* --header  : true/false  (def=false)
              - if true -> add cwb header to fad html file
* --multi   : true/false  (def=false)
              if true -> FAD multi plot for each mdc set are created and substituted
              in the sim report page to the eff_freq plots (def=false)

ROC are calculated for a unique factor of each waveform. The factor can be automatically calculated from the pipeline (the one nearest fo hrss50%) or set by the user.

Example:

pp_eff_vs_thr = "--mode auto --rho_min 6.";

set the automatic selection of the factors (setting a minimum of 6 in rho).

pp_eff_vs_thr = "--mode eff_threshold_factors.txt";

set the amplitude factors defined in the eff_threshold_factors.txt file

Main Steps¶

Prepare a dir
1. Choose a name: (ex: WORK_LABEL)
2. Create dir
```
cwb_mkdir WORK_LABEL
```
3. Put the user_parameters.C file inside the config directory.
4. Put all the needed files in the input directory
5. If you need some Plugins, put it on the user_parameters.C file
Run the pipeline
- run interactively a single job (JOBNUMBER):
```
cwb_inet JOBNUMBER
```
- run more jobs submitting on a cluster (using condor as batch system):
```
cwb_condor create
cwb_condor submit
```
Create figure of merits
1. Put the user_pparameters.C file inside the config directory.
2. Merge the files in output directory:
```
cwb_merge M1
```
3. Apply Data quality and Veto (optional)
```
cwb_setveto M1
```
4. Produce figure of merits and web pages
```
cwb_report M1 create
```

pre-production¶

Pre-production stage prepares the directory where all the scripts and files necessary to run the analysis are collected. First of all the directory name must be unambiguous. A possible criterion to set the name is to compose the following tags:

"DATA_TAKING_RUN"_"CALIBRATION_VERSION"_"ANALYSIS_TYPE"_"MDC_TAG"_"NETWORK"_"USER_TAG"_"ANALYSIS_RUN"

where :

DATA_TAKING_RUN          : S4, S5, S6A, ...
CALIBRATION_VERSION      : R2, R5, ...
ANALYSIS_TYPE            : SIM (simulation), BKG (time shift analysis)
MDC_TAG                  : (only for simulations) BRST, SGQ9, NINJA2, ...
NETWORK                  : network ifo list - L1H1, L1H1V1, ...
USER_TAG                 : TEST, PHASE_MISCALIB, ...
ANALYSIS_RUN             : run1, run10, ...

Example:

* timeshift analysis   : S6A_R4_BKG_L1H1V1_PHASE_MISCALIB_run1
* simulation           : S6A_R4_SIM_BRST_L1H1V1_PHASE_MISCALIB_run1

This name will be used for all the files produced automatically by the various Commands. The working environment is created by cwb_mkdir command, for instance:

cwb_mkdir WORK_LABEL

creates the a dir with name WORK_LABEL which contains the following subdirectories:

config:	cwb configuration files
input:	input data files
condor:	condor files (dag,sub)

tmp: dir for temporary job files
log: condor log files
output: output job files
merge: merge of output job files
report: dir for data to be pubblished on web
- - ced: dir for web pages created by Coherent Event Display
- - dump: dir for information files
- - postprod: dir for web pages with figure of merits
macro: user macros
data: user output job files

The sub-directories input and config (eventually macro) are the one which (usually) contains the necessary information to run the analysis. The command cwb_clonedir allows to take an existing working dir and copy the primary information (input/config/macro directories) to repeat the same analysis of the original dir (or eventually make minor changes).

config¶

In the config dir there are two files:

user_parameters.C.

parameter file for production stage

user_pparameters.C.

parameter file for post-production stage

These files contains the parameter values for the following stages (production and post-production).

Before proceeding with these two steps, be sure that these files are contain the right values.

Note: the pipeline automatically searches these two files. If you are interested to use different files for the same purpose, use the command cwb_setpars and cwb_setppars.

input¶

This directory contains informations useful on the analysis, it can be used also to store particular interesting files not stricly used for the analysis. The standard files contained in this dir are reported in the following list.

Note: Despite of files contained in the config directory, it is not necessary to put inside the dir input all the following files. It is just a convention.

strain frames

list of strain frame files

mdc frames

list of mdc frame files & injection list

data quality

data quality files

sky mask

sky mask used to select sky positions to be analized

An example of input directory is in the example: S6A_R4_SIM_BRST_L1H1V1

strain frames¶

Data of GW detectors are usually stored in the frame format. These
files are simple text files containing the complete list of frames files
of GW detector data.
To create a frame list, see How to make gw frame file list with
gw_data_find
However, the user can create by itself any frame list.

Once obtained the file list, see Files list.

Sometimes, it is possible that a single frame file is not temporanealy readable (so the analysis will be stopped). To avoid this problem, the reading function try to read up to 3 times every 60 seconds. If after the third temptative the files is not still readable, the analysis is stopped (and can be resumed later).

mdc frames¶

This is a similar list as strain frames but it is referred to MDC strain. It is a unique list containing all the MDC channels for all detectors.

To obtain this list, there are the same tools as strain frames.

Moreover, together to the frame list, cWB needs also a Log file, which contains specific informations for each injected MDC (arrival timing at earth and each detector, source direction, hrss, antenna patterns, …). It is used by the pipeline to store informations related to the MDC in the final root file.

MDC frame and log files are produced with BurstMDC. O2 AllSky MDC files documentation produced with BurstMDC are liksted in the following link : https://wiki.ligo.org/Bursts/O2-Allsky

Once obtained the MDC files, see Files list.

sky mask¶

The default analysis spans over all the sky to estimate candidate events. (For the grid resolution see Sky settings). It is possibile, however, to specify a resctricted region of the sky, for istance for extrig searches. This is done by defining a sky mask, which is simply a collection of 1/0 values for each sky position.

There are 2 type of skymask maps:

earth coordinates

use parameter skyMaskFile
celestial coordinates

use parameter skyMaskFileCC

A script that construct a tyipical sky map is here:

trunk/tools/cwb/tutorials/CreateSkyMask.C

A script that construct a tyipical celestial sky map is here:

trunk/tools/cwb/tutorials/CreateCelestialSkyMask.C

Data Quality¶

Data qualities are a collection of time periods were the detectors are in good/bad conditions for scientific purpouses. According to LIGO-Virgo policy, there are different Data Quality definitions:

Science segments (Category 0): Detector locked (i.e. in data taking)
Category 1: Detector not running in proper configuration
Category 2: Well understood instrumental problems
Category 3: Incompletely understood issues, not sure that are affecting the data
Category 4: hardware injections
PEM : Physical Environment Monitoring
HVETO : most significant correlation between an auxiliary channel and DARM_ERR

The parameters used to define the data quality in production stage are in Files list.

The parameters used to define the data quality in poost-production stage are Data Quality and veto.

The definition structure is the same in the two files:

ifo name of ifo as declared in the ifo parameter
dqcat_file path of data quality file
dqcat dq quality category [see below]
shift time shift applied to data quality (default = 0 sec)
inverse [false/true] if false then ranges declared in dqcat_file are the good periods (see below)
4columns [false/true] defines the format of the dqcat_file

false -> each column contains : start stop true -> each column contains : index start stop stop-start NOTE : only start,stop are used

dqcat used by cWB are:

CWB_CAT0 science mode segments
CWB_CAT1 DQ_CAT1/CAT4 periods
CWB_CAT2 DQ_CAT2
CWB_CAT3 DQ_CAT3
CWB_HVETO hveto
CWB_PEM pem vetoe
CWB_EXC taking in account times in two detectors network not included in three detector network
CWB_USER user define vetoes

inverse is quite controversial, especially because the it has: different meaning in user_parameters.C and user_pparameters.C files:

user_parameters.C

false: the file containes period to be analyzed

true: the file containes period to be discarded
user_pparameters.C (CAT2)

false: the files contains period to be accepted

true: the files contains period to be discarded
user_pparameters.C (CAT3)

false: the files contains period to be discarded

true: the files contains period to be accepted

Examples:

Production Stage :

// dq file list
// {ifo, dqcat_file, dqcat[0/1/2], shift[sec], inverse[false/true], 4columns[true/false]}
nDQF=12;
// dqf is a temporary array
dqfile dqf[nDQF]={
       {"L1" ,"input/S6A_OFFLINE_L1SCIENCE.txt",         CWB_CAT0, 0., false, false},
       {"L1" ,"input/S6A_OFFLINE_L1_DQCAT1SEGMENTS.txt", CWB_CAT1, 0., true,  false},
       {"L1" ,"input/S6A_OFFLINE_L1_DQCAT2SEGMENTS.txt", CWB_CAT2, 0., true,  false},
       {"L1" ,"input/S6A_OFFLINE_L1_DQCAT4SEGMENTS.txt", CWB_CAT1, 0., true,  false},
       {"H1" ,"input/S6A_OFFLINE_H1SCIENCE.txt",         CWB_CAT0, 0., false, false},
       {"H1" ,"input/S6A_OFFLINE_H1_DQCAT1SEGMENTS.txt", CWB_CAT1, 0., true,  false},
       {"H1" ,"input/S6A_OFFLINE_H1_DQCAT2SEGMENTS.txt", CWB_CAT2, 0., true,  false},
       {"H1" ,"input/S6A_OFFLINE_H1_DQCAT4SEGMENTS.txt", CWB_CAT1, 0., true,  false},
       {"V1" ,"input/S6A_OFFLINE_V1SCIENCE.txt",         CWB_CAT0, 0., false, false},
       {"V1" ,"input/S6A_OFFLINE_V1_DQCAT1SEGMENTS.txt", CWB_CAT1, 0., true,  false},
       {"V1" ,"input/S6A_OFFLINE_V1_DQCAT2SEGMENTS.txt", CWB_CAT2, 0., true,  false},
       {"V1" ,"input/S6A_OFFLINE_V1_DQCAT4SEGMENTS.txt", CWB_CAT1, 0., true,  false}
      };
// temporary arrary is copied to the final array DQF
for(int i=0;i<nDQF;i++) DQF[i]=dqf[i];

Post-Production Stage :

const int nvdqf=4;
dqfile vdqf[nvdqf] = {
       {"V1", "input/V1_KW_HVETO_S6A.txt",               CWB_HVETO, 0., false, false},
       {"L1", "input/S6A_OFFLINE_L1_DQCAT3SEGMENTS.txt", CWB_CAT3,  0., false, false},
       {"H1", "input/S6A_OFFLINE_H1_DQCAT3SEGMENTS.txt", CWB_CAT3,  0., false, false},
       {"V1", "input/S6A_OFFLINE_V1_DQCAT3SEGMENTS.txt", CWB_CAT3,  0., false, false}
      };

condor¶

The condor directory stores the files for the submission of jobs. After the command cwb_mkdir The command cwb_condor, associated to different instructions, is used to manage this procedure. In particular:

cwb_condor create

creates in the condor dir two files:

WORK_LABEL.dag
WORK_LABEL.sub

which contains the necessary information to submit via condor a job for each segment in the list. To submit jobs:

cwb_condor submit

or alternatively, enter in the dir condor and use the specific condor commands:

cd condor
condor_submit_dag WORK_LABEL.dag

production¶

This stage is the main part of the analysis, i.e. the extraction of
interesting triggers from the data.
The analysis divides the total observation time into small
sub-periods (segments) to be analysed separately (jobs).
The segment lenght is defined in the
user_parameters.C, in particular in
the Job settings section. The total list of segment
is defined according to data quality. There are two
steps in the analysis addressing the way time periods are considered.

Segment list is made on period surviving DQ_CAT0, DQ_CAT1 and DQ_CAT4 In these period the pipeline make data conditioning and whitening procedure.
Trigger extraction is made on period surviving DQ_CAT0, DQ_CAT1, DQ_CAT4 and DQ_CAT2

Using batch system utility, it is possible to spread the jobs on a cluster of nodes and execute them in parallel, see cwb_condor (See also condor).

If you are interested to execute a single job (for example for testing purposes) on the working shell, instead of using batch system submission, use cwb_inet.

For each job, the pipeline produces a .root file which is stored in the output directory.

post-production¶

In this stage the user can produce figure of merits and text files
from the list of triggers generated during the production step.
Particularly, events are chosen applying selection thresholds on
trigger parameters.
The final output is shown on web pages.

The post-production steps are the following:

Decide thresholds

Prepare the user_pparameters.C in the config directory with all the necessary information.
Merging

This process merges the results files contained in the output directory. Files produced in this stage are contained in the merge directory and are properly labeled to distinguish different merging process.

The following are typical merged files (in this case the label is M1):
- merge_WORK_LABEL.M1.lst

  file listing all root files inside output directory used for merging
- wave_WORK_LABEL.M1.root

  file containing triggers information
- live_WORK_LABEL.M1.root

  file containing livetime informations referred to lags (only in production mode)
- mdc_WORK_LABEL.M1.lst

  file containing MDC informations (only in simulation mode)
The command for merging is cwb_merge.
```
cwb_merge M1
```
Apply data quality and veto (optional)

It is possible to apply one or more Data Quality/Veto files to the central times of triggers extracted in the production stage. If the trigger is accepted/discarded by Data Quality it is flagged 1/0.

See user_pparameters.C for the use and definition of Data Quality files.

The command for this step is cwb_setveto.
```
cwb_setveto M1
```
(please note that all steps related to the same set of results must report the same label - M1 in this case)

after the application of this command we will have new .root file in the merge directory, with an additional string addressing the DQ/Veto used. A typical label could be:
```
M1.V1hveto_V1cat3
```
Web page production

Produces a web page containing figures of merit. Web pages are stored in report/postprod directory.

The command is cwb_report followed by the proper label as for previous steps:
```
cwb_report M1 create
```
or
```
cwb_report M1.V1hveto_V1cat3 create
```
depending on the application or not of data quality.

Trigger parameters¶

The pipeline gives for each estimated triggers a set of parameters.
Some of them are single values, other are arrays. Some arrays report
the information for each detector, other report information obtained
with different statistics or conditions.
There are three different trees which store information:

Waveburst tree:	List of triggers
liveTime tree:	information on livetime in background analysis
mdc tree:	information on injected MDC in simulation analysis

Waveburst tree¶

The Waveburst tree contains an event for each trigger extracted by the pipeline.

Some information in the tree are reported only for Simulation stage (in this case it is expressely written).

Some information in the tree are relative only to CBC type analysis (in this case it is expressely written)

A Bit of theory

We define the following quantities:

Scalar product ( , )
i: time-frequency pixel
x[i]: data vector
s[i]: reconstructed vector response
u[i]: unity vector along s[i]; u[i]=s[i]/|s[i]|
E: total cluster energy,
Em: sum of maximum energies in the detectors,
L: energy of reconstructed signal, L = sum_i{|s[i]|^2}
Lij: off-diagonal elements of energy of L matrix,
Ec/ecor: coherent energy - sum of the off-diagonal terms Lij of L

This statistic is stored in the waveburst tree as ecor.
ECOR: reduced correlate energy - sum of the Lij*rij

where : rij = Lij/(2*sqrt(Lii*Ljj))
N: null energy, N = E-L +2*m
ED - energy dis-balance,
K - number of detectors
n: multiresolution layer number

nevent	progressive event number associated to the events reconstructed in the job segment
ndim	number of detectors in the network
run	job number
rho	effective correlated SNR: rho[0] = sqrt(ecornetcc[0]/K), used in 1G rho[1] = sqrt(ECORnetcc[0]/K), used in 1G rho[0] = sqrt(Ec/(K-1)), used in 2G rho[1] = sqrt(Ecnetcc[0]/(K-1)), used in 2G rho[1] = rho[0]chirp[3]*sqrt(chirp[5]), used in 2G for pattern!=0
netCC	Network correlation coefficient: netcc[0] = ecor/(N+ecor) : used in 1G netcc[1] = ECOR/(N+ECOR) : used in 1G netcc[0] = Ec/(\|Ec\|+N), used in 2G netcc[1] = Ec*netcc[0]/(\|Ec\|+N), used in 2G
netED	network energy disbalance: netED[0]: total; netED[1]: only 00-phase; netED[2]: only 90-phase
penalty	penalty factor
gnet	network sensitivity
anet	network alignment factor
inet	network index
likelihood	network likelihood: L
ecor	sum of the off-diagonal term of likelihood matrix: D
ECOR	effective correlated energy
factor	amplitude factor of injected signal in Simulation stage (respect to the basis one)
distance	…
mchirp	Referred to a chirp-like signal, values calculated fitting the time-frequency pixels with the characteristic time-frequency chirp behaviour: f = t^(-3/8) chirp[0]:injectied chirp mass; chirp[1]/[2]:reconstructed chirp mass/related error; chirp[3]/[4]:reconstructed chirp time/related error; chirp[5]:chi quadro related to the fitting procedure
norm	norm Factor or ellipticity in 2G (pattern!=0) is the ratio between the reconstructed energy and the total energy over the all levels
usize	cluster union size
ifo	array which list detectors in the network
eventID	event ID
type	Array: type[1] is an assigned number for the injected waveform in the Simulation stage.
rate[0,ndim-1]	array for the rate of the wavelet decomposition level selected to reconstruct the signal note : array contains the same values, use only rate[0]
volume	number of wavelet time-frequency pixels componing the events (core+halo)
size	number of wavelet time-frequency pixels componing the events (core)
lag	array of time shifts (s) applied to each detectors.
slag	array of segment shift applied to each detectors
phi	array of trigger latitude. phi[0]: estimated direction (CWB coordinates) phi[1]: injected direction (CWB coordinates) phi[2]: estimated direction (Celestial coordinates - RA) phi[3]: estimated direction using detection statistics (CWB coordinates)
theta	array of trigger longitude. theta[0]: estimated direction (CWB coordinates) theta[1]: injected direction (CWB coordinates) theta[2]: estimated direction (Celestial coordinates - DEC) theta[3]: estimated direction using detection statistics (CWB coordinates)
psi	estimated polarization angle
iota	estimated inclination angle of the source
bp[0,ndim-1]	array of F_+ for each detector at estimated direction
*bp[dim,2ndim-1]**	array of F_+ for each detector at injected direction (Simulation stage)
bx[0,ndim-1]	array of F_x for each detector at estimated direction
*bx[dim,2ndim-1]**	array of F_x for each detector at injected direction (Simulation stage)
Deff	effective range for each detector
mass	injected mass values of a binary system.
spin	injected spin parameters of a binary system
snr	array of SNR^2 for each detector
xSNR	data-signal correlation (x[i],s[i]) for each detector
sSNR	array of energy of reconstructed responses
null	array of Null Energy for each detector
strain	array of reconstructed and injected strain. strain[0] is defined as: sqrt[sum_over_detector(hrss_rechrss_rec)] where the sum is made on the reconstructed hrss strain[1] is defined as: sqrt(hrss_inj_plushrss_inj_plus+hrss_inj_cross*hrss_inj_cross)
hrss	array of reconstructed hrss[n] for each detector n
inj_hrss	arry of injected hrss[n] for each detector n (Simulation stage)
noise	array of noise RMS for each detector
segment	start[n] and stop[n] of analyzed segment for each detector n
start	array of minimum times associated to the time-frequency map pixels for each detector
time	array of central times of the event for each detector
stop	array of maximum times associated to the time-frequency map pixels for each detector
inj_time	array of injected times of the events for each detector (Simulation stage)
left	array of differences between event start and segment start times for each detector
right	array of differences between segments stop and event stop times for each detector
duration	duration[0] : energy weghted duration estimated in time/freq domain for all resolutions duration[1] : difference between event stop and start
frequency	frequency[0] : central frequencies of the event computed from the reconstructed waveform frequency[1] : energy weghted central frequency estimated from in time/freq domain for all resolutions
low	low[0] : minimum frequency associated to the time-frequency map pixels
high	high[0] : maximum frequency associated to the time-frequency map pixels
bandwidth	bandwidth[0] = energy weghted bandwidth estimated in time/freq domain for all resolutions bandwidth[1] = difference between event high and low
iSNR	injected snr^2 waveform (Simulation) It is computed in the frequency range [fLow, fHigh] and time range is defined by the one which contains the 99.9% of the energy and must be : [inj_time-iwindow/2, inj_time+iwindow/2]
oSNR	reconstructed snr^2 waveform (Simulation) It is computed according the iSNR rules and the time range is the intersection with the injected signal.
ioSNR	is the cross correlation at time delay=0 between injected and reconstructed waveforms (Simulation) It is computed according the iSNR rules and the time range is the intersection with the injected signal. The quantity iSNR+oSNR-2*ioSNR is used to compute the residual energy between injected and reconstructed signal
netcc	netcc[0]: network correlation coefficient
neted	neted[0]: network energy disbalance
ndm	network data matrix
erA	array of Error Regions: sum of area of the sky pixels corresponding to certain conditions (the reported value is the sqrt of the area) erA[0] : Sum of area of the sky pixels with statistical probability greater than the one related to injected position (the reported value is the sqrt of the area), this quantity is computed only for simulation runs erA[1-9] : Sum of sky pixels area with interated sky probability equal to 10%,…,90% (the reported value is the sqrt of the area) erA[10] : probablity associated to erA[0], this quantity is computed only for simulation runs
sky_res	sky resolution between two near discrete positions
map_lenght	number of points reported in the map lenght. This report sky positions ordered by their probability values. The map reports for each sky location: - skyID: a progressive number - theta: Longitude in Earth coordinate - DEC: Declination - step: sky resolution with the consecutive location at same phi - phi: Latitude in Earth coordinate - R.A: Right ascension - step: sky resolution with the consecutive location at same theta - probability: probability values - cumulative: sum of probability from first row to this one The lists ends when the cumulative reach a values of 99%, or at maximum number of 2000 locations.

[Contents ][Index ]

liveTime tree¶

The tree liveTime contains an event for each time shift performed.

run	job number
gps	Gps at earth of the job segment
live	livetime: effective analyzed time after DQ_CAT2
lag	array of time shift for each detector [s]. if index < NIFO, lag[index] contains the shift of the detector index. lag[NIFO] is a progressive number to identify various time shift.
slag	Same as lag, but in this case it refers to job shifted, instead of time.
start	array of gps start time segment for each detector [s].
stop	array of gps stop time segment for each detector [s].

mdc tree¶

The mdc tree contains an event for each MDC injected.

ndim	number of detectors
run	job number
nevent	progressive event number associated to the injections in a job segment
eventID	same as nevent
type	assigned number for the injected waveform in the Simulation stage.
factor	amplitude factor of injected signal (respect to the basis one)
distance	injected distance in Mpc (optional)
mchirp	injectied chirp mass;
rp0	…
e0	…
gps	Gps at earth of the mdc
strain	Injected strain. Strain is defined as: sqrt[sum(hrss*hrss)] where the sum is made on the detectors
psi	polarization angle
iota	inclination angle of the source
phi	MDC latitude (CWB coordinates)
theta	MDC longitude (CWB coordinates)
bp	array of F_+ for each detector at injected direction
bx	array of F_x for each detector at injected direction
time	array of central times of the event for each detector
duration	injected duration
frequency	injected central frequency
bandwidth	injected bandwidth
hrss	injected hrss
Deff	…
mass	mass values of a binary system.
spin	spin of the injected waveform

Page showing results¶

This section collects all the information included in the
post-producton web pages.
There are two types of page according the the analysis: background
and simulation.
However, the top part of the page contains the same information type,
where as the bottom is different.

To produce these pages it is necessary to have a user_pparameters.C in the input directory. In this file are specified the selection cuts needed to produce the results, and some other informations stored in the web page (like the run name)

Web pages can be divided in different sections:

Title:	(common)
Run parameters: \| (common)
Post-production selection cuts: \| (common)
Simulation part:
Background part:

Title¶

This section shows:

Title: A title automatically created reporting:

Background/Simulation

Network

Frequency band

Subtitle: A sub-title chosen by the user (defind in user_pparameters.C)

Job Status: It is not necessary to produce a page only if all jobs are finished, but you can produce also intermediate results.

This line shows the percentage of done jobs used to produce the page. (Automatic)

It is of the form Ntot/(Nexp) - Percentage where:

- Ntot: number of merged files;

- Nexp: number of expected files.

For Simulation stage, Nexp is written as: (NFactor*Njobs)

Run parameters¶

This section report some information about the analysis stage.

Library information:

wat;

lal;

frameli;

root

Some parameters from user_parameters.C file:

pipeline (1G/2G);

search type (i,r,s,g,…);

subnet/delta/gamma;

bpp;

netRHO;

netCC

Resampling rate before the wavelet decomposition

Analyzed frequency band

Sky map segmentation and angular sky resolution (degree)

Time-frequency resolution of the used wavelet decomposition levels

LVC-Virgo cluster and working dir

cwb production parameters: standard file for production stage, it contains all the parameters needed from the analysis in a defined value.

user production parameters: file for production stage modified by the user. It is a selection of parameters from the previous file, overwritting the selected values with new ones.

user production plugin: (where used) the plugin script eventually used (see Plugins)

user production plugin config: (where used) the plugin configuration script eventually used (see Plugins)

Post-production selection cuts¶

Here there is a list of threshold selection cuts applied on post-productions (Automatic), considering selected event parameters (see trigger parameters).

The syntax is

parameter long name : short name >/< value

An example:

network correlation coefficient: cc > 0.60

All the figures in the page show triggers after the application of these selection cuts. For background page the rho threshold is never applied, and the cc threshold is not applied for some plots.

After the selection cuts there are links to the post-production parameter files:

cwb post-production parameters: standard file for post-production stage, it contains all the parameters needed from the analysis in a defined value.

user post-production parameters: file for post-production stage modified by the user. It is a selection of parameters from the previous file, overwritting the selected values with new ones.

Simulation¶

Here there is an example of web page

The bottom part reports a collection of tables reporting efficiency information.
Each table refers to a different MDC family (families are defined in
the …), distinguished by titles like:
Detection efficiency for injections family name
In each table are reported the following columns:

A link reporting function parameters for each waveform (fit_par)

A figure reporting the efficiency value as a function of hrss for all waveforms. There is a legend reporting name waveform and relative x-value for which y-value is equal to 0.5 (hrss50%)

efficiency vs frequency: Figure reporting hrss10% (black), hrss50% (red), hrss90% (blue) for each waveform central frequency

Waveform information: For each waveform a row that reports:

Name

hss50% (calculated from the fit)

hrss90% (calculated from the fit)

Link to scatter plot of injected vs reconstructed hrss (one column for each detector) example

Link to histogram of the difference between reconstructed and injected time [s] example

Link to histogram of reconstructed frequency [Hz] example

Link to efficiency curve example

Link to efficiency curve text file (reporting x and y values) example

Background¶

Here there is an example of web page

The bottom part reports a collection of information and figures
grouped according their characteristics.
Some figures add information according to the possibility to apply
Data Quality in post-production stage. For these figures it is
expressely written below.
We can divide the page in the following sections.

Live time

Analysis live time for zero lag (no lags applied to detectors) and including the live time for each lag. There are three bullets:

Live time of zero lag in [s] and [days]

Example: Approximately 914992.00 sec = 10.59 days, zero lag
Live time of all lags in [s], [days], [years] and number of lags

Example: 168331232.00 sec = 1948.28 days = 5.3 years, 199 non-zero lags
Link of live time for each lag

For each detector reports also the time shift applied of the written lag

Detector statistic distribution

Some plots on the most interesting trigger parameters used for selection cuts: rho and netcc. There are the plots:

rho vs subnet: on y-axis the rho and on x-axis the subnet. This plots is made without considering the rho and cc selection cuts.
rho vs vED: on y-axis the rho and on x-axis the vED. This plots is made without considering the rho and cc selection cuts.
rho vs cc: on y-axis the rho and on x-axis the netcc. This plots is made without considering the rho and cc selection cuts.
rho distributions: Histograms of rho. In green without applying netcc cut, in red applying netcc, in black after post-production data quality veto (if applied).
rate vs rho: cumulative curve of rate vs rho. On y-axis the rate of event with rho > x-value. If post-production data quality are applied, in red the same curve considering only events surviving cat3.
rate vs rho, green: no multiplicity: cumulative curve of rate vs rho. On y-axis the rate of event with rho > x-value. Black is the same as previous curve. Green is the curve discarding events due to non indipendent lags.

Rates

Given a certain set of lags with live time T [s], the algorithm give a number N of trigger. Rate is defined as the fractio N/T [Hz]. There are four plots:

Detector fraction: this plot show what is the detector with biggest SNR for each trigger, as a function of time. It is composed of N histograms (N = detector number), each reports on y-axis the percentage of events which has the biggest SNR related to that detector. X-axis is time in day/month,
live vs lag: Live time [s] as a function of lags. For x-axis, same as before.
rate vs day: event rate [Hz] for each day [day/month]. In black is the total event number, in red after applying …, in green (if applied) after post-production data quality.
rate vs lag: events rate [Hz] as a function of the various lags used. The progressive number on x-axis refers to the identificative number in Live time section.
Poisson check:

Time and frequency dependence

Two figures reporting the behavious of rho vs time (left) and
frequency (right).
Right figure is divided in coloured bin where z-axis report the
number of triggers in the rho-frequency bin.
Left figure report black points for each event with rh-time. X-axis
label is of the type day/month. If post-production data quality or veto
are applied, there are also red points of events tagged as vetoed.

Summary statistics

A link ((full list of events at rho > [ # ]) of trigger events sorted according to decreasing rho value, up to #, i.e. the T_out value from user_pparameters.C. Each row reports:

# -/+ - not passed/passed final selection cuts
#  1 - effective correlated amplitude rho
#  2 - correlation coefficient 0/1 (1G/2G)
#  3 - correlation coefficient 2
#  4 - correlation coefficient 3
#  5 - correlated amplitude
#  6 - time shift
#  7 - time super shift
#  8 - likelihood
#  9 - penalty factor
# 10 - energy disbalance
# 11 - central frequency
# 12 - low frequency
# 13 - high frequency
# 14 - duration
# 15 - number of pixels
# 16 - frequency resolution
# 17 - cwb run number
# 18 - time for H1 detector
# 19 - time for V1 detector
# 20 - SNR for L1 detector
# 21 - SNR for H1 detector
# 22 - SNR for V1 detector
# 23 - hrss for L1 detector
# 24 - hrss for H1 detector
# 25 - hrss for V1 detector
# 25 - PHI
# 26 - THETA
# 27 - PSI

as reported at the beginning of the file. Rows from 17 to 25 can be less or more according to detector number.

Below are reported the first 25 triggers from the previous list. The first column reports a progressive number which links on a CED web page of the event.

FAD howto¶

This howto illustrates the procedure to make the FAD for a standard all-sky search.

NOTE : The current FAD implementation is a preliminary version.

FAD needs both background and simulation.

Background

Background is produced following the standard procedure

The FAD uses the following files created by the background report command cwb_report:

- rate_threshold_veto.txt : cumulative False Alarm Rate (FAR) vs rho

- live.txt : livetime for each lag

The background report must be created selecting the appropriate RHO range.
The RHO range must include the loudest background event.
The range is defined in the
user_pparameters.C.

Example :

pp_rho_min=5;
pp_rho_max=25;

this setup creates the file “rate_threshold_veto.txt” from 5 to 25 with step 0.2

Simulation

For simulation the only requirement is the selection of a MDC population according to some radial distribution.

The way to select the radial distribution depends on the MDC types.

Burst : The Sky Distribution
CBC : LAL configuration - See the config plugins examples for LAL injections : The cWB-MDC engine

In general the simulation procedure is the standard one. The following procedure shows how to setup the simulation for a specific case : MDC=burst and simulation=4.

Simulation must be set to 4. See The cWB-MDC engine.

In this mode the factors parameters are a set of indexes which represent progressive numbers referring to the multiple trials

This example shows how the simulation parameters must be declared in the user_parameters.C file :

// simulation parameters
simulation = 4;                            // 1 for simulation, 0 for production
nfactor = 8;                               // number of strain factors
double FACTORS[] = {1,2,3,4,5,6,7,8};      // array of strain factors
for(int i=0;i<nfactor;i++) factors[i]=FACTORS[i];

The generation of MDC is made using a special plugin :

CWB_Plugin_Sim4.C

while the definition of MDC set is made with a configuration plugin, for example :

CWB_Plugin_Sim4_BRST_Config.C

The plugin must be declared in the user_parameters.C in the following way (Plugins) :

plugin = TMacro("macro/CWB_Plugin_Sim4.C");                      // Macro source
configPlugin = TMacro("macro/CWB_Plugin_Sim4_BRST_Config.C");    // Macro config

The configuration plugin must contains the following declarations :

the MDC types to be generated.

the list of HRSS50% used for the energy normalization

The energies of each MDC type are normalized in such a way to
produce approximately the same efficiency.
The list of energy to be used for the normalization is defined
with the vector mdcHRSS

Example : standard BRST set

// --------------------------------------------------------
// define the MDC hrss
// --------------------------------------------------------
int K=MDC.wfList.size();
std::vector<double> mdcHRSS(K);
for(int i=0;i<K;i++) {
  if(TString(MDC.wfList[i].name)=="GA0d1")                    mdcHRSS[i]=1.787e-21;
  if(TString(MDC.wfList[i].name)=="GA1d0")                    mdcHRSS[i]=9.499e-22;
  .............
  if(TString(MDC.wfList[i].name)=="WNB1000_1000_0d010")       mdcHRSS[i]=4.187e-21;
}

the sky distribution :

Example : distribution min distance : 0.2 Kpc, max distance : 40
Kpc, radial distribution : x+50./x

// --------------------------------------------------------
// define event sky distribution
// --------------------------------------------------------
par.resize(3);
par[0].name="entries";par[0].value=100000;                       // pool of events
par[1].name="rho_min";par[1].value=.2;                           // min rho  Kpc
par[2].name="rho_max";par[2].value=40.;                          // max rho  Kpc
MDC.SetSkyDistribution(MDC_RANDOM,"x+50./x",par,seed);

FAD

The creation of the FAD text files and plots is made using the
cwb_mkfad command.
This command must be executed under the simulation working directory
and it is necessary to have configured the
user_pparameters.C file.
The parameters specific for FAD are declared in the
pp_fad pp parameter

Examples :

For a generic simulation :

pp_fad  = " --bkgrep background-report-path";
pp_fad += " --distr mdc";
pp_fad += " --rhomin 6";
pp_fad += " --nbins 1000";
pp_fad += " --header true";

cwb_mkfad M1.C_cc2_gt_0d45 -1 unbiased_fad

For simulation=4 & bursts mdc :

pp_fad  = " --bkgrep background-report-path";
pp_fad += " --hrss hrss-file-path";
pp_fad += " --distr formula";
pp_fad += " --rhomin 5";
pp_fad += " --header true";

cwb_mkfad M1.C_cc2_gt_0d45 0 classical_fad

This command creates the text files and the fad.html which can be used by a web browser to display the FAD plots.

Combining FAD

The FAD produced by the different searches must be combined to produce
the joined False Alarm Probability (FAP).
The same injection population should be used to produce the visible
volume associated to each search.
For the all-sky burst searches the population is not well defined and
some critera must be used instead.
Currently the definition of the population is based on a selected
search and this choice is used for all searches.
The list of the energies used to rescale the searches must be
declared with the option hrss in the pp_fad pp parameter

The macro

CombineSearchesWithFAD.C is used to combine the FAD.

In the macro source there is the description of input parameters.

This is an example which shows how to use the macro.

root '$HOME_CWB/tutorials/CombineSearchesWithFAD.C("FAD.lst",5,40,7.35,"BigDog","S6A_S6B_S6D.png")'

where :

- FAD.lst is the list of FAD create for each seaches with the cwb_mkfad command.

- 5 is the minimum rho

- 40 is the maximum rho

- 7.35 a vertical line id drawed a reference

- "BigDog" is the label for the reference line

- report/dump/S6ABD_FAP/S6A_LT_GE_S6B_LT_GE_S6D_LT_GE.png is the output joined FAP plot

The following is an example of FAD.lst

# S6A_INET_LT_0d5
M1.C_cc2_gt_0d45_inet_lt_0d5.R_ISRA_i0cc70_i1rho56_win01_freq64_2048/fad_run1a1b1c1d1e/FADvsRHO_ALL.txt  \
M1.C_cc2_gt_0d45_inet_lt_0d5.R_ISRA_i0cc70_i1rho56_win01_freq64_2048/fad_run1a1b1c1d1e/PRODvsFAD_ALL.txt \
S6A_INET_LT_0d5    1       9

# S6A_INET_GE_0d5
M1.C_cc2_gt_0d45_inet_ge_0d5.R_ISRA_i0cc70_i1rho56_win01_freq64_2048/fad_run1a1b1c1d1e/FADvsRHO_ALL.txt  \
M1.C_cc2_gt_0d45_inet_ge_0d5.R_ISRA_i0cc70_i1rho56_win01_freq64_2048/fad_run1a1b1c1d1e/PRODvsFAD_ALL.txt \
S6A_INET_GE_0d5    1       1

# S6B_INET_LT_0d5
M1.C_cc2_gt_0d45_inet_lt_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/FADvsRHO_ALL.txt          \
M1.C_cc2_gt_0d45_inet_lt_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/PRODvsFAD_ALL.txt         \
S6B_INET_LT_0d5    2       9

# S6B_INET_GE_0d5
M1.C_cc2_gt_0d45_inet_ge_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/FADvsRHO_ALL.txt          \
M1.C_cc2_gt_0d45_inet_ge_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/PRODvsFAD_ALL.txt         \
S6B_INET_GE_0d5    2       1

# S6D_INET_LT_0d5
M1.C_cc2_gt_0d45_inet_lt_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/FADvsRHO_ALL.txt          \
M1.C_cc2_gt_0d45_inet_lt_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/PRODvsFAD_ALL.txt         \
S6D_INET_LT_0d5     600     9

# S6D_INET_GE_0d5
M1.C_cc2_gt_0d45_inet_ge_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/FADvsRHO_ALL.txt          \
M1.C_cc2_gt_0d45_inet_ge_0d5.R_ISRA_i0cc70_win01_freq64_2048/fad_run1a1b1c1d1e/PRODvsFAD_ALL.txt         \
S6D_INET_GE_0d5     600     1

Background Example¶

In this example we do time lags analysis of H1, L1 detectors data on
the so called O2 period.
NOTE : the test has been done with SVN version 5099.
All files used in this example are located in the cit cluster at :
/home/waveburst/REPORTS/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
In the appendix we report the list of commands used in the example
and the shell screen output of each command.
The list of the main commands used to produce the background are
reported in the
README.

PRE-PRODUCTION : Setup analysis¶

Check environment¶

We suppose to have already installed the pipeline (see CWB quick startup or How to install full CWB).

This means that if we simply write on our shell:

root -b -l

If you see something like this root_shell then the installation is right (to exit from ROOT type ’.q’ & return)

Check all the dumped informations : libraries paths and versions.

Create the Working Dir¶

Choose a name for your working dir and create it, for this case we choose: O2_BKG_L1H1_LF_WP10_tutorial_root6_run1:

cwb_mkdir O2_BKG_L1H1_LF_WP10_tutorial_root6_run1

and the following dir/files have been created : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/

config             cwb configuration files
input              input data files (frame and veto list files)
macro              user macros & plugins

condor             condor files (dag, sub)
log                condor log files
output             output job files
tmp                dir for temporary job files
data               user output job files

merge              merge of output job files
report             dir for data to be pubblished on web

Prepare needed files¶

For this analysis we need:

List of data frame files (mandatory)
Data Quality (not mandatory, but we know there are)
Production configuration file

For more information on how to obtain the frame files see:
How to make gw frame file list with gw_data_find
For Data Quality see: What are data quality? -
How to create data quality file list
For the complete list of parameters in the configuration file, see:
user_parameters.C
For a detailed description how the job segments are created, see:
How job segments are created
For a detailed description of the lags, see: What are lags and how
to use them
For a detailed description of the slags, see: What are super lags
and how to use them

We can copy the frame file and data quality lists from
/home/waveburst/REPORTS/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/input
to the input directory.

cd O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
cp /home/waveburst/REPORTS/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/input/* input/.

Then we select the interesting parameters for production and put in the file : config/user_parameters.C

The primary parameters are:

Network: H1L1
Job segment lenght (600 seconds)
Number of lags (590 with 1 second step)
Number of slags (5)
List of frame files and channel names
data quality files

The full list of the parameters used by CWB is declared in the default parameter file cwb_parameters.C (most of parameters have a default value and should not be changed by the user). For a description of the such parameters see : description of the parameters. The user_parameters.C contains only the user customization.

The final user parameters file used for this example is user_parameters.C

We can copy the configuration file from
/home/waveburst/REPORTS/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/config
to the config directory.

cd O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
cp /home/waveburst/REPORTS/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/config/* config/.

Now we have the following files on the dir : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/

Define and Compile Plugin¶

If the
config/user_parameters.C
contains a user cwb plugin then it must defined and compiled.
We use 2 system plugins:

CWB_Plugin_QLveto.C - ( Documentation )
CWB_Plugin_Gating.C - ( Documentation )

are defined in the directory trunk plugin directory tools/cwb/plugins

Since only one plugin can be defined in the user_parameters.C file
we must merge the 2 plugins, we must use the
cwb_mplugin command:

cwb_mplugin macro/CWB_Plugin_QLveto_Gating.C \
            $HOME_CWB/plugins/CWB_Plugin_QLveto.C $HOME_CWB/plugins/CWB_Plugin_Gating.C

The output is : macro/CWB_Plugin_QLveto_Gating.C

Then compile it :

root -l -b macro/CWB_Plugin_QLveto_Gating.C++

Ignore errors like this:

Error: Function CWB_Plugin_Template() is not defined in current scope  :0:
*** Interpreter error recovered ***

Some checks¶

In principle we are ready to start the analysis. We can perform some checks to see if the setting are right using the cwb_dump commands. For instance we can be interested in the list of available segments than can be analyzed:

cwb_dump sjob

which create the file:

O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.sjob

Or we can want the lag list:

cwb_dump lag

which create the file:

O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.lag

or the coincidence times between the 2 detectors after cat1 and cat2

cwb_dump dq

which create the files:
O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dq1
O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dq2

The last final check can be to run in interactive mode the analysis on a job (the first, for instance) using cwb_inet command. If the job goes to end, the configuration is right. NOTE: This could take some time…

cwb_inet 2

at the end you will see Job Terminated script and on data directory O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/data

appear the file:

wave_1167537000_600_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1_slag0_lag0_590_job2.root

The file contains all the reconstructed event informations - root format (as a TTree) : *.root

For a detailed description of the parameters reported in the root file see trigger parameters

PRODUCTION - Run the analysis¶

In principle we can do analysis on the shell 3722 times using cwb_inet commands. If the cluster has a batch system you can use it for submitting jobs, one for each segment. cWB is optimized for condor, but it can be used also with LSF (Ex: CNAF cluster).

Create Condor jobs¶

Once ready, we can submit using cwb_condor command. First create the condor files:

cwb_condor create

which creates two files in condor directory O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/condor

in details:

O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag         condor job list
O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.sub         condor definitions
cwb.sh                          shell script used by condor to make analysis
ced.sh                          shell script used by condor to produce ced of loudest events

and then we can submit job on cluster

Submit Condor jobs¶

cwb_condor submit

Now, just wait to the jobs finish…

use condor command to check the job status, for example :

to list job status :

condor_q user_name -nobatch

to remove a job :

condor_rm job_id

(see job list to get job_id)

It is possible to check the details of each job looking the condor log files under the log directory.
For example (job2) :

O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/log/2_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.out
O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/log/2_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.err

POST-PRODUCTION : Collection of results¶

Jobs produce files on the output directory O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/output

Using default parameters, for each job there is a txt and a ROOT file. The ROOT file is considered for the production of final results, the txt files are stored if need to access in text mode.

Merging files¶

The final goal is to produce a web page showing some figure of merits. For this, it is useful to merge all the ROOT files in output directory in a single file, using cwb_merge command:

cwb_merge M1  '--nthreads 8'

M1 is a label identifing the merging. This command produces 3 files on merge directory
O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/merge

in details:

merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.lst     the list of merged files
wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root     collection of trigger parameters
live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root     (only for background) collection of job informations (livetime, lags, ...)

Once obtained the merged file, we can produce the web page with the collection of figure of merits.

First of all we need a user_pparameters.C file where setting selection cuts and other information for the production of web pages. For this case the file is located here: config/user_pparameters.C

Apply vetoes¶

Note that we have selected the possibility to apply data quality and/or veto to produced triggers:

#define HVETO_VETO
#define CAT2_VETO

and the corresponding DQ/veto files:

dqfile vdqf[nvdqf] = {
      {"L1" ,"/home/waveburst/TUTORIALS/O2/DQ/O2_CO1_170104_170123/L1Cat2.txt",   CWB_CAT2, 0., true,   false},
      {"H1" ,"/home/waveburst/TUTORIALS/O2/DQ/O2_CO1_170104_170123/H1Cat2.txt",   CWB_CAT2, 0., true,   false},
      {"L1" ,"/home/waveburst/TUTORIALS/O2/DQ/O2_CO1_170104_170123/HVETO_L1_ANALYSIS3_SEGMENTS_MERGED.txt",   CWB_HVETO, 0., false,   false},
      {"H1" ,"/home/waveburst/TUTORIALS/O2/DQ/O2_CO1_170104_170123/HVETO_H1_ANALYSIS3_SEGMENTS_MERGED.txt",   CWB_HVETO, 0., false,   false},
    }

The DQ/veto application is done with cwb_setveto command.

cwb_setveto M1

(be sure to use the same label as previous command).

Then on the merge dir O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/merge there are two additional files:

cwb_user_parameters.C

wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root
live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root
merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.lst

wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root

Apply cuts¶

Now we can apply cwb_report command.
This command applies thresholds on tree leaves to select events with
certain characteristics defined by the user.
To know what is the right label:

cwb_merge list

output:

--------------------
List of merge labels
--------------------

- M1
- M1.V_cat2LH_hvetoLH

Chosing the second one:

cwb_setcuts M1.V_cat2LH_hvetoLH "--tcuts bin1_cut --label bin1_cut"

The bin1_cut is label which identify the cuts rules and it is defined (LH_BURST_LF_PP_Cuts.hh) in the user post-production file : config/user_pparameters.C

Web page production¶

Now we can produce web pages. In principle, we can decide to do it for both ROOT files in merge directory: applying or not applying DQ/veto. This depends on which label we use with cwb_report command. We select to produce results for the triggers applying DQ.

To know what is the right label:

cwb_merge list

output:

--------------------
List of merge labels
--------------------

- M1
- M1.V_cat2LH_hvetoLH
- M1.V_cat2LH_hvetoLH.C_bin1_cut

Chosing the third one:

cwb_report M1.V_cat2LH_hvetoLH.C_bin1_cut create

This command create non-zero lag background report.

If you want to create the zero-lag report do :

cwb_report M1.V_cat2LH_hvetoLH.C_bin1_cut create 0 0

If you want to create a specific lag_number slag_number report do :

cwb_report M1.V_cat2LH_hvetoLH.C_bin1_cut create lag_number slag_number

The web page¶

The web page of the final report is :
report
The web data files are produced under the directory :
O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data
and can be view with a web browser at the following link : web report
link

The script produces two more files under the condor directory :

O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/condor

condor/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024.ced.dag
condor/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024.ced.sub

These are condor files necessary to produced the CED of the background loudest events (see the list on the bottom of web report page).

To start the CED production do :

cwb_condor submit condor/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024.ced.dag

The output CED are stored under the “report/ced” directory and can be accessed using the links reported on the left of loudest event listed in the web page.

This is the CED of the loudest event : CED link

How to make a CED of a detected event¶

To production of the CED of a detected event can been done in batch or in interactive mode.

In the batch mode the CED are produced during the processing, to enable it the following parameters must be declared in the user_parameters.C configuration file :

cedDump   = true;            // dump ced enabled
cedRHO    = 4.0;             // dump ced plots with rho>cedRHO

To produce CED in interactive mode the command cwb_inet must be used :

cwb_inet job_number gps_time_of_the_first_detector true 0 lag_number

Ex : to produce the CED of the loudest event reported in the background page : web report link do:

cwb_inet 11385 0 ced 0 88

where 11385 is the run number and 88 is the lag number
NOTE : the parameter must be set cedRHO less than the rho value of the detected event
The final ced is stored under the data directory.
To make ced visible from web do :

mv data/ced_1168134000_600_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1_slag4_lag88_1_job11385 report/ced/

and can be view with a web browser at the following link : web CED link

APPENDIX : Output on shell / Web pages¶

We report here the output on shell for each command described in this section (see README):

root logon: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 ]$ root
*** DISPLAY not set, setting it to 151.95.123.14:0.0

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

cwb [0]

cwb_clonedir: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 BKG]$ cwb_clonedir O2_BKG_L1H1_LF_WP10_tutorial_run1 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1 '--output links --jstage  LIKELIHOOD'
Warning in <TApplication::GetOptions>: macro ./config/user_parameters.C not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : BKG
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_clonedir.C...
O2_BKG_L1H1_LF_WP10_tutorial_run1 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/FixUserParametersROOT6.C("O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/config/user_parameters.C","p")...
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/FixUserParametersROOT6.C("O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/config/user_pparameters.C","pp")...
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_mkdir.C...

File/Dir /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1 already exist
www report directory must be unique !!!
Do you want to overwrite it ? (y/n) y


mkdir -p tmp
mkdir -p data

dir "config" already exist
Do you want to remove the files ? (y/n)
mkdir -p config

dir "input" already exist
Do you want to remove the files ? (y/n)
mkdir -p input
mkdir -p output

dir "macro" already exist
Do you want to remove the files ? (y/n)
mkdir -p macro
mkdir -p report

dir "/usr1/waveburst" already exist
Do you want to remove the files ? (y/n)
mkdir -p /usr1/waveburst
mkdir -p log
mkdir -p condor
mkdir -p merge
mkdir -p report/ced
mkdir -p report/postprod
mkdir -p report/dump

dir "/home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1" already exist
Do you want to remove the files ? (y/n)
mkdir -p /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
ln -sf /home/waveburst/git/cWB/library/tools/cwb/scripts/cwb_loudest.sh condor/loudest.sh
ln -sf /home/waveburst/git/cWB/library/tools/cwb/scripts/cwb_ced.sh condor/ced.sh
ln -sf /home/waveburst/git/cWB/library/tools/cwb/scripts/cwb_net.sh condor/cwb.sh
ln -sf /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1//report/postprod /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
ln -sf /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1//report/ced /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
ln -sf /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1//report/dump /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_clonedir.C...
cwb_clonedir : create symbolic links in output dir ...
0/3722
100/3722
200/3722
300/3722
400/3722
500/3722
600/3722
700/3722
800/3722
900/3722
1000/3722
1100/3722
1200/3722
1300/3722
1400/3722
1500/3722
1600/3722
1700/3722
1800/3722
1900/3722
2000/3722
2100/3722
2200/3722
2300/3722
2400/3722
2500/3722
2600/3722
2700/3722
2800/3722
2900/3722
3000/3722
3100/3722
3200/3722
3300/3722
3400/3722
3500/3722
3600/3722
3700/3722
Number of new links 3722/3722

The new working dir is :  O2_BKG_L1H1_LF_WP10_tutorial_root6_run1

cwb_mkdir: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 BKG]$ cwb_mkdir O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : BKG
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_mkdir.C...



mkdir -p O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
mkdir -p tmp
mkdir -p data
mkdir -p config
mkdir -p input
mkdir -p output
mkdir -p macro
mkdir -p report

dir "/usr1/waveburst" already exist
Do you want to remove the files ? (y/n)
mkdir -p /usr1/waveburst
mkdir -p log
mkdir -p condor
mkdir -p merge
mkdir -p report/ced
mkdir -p report/postprod
mkdir -p report/dump

dir "/home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1" already exist
Do you want to remove the files ? (y/n)
mkdir -p /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
ln -sf /home/waveburst/git/cWB/library/tools/cwb/scripts/cwb_loudest.sh condor/loudest.sh
ln -sf /home/waveburst/git/cWB/library/tools/cwb/scripts/cwb_ced.sh condor/ced.sh
ln -sf /home/waveburst/git/cWB/library/tools/cwb/scripts/cwb_net.sh condor/cwb.sh
ln -sf /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/postprod /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
ln -sf /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/ced /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
ln -sf /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/dump /home/waveburst/public_html/reports/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1

The new working dir is :  O2_BKG_L1H1_LF_WP10_tutorial_root6_run1

cwb_mkdir Show/Hide Code

[vedovato@atlas7 O2_BKG_L1H1_LF_WP10_tutorial_run1]$ ls *
condor:
ced.sh  cwb.sh  loudest.sh

config:

data:

input:

log:

macro:

merge:

output:

report:
ced  dump  postprod

tmp:

working dir Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ ls *
bkg_examples_root_shell.log  cWB_analysis.log  README

condor:
ced.sh  cwb.sh  loudest.sh

config:
user_parameters  user_parameters.C  user_pparameters  user_pparameters.C

data:

input:
H1Cat0.txt  H1Cat1.txt  H1Cat2.txt  HVETO_H1_ANALYSIS3_SEGMENTS_MERGED.txt  L1Cat0.txt  L1Cat1.txt  L1Cat2.txt

log:

macro:
CWB_Plugin_QLveto_Gating.C  CWB_Plugin_QLveto_Gating_C.d  CWB_Plugin_QLveto_Gating_C.so  LoopMakeFARvsRHO  LoopMakeFARvsRHO.C  MakeFARvsRHO  MakeFARvsRHO.C  MakeFARvsRHO_C.d  MakeFARvsRHO_C.so

merge:

output:

report:
ced  dump  postprod

tmp:

cwb_dump sjob: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_dump sjob
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_dump_sjob.C...

-------------------------------------------------------------------------------------

Write output file : report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.cat1
Dump file : report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.cat1
cat1 livetime : 482779 sec 134.105 h 5.58772 day

-------------------------------------------------------------------------------------

Write output file : report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.sjob
Dump file : report/dump/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.sjob

compile plugin: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ root -l -b -q macro/CWB_Plugin_QLveto_Gating.C++

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018


Processing macro/CWB_Plugin_QLveto_Gating.C++...
Info in <TUnixSystem::ACLiC>: creating shared library /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/./macro/CWB_Plugin_QLveto_Gating_C.so
input_line_32:2:3: error: use of undeclared identifier 'CWB_Plugin_QLveto_Gating'
 (CWB_Plugin_QLveto_Gating())
  ^
Error in <HandleInterpreterException>: Error evaluating expression (CWB_Plugin_QLveto_Gating()).
Execution of your code was aborted.

cwb_condor create Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_condor create
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_condor_create.C...

CWB::Toolbox::getSlagList : built-in slags

          SLAG         ifo[0]        ifo[1]
             0             0             0
             1             0            -1
             2             0             1
             3             0             2
             4             0            -2

slagList size : 12986

Start segments selection from dq cat1 list ...

input list size 12986
jobList    size 2598
     0 - Rejected slags = 0/12986
  1000 - Rejected slags = 777/12986
  2000 - Rejected slags = 1544/12986
  3000 - Rejected slags = 2074/12986
  4000 - Rejected slags = 2873/12986
  5000 - Rejected slags = 3621/12986
  6000 - Rejected slags = 4326/12986
  7000 - Rejected slags = 5078/12986
  8000 - Rejected slags = 5629/12986
  9000 - Rejected slags = 6481/12986
 10000 - Rejected slags = 7262/12986
 11000 - Rejected slags = 7842/12986
 12000 - Rejected slags = 8614/12986
 12986 - Rejected slags = 9264/12986

Slag livetime before dq cat1 is approximately 2479831 sec       = 28.70 days
Slag livetime after  dq cat1 is approximately 2307640 sec       = 26.71 days
Number of selected jobs after cat1 : 3722

Start segments selection from dq cat2 list ...

input list size 3722
jobList    size 2598
     0 - Rejected slags = 0/3722
  1000 - Rejected slags = 0/3722
  2000 - Rejected slags = 0/3722
  3000 - Rejected slags = 0/3722
  3722 - Rejected slags = 0/3722

Slag livetime before dq cat2 is approximately 2233200 sec       = 25.85 days
Slag livetime after  dq cat2 is approximately 2233200 sec       = 25.85 days
Number of selected jobs after cat2 : 3722

To submit condor jobs, type : cwb_condor submit

cwb_condor submit: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_condor submit

root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_condor_submit.C...
cd /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/condor;condor_submit_dag O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag

-----------------------------------------------------------------------
File for submitting this DAG to HTCondor           : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag.condor.sub
Log of DAGMan debugging messages                 : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag.dagman.out
Log of HTCondor library output                     : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag.lib.out
Log of HTCondor library error messages             : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag.lib.err
Log of the life of condor_dagman itself          : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag.dagman.log

Submitting job(s).
1 job(s) submitted to cluster 26407630.
-----------------------------------------------------------------------
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ condor_q waveburst


-- Schedd: ldas-pcdev5.ligo.caltech.edu : <10.14.0.51:9618?... @ 08/11/18 10:41:12
OWNER     BATCH_NAME                                              SUBMITTED   DONE   RUN    IDLE  TOTAL JOB_IDS
waveburst O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.dag+26407630   8/11 10:41      _      _      _   3722 0.0

1 jobs; 0 completed, 0 removed, 0 idle, 1 running, 0 held, 0 suspended

cwb_merge: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_merge M1 '--nthreads 1'
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_merge.C...
No Log files are present on the directory : output
Start merging to file : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1

CWB::Toolbox::mergeCWBTrees - Start merging 3722 files (production) ...
CWB::Toolbox::mergeCWBTrees - Add file to chain in progress ...
CWB::Toolbox::mergeCWBTrees - 1000/3722 files
CWB::Toolbox::mergeCWBTrees - 2000/3722 files
CWB::Toolbox::mergeCWBTrees - 3000/3722 files
CWB::Toolbox::mergeCWBTrees - Merging merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root in progress ...
CWB::Toolbox::mergeCWBTrees - Merging merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root in progress ...
CWB::Toolbox::mergeCWBTrees - Merged files : 3722
/home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/merge/merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.lst

Merged files : 3722/3722

cwb_setveto: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_setveto M1
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_setveto.C...
wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root

XDQF[0] veto_cat2_L1 NETWORK : L1 H1
XDQF[1] veto_cat2_H1 NETWORK : L1 H1
XDQF[2] veto_hveto_L1 NETWORK : L1 H1
XDQF[3] veto_hveto_H1 NETWORK : L1 H1
Toolbox::getJobList : lost livetime after building of the standard job list = 4381 sec
veto file label : .V_cat2LH_hvetoLH.root
veto_cat2_L1 list duration -2147483648 list size 5021
Opening BKG File : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root
tree size : 16819
Start applying flag to time[0]...
0 - 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90

Writing new ofile merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.1
osize : 16819
Flagged events:  16701 Percentage: 0.992984

veto_cat2_H1 list duration -2147483648 list size 5021
Opening BKG File : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.1
tree size : 16819
Start applying flag to time[1]...
0 - 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90

Writing new ofile merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.2
osize : 16819
Flagged events:  16620 Percentage: 0.988168

veto_hveto_L1 list duration 576 list size 1433
Opening BKG File : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.2
tree size : 16819
Start applying flag to time[0]...
0 - 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90

Writing new ofile merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.1
osize : 16819
Flagged events:  59 Percentage: 0.00350794

veto_hveto_H1 list duration 1097 list size 1736
Opening BKG File : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.1
tree size : 16819
Start applying flag to time[1]...
0 - 10 - 20 - 30 - 40 - 50 - 60 - 70 - 80 - 90

Writing new ofile merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.2
osize : 16819
Flagged events:  429 Percentage: 0.0255069

 rfile    : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.1
 ifile    : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.2
 ofile    : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
 lfile    : live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
 mfile    : mdc_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
 ilstfile : merge/merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.lst
 lstfile  : merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.lst
mv merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.2 merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
cd merge;ln -sf ../merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
cd merge;ln -sf ../merge/merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.lst merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.lst
rm merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.root.tmp.1

cwb_setcuts: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_setcuts M1.V_cat2LH_hvetoLH "--tcuts bin1_cut --label bin1_cut"
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_setcuts.C...
cwb_tcuts_tree : ((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>32 && frequency[0]<996))&&(!((((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>48 && frequency[0]<996))&&(Qveto[0]>0.3 && Qveto[1]>0.3 && Qveto[2]>0.3 && Qveto[3]>0.3))&&(!(bandwidth[0]<5 || (Lveto[1]<5 && Lveto[2]>0.8)))))
cwb_wcuts_tree : ((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>32 && frequency[0]<996))&&(!((((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>48 && frequency[0]<996))&&(Qveto[0]>0.3 && Qveto[1]>0.3 && Qveto[2]>0.3 && Qveto[3]>0.3))&&(!(bandwidth[0]<5 || (Lveto[1]<5 && Lveto[2]>0.8)))))
merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.lst
Number of jobs in the merged lists : 3722
/home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/merge/merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.lst
Opening File : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
tree size : 16819
CWB::Toolbox::setCuts - selected entries : 3385/16819
CWB::Toolbox::setCuts - Create cuts file : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
cwb_setcuts.C : Number of selected waveburst entries = 3385
live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
cd merge;ln -sf live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root







[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_setcuts M1.V_cat2LH_hvetoLH "--tcuts bin2_cut --label bin2_cut"
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_setcuts.C...
cwb_tcuts_tree : (((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>48 && frequency[0]<996))&&(Qveto[0]>0.3 && Qveto[1]>0.3 && Qveto[2]>0.3 && Qveto[3]>0.3))&&(!(bandwidth[0]<5 || (Lveto[1]<5 && Lveto[2]>0.8)))
cwb_wcuts_tree : (((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>48 && frequency[0]<996))&&(Qveto[0]>0.3 && Qveto[1]>0.3 && Qveto[2]>0.3 && Qveto[3]>0.3))&&(!(bandwidth[0]<5 || (Lveto[1]<5 && Lveto[2]>0.8)))
merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin2_cut.lst
Number of jobs in the merged lists : 3722
/home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/merge/merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin2_cut.lst
Opening File : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
tree size : 16819
CWB::Toolbox::setCuts - selected entries : 3009/16819
CWB::Toolbox::setCuts - Create cuts file : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin2_cut.root
cwb_setcuts.C : Number of selected waveburst entries = 3009
live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin2_cut.root
cd merge;ln -sf live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin2_cut.root
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$

cwb_report create: Show/Hide Code

[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_setcuts M1.V_cat2LH_hvetoLH "--tcuts bin1_cut --label bin1_cut"
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_setcuts.C...
cwb_tcuts_tree : ((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>32 && frequency[0]<996))&&(!((((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>48 && frequency[0]<996))&&(Qveto[0]>0.3 && Qveto[1]>0.3 && Qveto[2]>0.3 && Qveto[3]>0.3))&&(!(bandwidth[0]<5 || (Lveto[1]<5 && Lveto[2]>0.8)))))
cwb_wcuts_tree : ((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>32 && frequency[0]<996))&&(!((((((veto_cat2_H1 && veto_cat2_L1 && !veto_hveto_H1 && !veto_hveto_L1)&&(norm>2.5))&&(netcc[0]>0.8 && netcc[2]>0.8))&&(frequency[0]>48 && frequency[0]<996))&&(Qveto[0]>0.3 && Qveto[1]>0.3 && Qveto[2]>0.3 && Qveto[3]>0.3))&&(!(bandwidth[0]<5 || (Lveto[1]<5 && Lveto[2]>0.8)))))
merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.lst
Number of jobs in the merged lists : 3722
/home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/merge/merge_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.lst
Opening File : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root
tree size : 16819
CWB::Toolbox::setCuts - selected entries : 3385/16819
CWB::Toolbox::setCuts - Create cuts file : merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
cwb_setcuts.C : Number of selected waveburst entries = 3385
live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
cd merge;ln -sf live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.root live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ vi bkg_examples_cwb_setcuts_shell.log
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ vi bkg_examples_cwb_report_create_shell.log
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$
[CIT:waveburst@ldas-pcdev5 O2_BKG_L1H1_LF_WP10_tutorial_root6_run1]$ cwb_report M1.V_cat2LH_hvetoLH.C_bin1_cut create
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_getsim.C...
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_getsim.C...
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_getsim.C...
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_report_prod_1.C...
cwb_report_prod_1.C starts...
mkdir -p report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data
netplot starts...
Sat Aug 11 17:49:32 UTC 2018
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_frequency.eps has been created
report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_frequency.eps
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_frequency.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_frequency.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_time.eps has been created
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_report_prod_2.C...
cwb_report_prod_2.C starts...
XDQF[0] veto_cat2_L1
XDQF[1] veto_cat2_H1
XDQF[2] veto_hveto_L1
XDQF[3] veto_hveto_H1
Sat Aug 11 17:49:39 UTC 2018
Start CWB::Toolbox::getLiveTime : be patient, it takes a while ...
0% - 10% - 20% - 30% - 40% - 50% - 60% - 70% - 80% - 90% - 100%

live time: zero lags =   448800.0
total live time: non-zero lags = 1317139200.0
End   CWB::Toolbox::getLiveTime : Sat Aug 11 17:49:41 UTC 2018
total events: 3385
data start GPS: 1167521414.00000
data stop  GPS: 1169110321.00000
cwb_report_prod_2.C : Start event loop ...
cwb_report_prod_2.C : loop 1 - processed: 0/3385
cwb_report_prod_2.C : loop 2 - processed: 0/3385
Events vetoed by veto_cat2_L1 - 0
Events vetoed by veto_cat2_H1 - 0
Events vetoed by veto_hveto_L1 - 0
Events vetoed by veto_hveto_H1 - 0
report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/sigma.txt
report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/sigma_veto.txt
Total Number of bkg coinc.: 3383 total Live Time: 1.31535e+09 nb = 2.57193e-06
NCoinc = 0 Found = 923   Expected = 938.314     Chi2_bin0= 0.249927
NCoinc = 1 Found = 1077   Expected = 1073.22     Chi2_bin1= 0.0132837
NCoinc = 2 Found = 625   Expected = 613.766     Chi2_bin2= 0.205618
NCoinc = 3 Found = 240   Expected = 234.004     Chi2_bin3= 0.153618
NCoinc = 4 Found = 67   Expected = 66.9124     Chi2_bin4= 0.000114756
NCoinc = 5 Found = 10   Expected = 15.3066     Chi2_bin5= 1.83973
myChiSquare  :2.46229
NDF       : 5
myPlevel       :0.782163
-1 -2147483647
 FCN=3.42312 FROM MIGRAD    STATUS=CONVERGED      14 CALLS          15 TOTAL
                     EDM=1.10216e-11    STRATEGY= 1      ERROR MATRIX ACCURATE
  EXT PARAMETER                                   STEP         FIRST
  NO.   NAME      VALUE            ERROR          SIZE      DERIVATIVE
   1  p0           2.94500e+03     fixed
   2  p1           1.14590e+00   1.93150e-02   1.98349e-05  -2.43076e-04
Mean      : 1.1459
Norm     : 2945
ChiSquare : 3.42312
NDF       : 4
Plevel    : 0.489664
Info in <TCanvas::Print>: png file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/Lag_PoissonFit.png has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_vED.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_L.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_ed.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_cc.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_time.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_frequency.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/frequency.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_time.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_lag.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/live_lag.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto_compare.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/density.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/vED.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/netcor.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/likelihood.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/Mchirp.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/McErr.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_subnet.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_vED.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_pf.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_cc.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_cc.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_cc.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_mchirp.eps has been created
422145
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/phi_vs_theta_online.eps has been created
Info in <TCanvas::Print>: eps file report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ra_vs_dec_online.eps has been created
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_mkhtml_index.C...
make index html file : report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/index.html
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_mkhtml_header.C...
Number of jobs in the merged lists : 3722
Number of jobs/factors in the condor lists : 3722/1
Convert: report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/cwb2G_parameters.C.html
Convert: report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/user_parameters.C.html
Convert: report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/cwb_pparameters.C.html
Convert: report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/user_pparameters.C.html
Convert: report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/CWB_Plugin.C.html
make header file : report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/header.html
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_mkhtml_prod.C...
Opening merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/body.html
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_frequency.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_frequency.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_frequency.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_frequency.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_frequency.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_frequency.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_frequency.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_frequency.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_frequency.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_time.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_time.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_time.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_vED.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_vED.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_vED.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_L.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_L.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_L.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_ed.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_ed.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_ed.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_cc.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_cc.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty_cc.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_time.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_time.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_time.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_frequency.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_frequency.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/fraction_frequency.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/frequency.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/frequency.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/frequency.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_time.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_time.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_time.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_lag.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_lag.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_lag.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/live_lag.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/live_lag.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/live_lag.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto_compare.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto_compare.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rate_threshold_veto_compare.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/density.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/density.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/density.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/penalty.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/vED.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/vED.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/vED.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/netcor.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/netcor.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/netcor.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/likelihood.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/likelihood.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/likelihood.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/Mchirp.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/Mchirp.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/Mchirp.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/McErr.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/McErr.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/McErr.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_subnet.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_subnet.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_subnet.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_vED.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_vED.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_vED.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_pf.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_pf.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_pf.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_cc.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_cc.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_cc.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_cc.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_cc.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ECOR_cc.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_cc.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_cc.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ecor_cc.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_mchirp.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_mchirp.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/rho_mchirp.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/phi_vs_theta_online.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/phi_vs_theta_online.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/phi_vs_theta_online.eps
convert report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ra_vs_dec_online.eps report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ra_vs_dec_online.gif
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/ra_vs_dec_online.eps
report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/live.txt
448800 1317139200
1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40
cat report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/events_header.txt report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/events_sorted.txt > report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/EVENTS.txt
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/events_notsorted.txt
rm report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/events_header.txt
Warning in <TApplication::GetOptions>: macro  not found
root [0]
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_rootlogon.C...

OS : Linux


ROOT/WAT/CWB initialization starting...

Set Include Paths...
Load Libraries...
Warning in <TUnixSystem::SetDisplay>: DISPLAY not set, setting it to 151.95.123.14:0.0
Loading LAL Suite     : /home/waveburst/SOFT//LAL/lalsuite_lal-master230218 ...
Loading cvode         : /home/waveburst/SOFT//CVODE/cvode-2.7.0/dist ...
Loading cfitsio       : /home/waveburst/SOFT//CFITSIO/cfitsio-3.45 ...
Loading HEALPix       : /home/waveburst/SOFT//HEALPix/Healpix_3.40 ...
Loading WAT           : /home/waveburst/git/cWB/library/tools/install/lib/wavelet.so ...
Loading Frame         : /home/waveburst/SOFT//FRAMELIB/libframe-8.30_root-6.14.00_icc ...
Loading eBBH          : /home/waveburst/git/cWB/library/tools/install/lib/eBBH.so ...
Loading STFT          : /home/waveburst/git/cWB/library/tools/install/lib/STFT.so ...
Loading gwat          : /home/waveburst/git/cWB/library/tools/install/lib/gwat.so ...
Loading Toolbox       : /home/waveburst/git/cWB/library/tools/install/lib/Toolbox.so ...
Loading History       : /home/waveburst/git/cWB/library/tools/install/lib/History.so ...
Loading Bicoherence   : /home/waveburst/git/cWB/library/tools/install/lib/Bicoherence.so ...
Loading Filter        : /home/waveburst/git/cWB/library/tools/install/lib/Filter.so ...
Loading CWB FRAME     : /home/waveburst/git/cWB/library/tools/install/lib/frame.so ...
Loading cwb           : /home/waveburst/git/cWB/library/tools/install/lib/cwb.so ...
Loading wavegraph     : /home/waveburst/git/cWB/library/tools/install/lib/wavegraph.so ...

cWB library path      : /home/waveburst/git/cWB/library

cWB config path       : /home/waveburst/CONFIGS/cWB-config-master.2.8

     ****************************************************************************
     *                                                                          *
     *             W E L C O M E  to  C W B                                     *
     *                                                                          *
     *             WAT    Version  6.2.6.0 (XIFO=4)                             *
     *                     Branch  master/                                      *
     *                       Hash  4fbcbfa076e28b708291a754cbbe7981f2ef2210     *
     *                 Short Hash  4fbcbfa0                                     *
     *                                                                          *
     *             LAL    Version  6.18.0.1                                     *
     *             FRLIB  Version  8.30                                         *
     *                                                                          *
     *             Based  on ROOT  6.14/00                                      *
     *                                                                          *
     *             ROOT6           ENABLED                                      *
     *             CP11            ENABLED                                      *
     *             ICC             ENABLED                                      *
     *                                                                          *
     *             CONFIG     Tag  master.2.8                                   *
     *                       Hash  f774dfad6c5704c7dd4856c87a00e774284c643a     *
     *                                                                          *
     ****************************************************************************

Date: Thu Jul 26 19:11:41 2018 +0200
   Compiled on Linux x86_64 ldas-pcdev5
                 Sat Jul 28 19:57:45 UTC 2018

Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb2G_parameters.C...
www_dir    : /home/waveburst/public_html/reports
data_label : O2_BKG_L1H1_LF_WP10_tutorial_root6_run1
condor_log : /usr1/waveburst
nodename   : ldas-pcdev5
nodedir    : /local/waveburst
Processing ./config/user_parameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_eparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_pparameters.C...
merge/wave_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
merge/live_O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.root
Processing ./config/user_pparameters.C...
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_epparameters.C...
veto_cat2 : veto_cat2_L1&&veto_cat2_H1
ch2 : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)
veto_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(veto_hveto_L1||veto_hveto_H1)
veto_not_vetoed : netcc[0]>0.000000&&!(lag[2]==0&&slag[2]==0)&&(rho[0]>0.000000)&&(veto_cat2_L1&&veto_cat2_H1)&&(!veto_hveto_L1&&!veto_hveto_H1)
Processing /home/waveburst/git/cWB/library/tools/cwb/macros/cwb_condor_create_ced.C...
mkdir -p report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/ced
condor/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024.ced.sub
condor/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024.ced.dag

Simulation Example¶

In this example we show how to obtain efficiency tests of H1, L1
detectors data on the so called O2-VSR2 period.
NOTE : the test has been done with SVN version 5099.
The procedure is similar to Background Example, so we refer to this page for details.
Here we focus on the difference between the two cases.
All files used in this example are located in the cit cluster at
/home/waveburst/REPORTS/O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1
The list of the main commands used to produce the simulation are reported in the
README.

PRE-PRODUCTION : Setup analysis¶

Create the Working Dir¶

cwb_mkdir O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1

Prepare needed files¶

Since we have the same network and time period used in the Background
example, we have already all the informations of frame files and data
quality. In addition, we need informations about the MDC injections.
LIGO-Virgo collaboration usually provide default MDC sets that can be
used for efficiency tests
These MDC sets are stored in the MDC frame files and a MDC log
file which records all of the informations used to produce the
injections. The log file is used by cWB to read all the injected
parameters.
Here we use the MDC set generated On-The-Fly by the `The cWB-MDC
Engine mdc.html<#mdc>`__, in particular we use the so-called BRST set (set of
burst injections in the frequency range 0-1024 Hz).
We need also to create the list of MDC types used for post-production
(described later) and then adding it in the
user_parameters.C. For simplicity, we
report the difference between the two user_parameters.C files of
background and simulation.

background parameters¶

//lags
lagSize = 590;
lagStep = 1.;
lagOff  = 0;
lagMax  = 0;

//superlags
slagSize   = 5;      // number of super lags (simulation=1) - if slagSize=0 -> Igor Segments
slagMin    = 0;      // if slagMax=0 ->  slagMin must be < slagMax
slagMax    = 400;    // if slagMax=0 -> slagMax=slagSegs
slagOff    = 0;


//simulation
nfactor = 1;
simulation = 0;       // 0 -> background

plugin = TMacro("macro/CWB_Plugin_QLveto_Gating.C");          // Macro source
plugin.SetTitle("macro/CWB_Plugin_QLveto_Gating_C.so");

simulation parameters¶

//lags
lagSize = 1;
lagStep = 1.;
lagOff  = 0;
lagMax  = 0;

//superlags
slagSize   = 1;      // number of super lags (simulation=1) - if slagSize=0 -> Igor Segments
slagMin    = 0;      // if slagMax=0 ->  slagMin must be < slagMax
slagMax    = 0;      // if slagMax=0 -> slagMax=slagSegs
slagOff    = 0;


// simulation parameters
simulation = 1;     // 1 for simulation, 0 for production
nfactor = 9;        // number of strain factors
for(int i=0;i<nfactor;i++) factors[i]=pow(sqrt(3),i);

strcpy(injectionList,"input/O2_LF_BRST.inj");

plugin = TMacro("macro/CWB_Plugin_MDC_OTF_QLveto_Gating.C");                  // Macro source
plugin.SetTitle("macro/CWB_Plugin_MDC_OTF_QLveto_Gating_C.so");
configPlugin = TMacro("macro/CWB_Plugin_O2_LF_BRST_BUILTIN_Config.C");        // Macro config

We can collect the differences into three parts:

Time lags: For efficiency studies we do not need time lags.
MDC amplitude factors: used to construct efficiency curve, the user should specifiy how many amplitude factors the pipeline should use for each waveform
MDC informations: the list of frames files, log file, the channels name and the waveform lists.

The full list of the parameters used by CWB is declared in the default parameter file cwb_parameters.C (most of parameters have a default value and should not be changed by the user). For a description of the such parameters see : description of the parameters. The user_parameters.C contains only the user customization.

The final user parameters file used for this example is user_parameters.C.

Define and Compile Plugin¶

If the
user_parameters.C
contains a user cwb plugin then it must defined and compiled.
For simulation we use 3 system plugins:

CWB_Plugin_MDC_OTF.C - ( The cWB-MDC Engine )
CWB_Plugin_QLveto.C - ( Documentation )
CWB_Plugin_Gating.C - ( Documentation )

are defined in the directory trunk plugin directory tools/cwb/plugins

Since only one plugin can be defined in the user_parameters.C file
we must merge the 3 plugins, we must use the
cwb_mplugin command:

cwb_mplugin macro/CWB_Plugin_MDC_OTF_QLveto_Gating.C
            $HOME_CWB/plugins/CWB_Plugin_MDC_OTF.C $HOME_CWB/plugins/CWB_Plugin_QLveto.C \
            $HOME_CWB/plugins/CWB_Plugin_Gating.C

The output is : macro/CWB_Plugin_MDC_OTF_QLveto_Gating.C

Then compile it :

root -l -b macro/CWB_Plugin_MDC_OTF_QLveto_Gating.C++

Ignore errors like this:

Error: Function CWB_Plugin_Template() is not defined in current scope  :0:
*** Interpreter error recovered ***

The CWB_Plugin_MDC_OTF.C requires a configuration plugin, where the MDC injections are defined.

The MDC configuration file is : CWB_Plugin_O2_LF_BRST_BUILTIN_Config.C

PRODUCTION - Run the analysis¶

Create & Submit Condor files¶

Submit the job to the cluster:

cwb_condor create

cwb_condor submit

POST-PRODUCTION : Collection of results¶

Merging files¶

As for Background case, we have to merge the files in ouput directory in a unique file:

cwb_merge M1 '--nthreads 8'

This produces the files on merge directory:

cwb_user_parameters.C

merge_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.lst   the list of merged files
wave_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.root   collection of trigger parameters
mdc_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.root    (only for simulation) collection of mdc informations
                                                     (source direction, amplitude factors, ...)

Apply vetoes¶

see Apply vetoes in Background Example

Apply ifar¶

In this step we include, for each event, the ifar parameter (inverse
false alarm rate) in the output wave root file.
The ifar is computed starting from the the background distribution
“far vs rho” (see Background Example).
ifar is used in the final report to select the detected events with
ifar>T_ifar, where T_ifar is defined in the
user_pparameters.C.

The macro which include ifar is macro/esetIFAR.C and it is executed with the following command :

cwb_setifar M1.V_cat2LH_hvetoLH "--tsel bin1_cut --label bin1_cut --xfile /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/postprod/M1.V_cat2LH_hvetoLH.C_bin1_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/far_rho.txt --mode exclusive"

cwb_setifar M1.V_cat2LH_hvetoLH.S_bin1_cut "--tsel bin2_cut --label bin2_cut --xfile /home/waveburst/TUTORIALS/O2/BKG/O2_BKG_L1H1_LF_WP10_tutorial_root6_run1/report/postprod/M1.V_cat2LH_hvetoLH.C_bin2_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_freq16_1024/data/far_rho.txt --mode exclusive"

The following files are produced :

- merge/mdc_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.S_bin1_cut.root
- merge/merge_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.S_bin1_cut.lst
- merge/wave_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.S_bin1_cut.root

- merge/mdc_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.S_bin1_cut.S_bin2_cut.root
- merge/merge_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.S_bin1_cut.S_bin2_cut.lst
- merge/wave_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.V_cat2LH_hvetoLH.S_bin1_cut.S_bin2_cut.root

see here : merge directory

Web page production¶

In order to produce the plots of the reconstructed MDC parameters reported in Web pages, the user must create in the input directory a waveform lists file with the following format :

MDC_SET  MDC_ID  MDC_NAME  MDC_CENTRAL_FREQUENCY  MDC_BANDWIDTH

MDC_SET                is used to catalog the waveforms in various sets (provided by the user)
MDC_ID                 The identification number associated to the MDC (from mdc_dump inj)
MDC_NAME               The MDC name (defined by the cWB MC Engine)
MDC_CENTRAL_FREQUENCY  The central frequency of the waveform (provided by the user)
MDC_BANDWIDTH          The maximum variation of the reconstructed frequency of the waveform (provided by the user)

The file used for this simulation is input/O2_LF_BRST.inj :

GA       3                  GA4d0       95       200
GA       2                  GA2d5       125      200
GA       1                  GA1d0       190      200
GA       0                  GA0d1       400      200

SGEQ3    4                SGE70Q3       70       200
SGEQ3    5               SGE235Q3       235      200
SGEQ3    6               SGE849Q3       849      200

SGEQ9    7                 SG70Q9       70       200
SGEQ9    8                SG100Q9       100      200
SGEQ9    9               SGE153Q9       153      200
SGEQ9   10                SG235Q9       235      200
SGEQ9   11                SG361Q9       361      200
SGEQ9   12               SGE554Q9       554      200
SGEQ9   13               SGE849Q9       849      200

SGEQ100 14              SGE70Q100       70       200
SGEQ100 15             SGE235Q100       235      200
SGEQ100 16             SGE849Q100       849      200

WNB     17       WNB150_100_0d100       150      200
WNB     18       WNB300_100_0d100       300      200

The second line is the identification number, while the third is the waveform name. The other three columns should be modified by the user before preparing the web pages.

Modifing the first column it is possible to separate the waveforms in various sets, so each set has its proper space on the web page
The fourth column assigns a central frequency to the waveform (particularly useful for the plot hrss10%-50%-90% vs frequency)
The fifth column assigns the variation of the reconstructed frequency of the waveform (used for frequency plot)

To create the final report with ifar=8y it is sufficient to set T_ifar=8 in the user_pparameters.C and to do:

cwb_report M1.V_cat2LH_hvetoLH.S_bin1_cut.S_bin2_cut create

The web page¶

The web data files are produced under the directory :

O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1/report/postprod/M1.V_cat2LH_hvetoLH.S_bin1_cut.S_bin2_cut.R_rMRA_cat2_hveto_i0cc00_i0rho0_win01_ifar8_freq16_1024/data

and can be view with a web browser at the following link : web report link

How to make a CED of a detected event¶

To production of the CED of a detected event can been done in batch or in interactive mode.

In the batch mode the CED are produced during the processing, to enable it the following parameters must be declared in the user_parameters.C configuration file :

cedDump   = true;            // dump ced enabled
cedRHO    = 4.0;             // dump ced plots with rho>cedRHO

To produce CED in interactive mode the command cwb_inet must be used :

cwb_inet job_number gps_time true factor

Ex : to produce detected event at gps time = 1167574554, job = 64, factor = = 9 do :
(see reconstructed parameters in the file merge/wave_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1.M1.root)
NOTE : the parameter must be set cedRHO less than the rho value of the detected event

cwb_inet 64 1167574554 ced 9

The final ced is stored under the data directory.

To make ced visible from web do :

mv data/ced_1167574200_600_O2_SIM1_LF_BRST_LH_WP10_tutorial_root6_run1_9_job64 report/ced/

and can be view with a web browser at the following link : web CED link

Example of a search for intermediate mass black hole binaries¶

This page provides an overview of how to perform an all-sky search for intermediate mass black hole binaries (IMBHB) in LIGO-Virgo data. The first section outlines the main differences between the standard all-sky burst search and the IMBHB search. The second section describes how to optimise the CWB pipeline to target IMBHBs and how the analysis is launched.

For further information on the IMBHB searches conducted with the CWB pipeline, see the following documents:

G. Mazzolo’s PhD thesis (2013)
C. Pankow’s PhD thesis (2011)

Peculiarities of the IMBHB search¶

The procedure to set up and launch an IMBHB search is very similar to that for the standard all-sky burst search. The main differences between the two searches can be summarised as follows:

Targeted waveform: whereas the burst search targets unmodeled gravitational-wave transients, the IMBHB waveform is well modeled. Thus, the sensitivity of the burst search is tested by performing simulation studies with ad-hoc waveforms, that of the IMBHB search via accurate inspiral-merger-ringdown waveforms. When setting up the Monte Carlo simulation, the ad-hoc waveforms are typically distributed over the investigated frequency range. On the contrary, the IMBHB waveforms must be distributed over the binary’s physical parameter space (companions masses and spins).
Signal polarisation: whereas the burst search targets all classes of waveforms, regardless of the signal’s polarisation, the IMBHB search targets only on elliptically-polarised events.
Investigated frequency range: the burst search tipically spans the whole detectors bandwidth, whereas the IMBHB search focuses on the low-frequency end of the LIGO-Virgo band.

How to run an IMBHB search¶

As the procedures to launch the burst and IMBHB searches are very similar, we refer to the Background Example and the Simulation Example pages for the creation of the working environment and on how to run the analysis. In this section we describe how to account for the three main differences between the burst and IMBHB searches reported above.

How to set up Monte Carlo simulation studies for estimating the sensitivity to IMBHBs¶

To perform an “on-the-fly” detection-efficiency study, a plugin is generated to pass to CWB information on the IMBHB parameter space to be sampled and with which distribution. An example of plugin is available - CWB_Plugin_MDC_OTF_Config_EOBNRv2pseudoFourPN.C (the values can be changed as desired).

Selecting the low-frequency end of the LIGO-Virgo band¶

It is convenient to focus on the low-frequency end of the LIGO-Virgo band when targeting IMBHBs. To do this, edit the following parameters in the user_parameters.C file (values indicative, can be changed as desired):

fLow  = 16.;       // for searches with advanced LIGO-Virgo detectors
fLow  = 32.;       // for searches with initial LIGO-Virgo detectors
fHigh = 512.;
int levelR  = 4;

It is worth noting the following:

the lowest frequency is selected based on the detector’s calibration and sensitivity band.
the highest frequency depends on the low-mass end of the investigated IMBHB total-mass range. The lower the mass of the lightest systems, the higher the maximum frequency.
levelR (resampling level) is the power of two used to downsample the data and select the highest frequency. For this example, 512 = 8192 / 2**4

Accounting for the signal polarization¶

To account for the signal polarization, select the ‘I’ search when editing the user_parameters.C file:

search = 'I';

The ‘I’ search applies the elliptical constraint during the likelihood maximization process. The elliptical constraint enchances the reconstruction of elliptically-polarized waveforms. This improves the rejection of noise event, which are not expected to be elliptically polarised.
