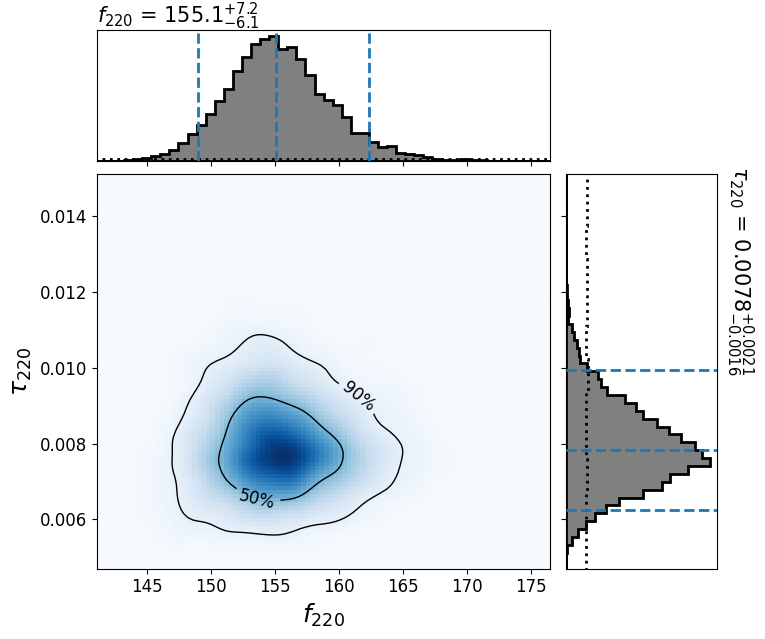

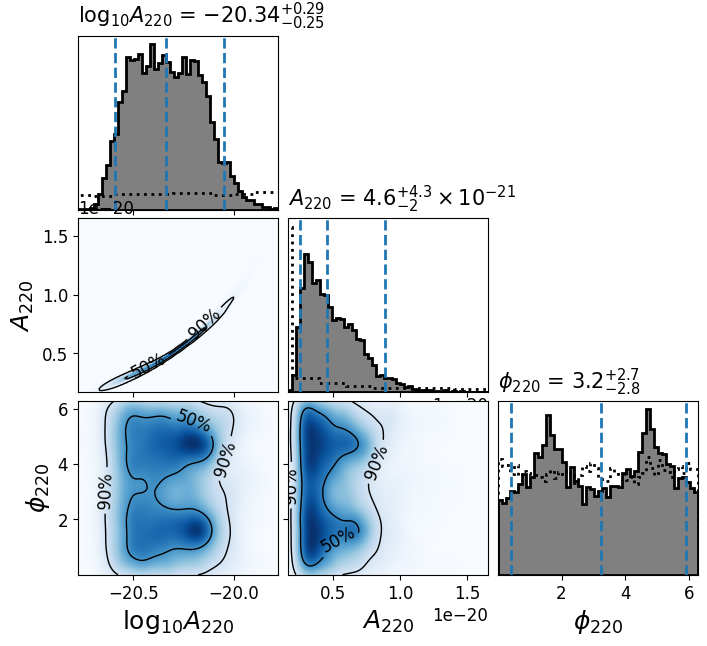

W1. GW150914_m5ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $121^{+16}_{-15}$ | $121$ | $121$ |
| $\chi_f$ | $0.794^{+0.090}_{-0.169}$ | $0.793$ | $0.793$ |
| $\iota$ | $2.21^{+0.65}_{-0.49}$ | $1.73$ | $1.73$ |
| $\log_{10}A_{220}$ | $-20.34^{+0.29}_{-0.25}$ | $-20.15$ | $-20.15$ |
| $\phi_{220}$ | $3.2^{+2.7}_{-2.8}$ | $4.7$ | $4.7$ |
| $f_{220}$ | $155.1^{+7.2}_{-6.1}$ | $155.4$ | $155.4$ |
| $\tau_{220}$ | $0.0078^{+0.0021}_{-0.0016}$ | $0.0078$ | $0.0078$ |
| $A_{220}$ | $4.6^{+4.3}_{-2}\times 10^{-21}$ | $7.1\times 10^{-21}$ | $7.1\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7257
Link to File

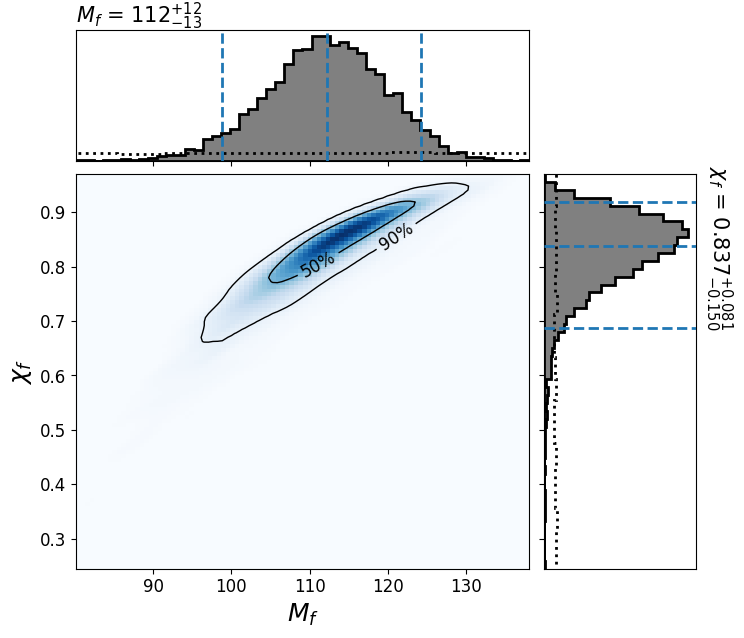

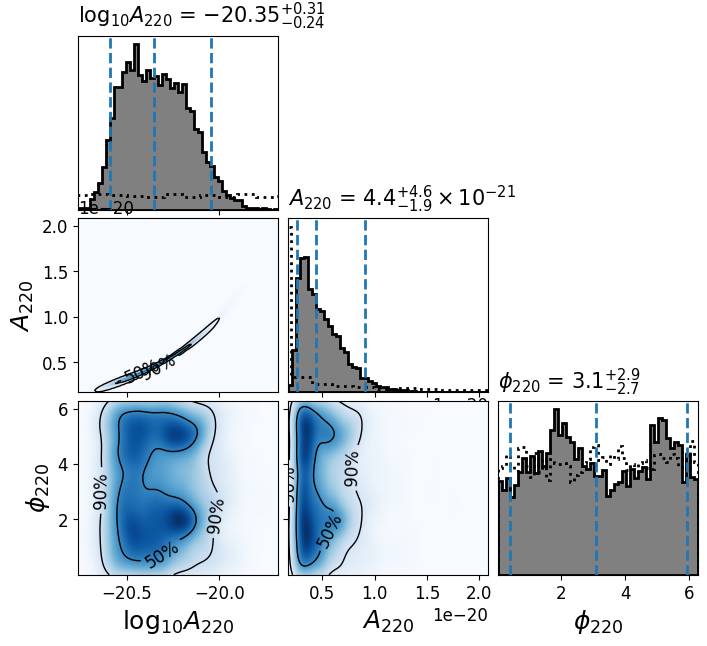

W2. GW150914_m4ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $112^{+12}_{-13}$ | $114$ | $113$ |
| $\chi_f$ | $0.837^{+0.081}_{-0.150}$ | $0.857$ | $0.853$ |
| $\iota$ | $2.23^{+0.64}_{-0.49}$ | $1.74$ | $1.98$ |
| $\log_{10}A_{220}$ | $-20.35^{+0.31}_{-0.24}$ | $-20.15$ | $-20.25$ |
| $\phi_{220}$ | $3.1^{+2.9}_{-2.7}$ | $1.9$ | $1.9$ |
| $f_{220}$ | $177^{+7.5}_{-10.7}$ | $178.2$ | $178.3$ |
| $\tau_{220}$ | $0.0076^{+0.0023}_{-0.0016}$ | $0.0079$ | $0.0079$ |
| $A_{220}$ | $4.4^{+4.6}_{-1.9}\times 10^{-21}$ | $7\times 10^{-21}$ | $5.6\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7483
Link to File

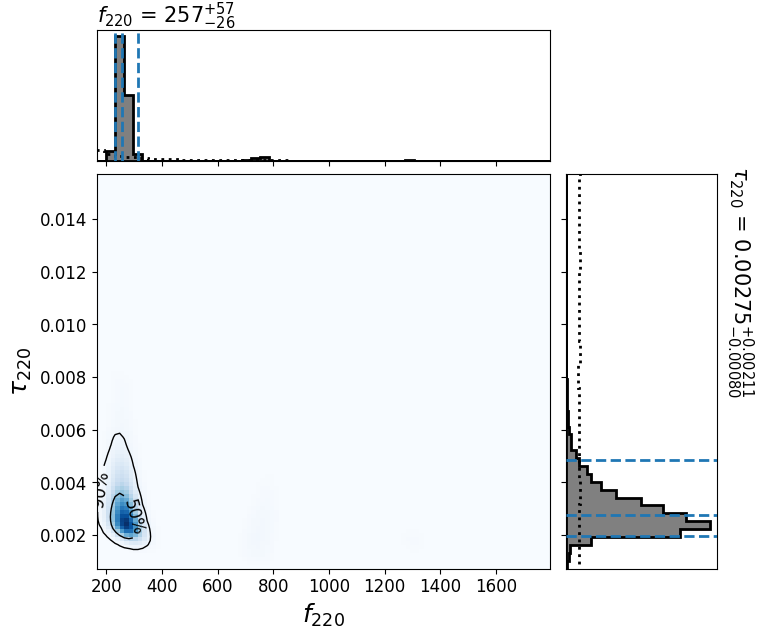

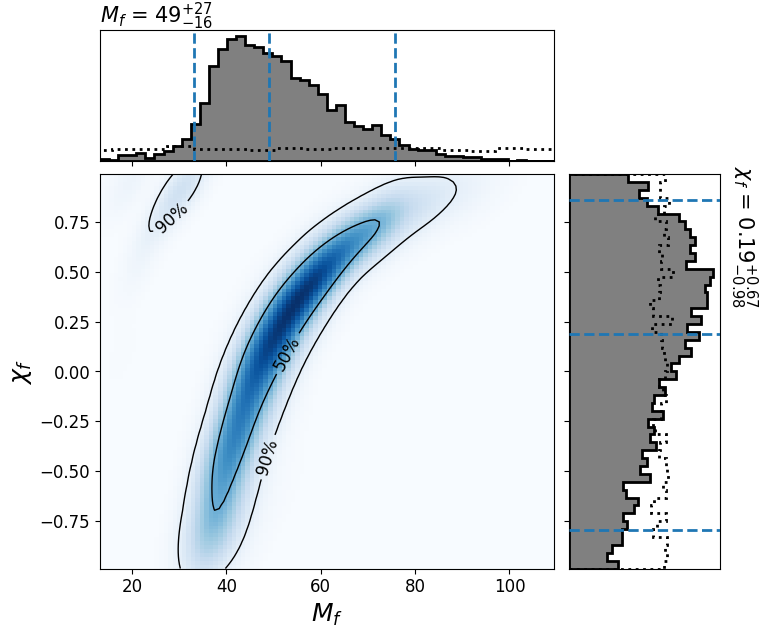

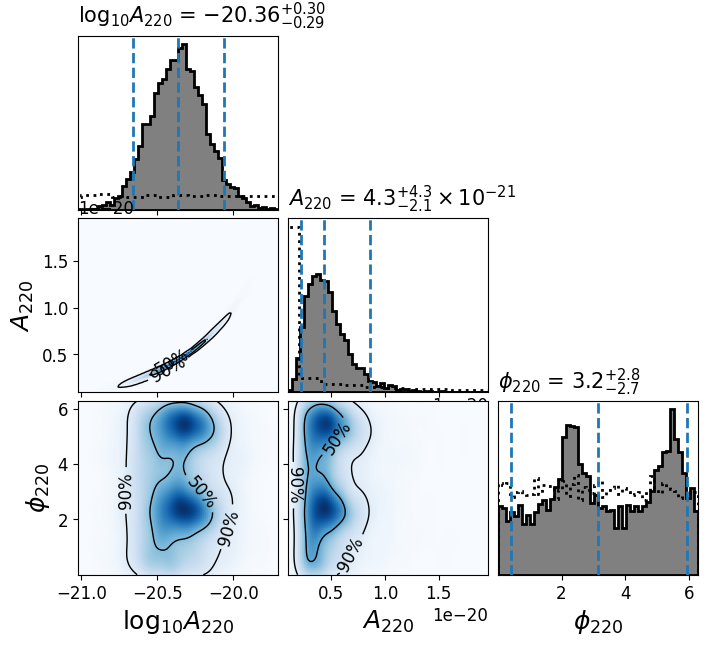

W3. GW150914_5ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $49^{+27}_{-16}$ | $49$ | $49$ |
| $\chi_f$ | $0.19^{+0.67}_{-0.98}$ | $0.18$ | $0.18$ |
| $\iota$ | $2.00^{+0.79}_{-1.33}$ | $1.64$ | $1.64$ |
| $\log_{10}A_{220}$ | $-20.36^{+0.30}_{-0.29}$ | $-20.23$ | $-20.23$ |
| $\phi_{220}$ | $3.2^{+2.8}_{-2.7}$ | $2.3$ | $2.3$ |
| $f_{220}$ | $257^{+57}_{-26}$ | $262$ | $262$ |
| $\tau_{220}$ | $0.00275^{+0.00211}_{-0.00080}$ | $0.00274$ | $0.00274$ |
| $A_{220}$ | $4.3^{+4.3}_{-2.1}\times 10^{-21}$ | $6\times 10^{-21}$ | $6\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7493
Link to File

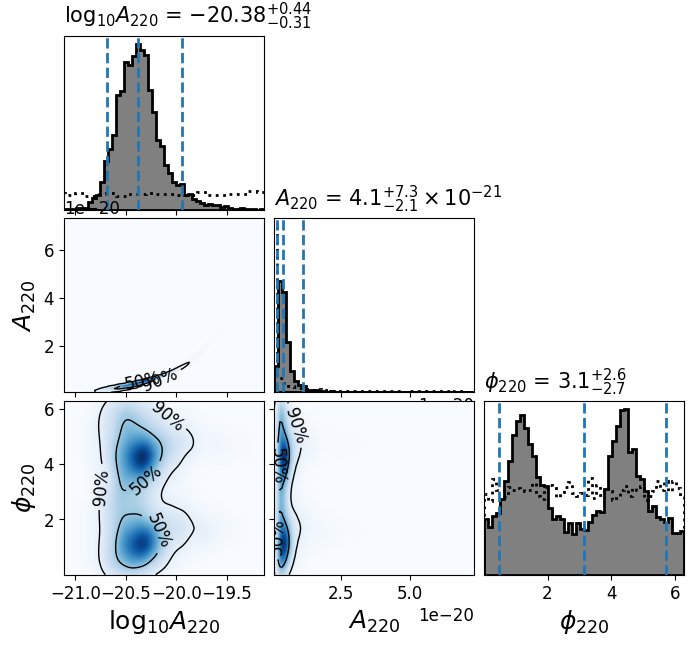

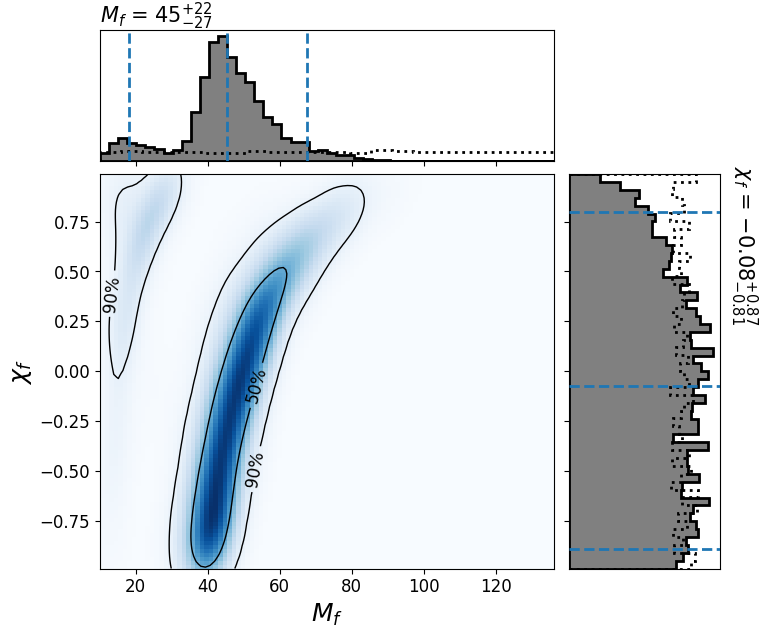

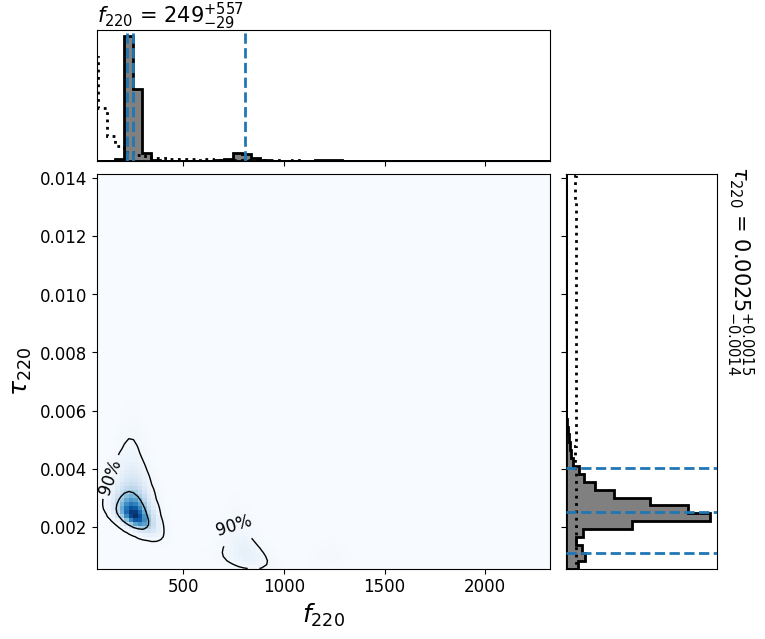

W4. GW150914_6ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $45^{+22}_{-27}$ | $42$ | $42$ |
| $\chi_f$ | $-0.08^{+0.87}_{-0.81}$ | $-0.66$ | $-0.66$ |
| $\iota$ | $1.7^{+1}_{-1.2}$ | $1.6$ | $1.6$ |
| $\log_{10}A_{220}$ | $-20.38^{+0.44}_{-0.31}$ | $-20.24$ | $-20.24$ |
| $\phi_{220}$ | $3.1^{+2.6}_{-2.7}$ | $4.3$ | $4.3$ |
| $f_{220}$ | $249^{+557}_{-29}$ | $239$ | $239$ |
| $\tau_{220}$ | $0.0025^{+0.0015}_{-0.0014}$ | $0.0023$ | $0.0023$ |
| $A_{220}$ | $4.1^{+7.3}_{-2.1}\times 10^{-21}$ | $5.7\times 10^{-21}$ | $5.7\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7532
Link to File

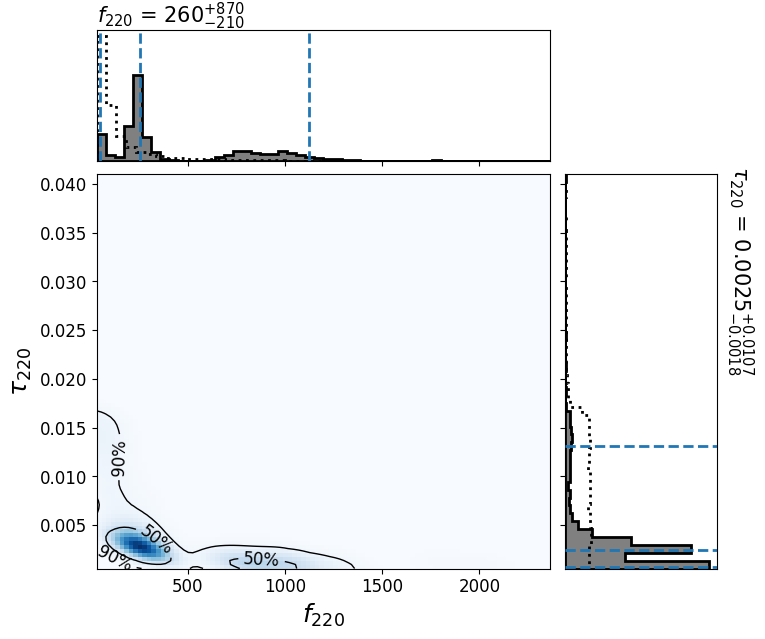

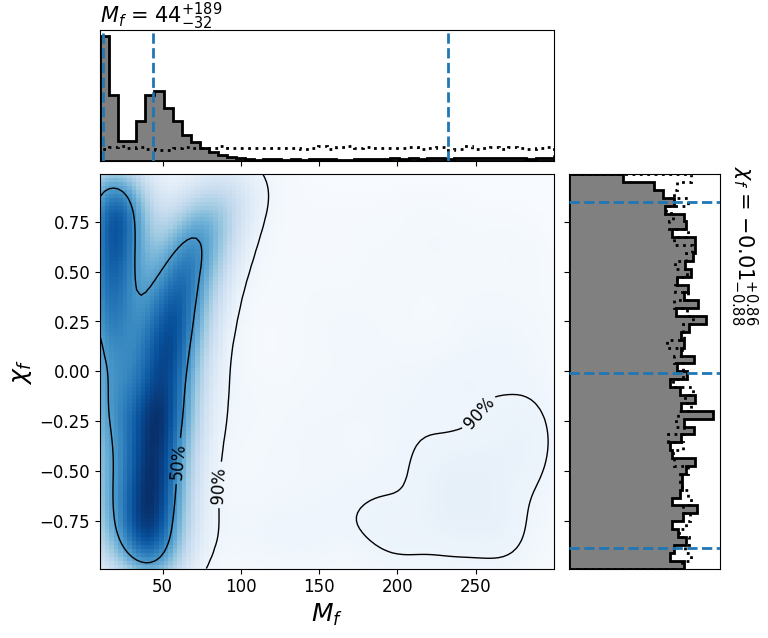

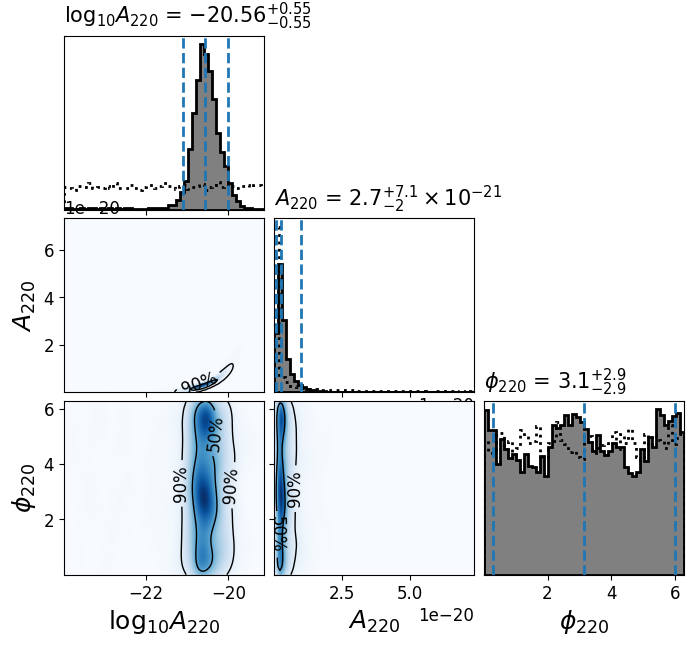

W5. GW150914_7ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $44^{+189}_{-32}$ | $16$ | $16$ |
| $\chi_f$ | $-0.01^{+0.86}_{-0.88}$ | $-0.03$ | $-0.03$ |
| $\iota$ | $1.5^{+1.2}_{-1.1}$ | $1.6$ | $1.6$ |
| $\log_{10}A_{220}$ | $-20.56^{+0.55}_{-0.55}$ | $-20.14$ | $-20.14$ |
| $\phi_{220}$ | $3.1^{+2.9}_{-2.9}$ | $1$ | $1$ |
| $f_{220}$ | $260^{+870}_{-210}$ | $730$ | $730$ |
| $\tau_{220}$ | $0.0025^{+0.0107}_{-0.0018}$ | $0.0009$ | $0.0009$ |
| $A_{220}$ | $2.7^{+7.1}_{-2}\times 10^{-21}$ | $7.3\times 10^{-21}$ | $7.3\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7130
Link to File

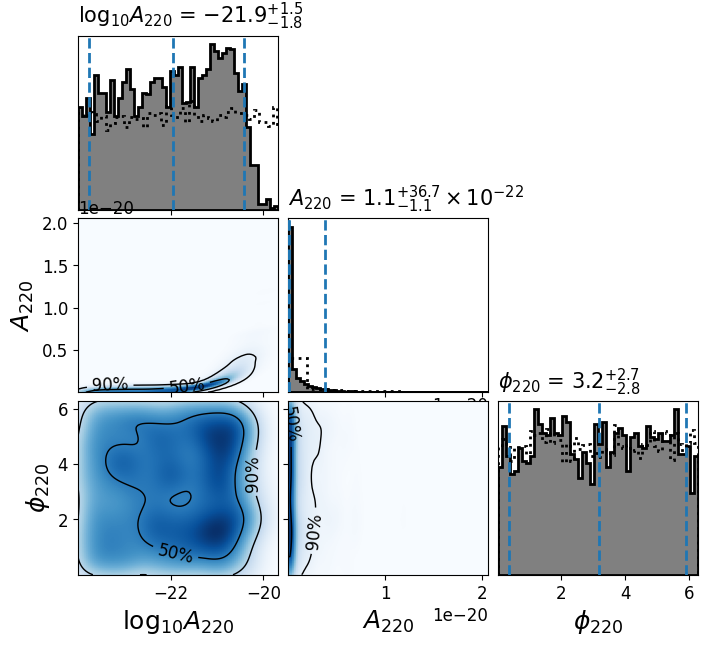

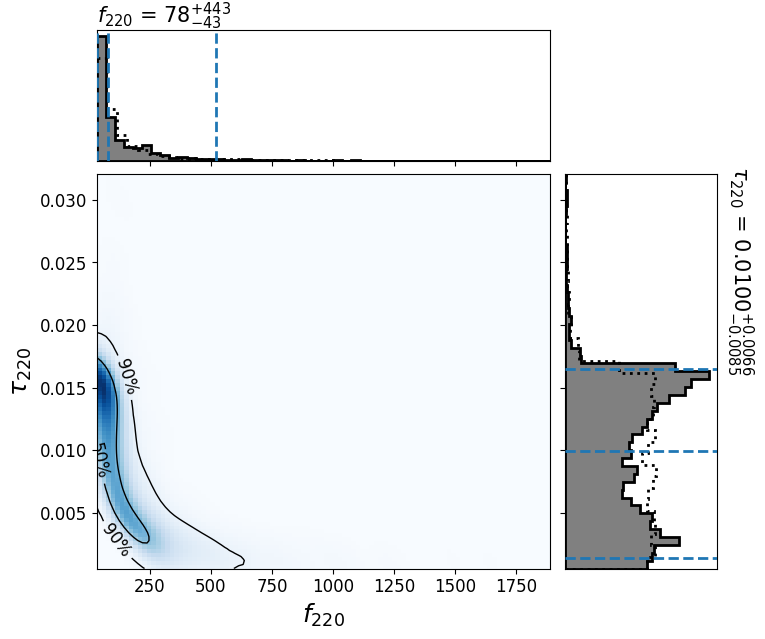

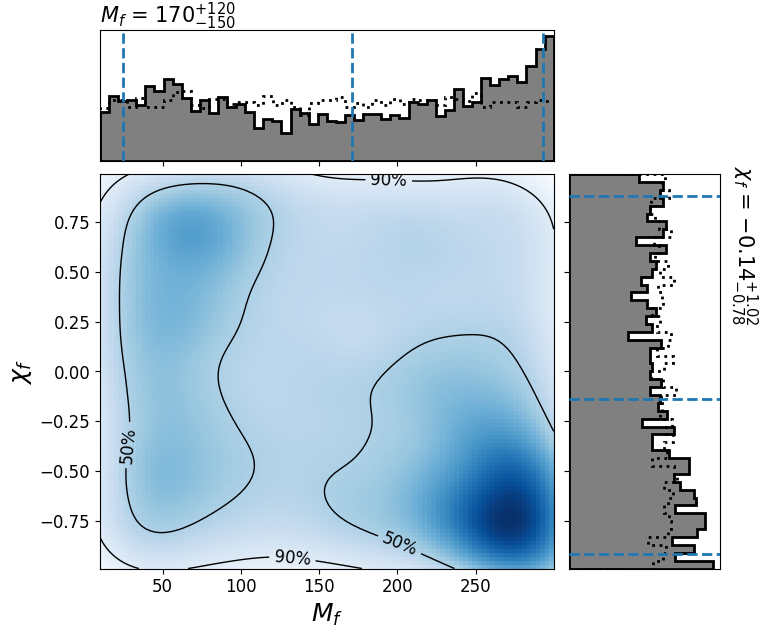

W6. GW150914_8ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $170^{+120}_{-150}$ | $300$ | $300$ |
| $\chi_f$ | $-0.14^{+1.02}_{-0.78}$ | $-0.97$ | $-0.97$ |
| $\iota$ | $1.6^{+1.1}_{-1.1}$ | $1.6$ | $1.6$ |
| $\log_{10}A_{220}$ | $-21.9^{+1.5}_{-1.8}$ | $-20.2$ | $-20.2$ |
| $\phi_{220}$ | $3.2^{+2.7}_{-2.8}$ | $2.5$ | $2.5$ |
| $f_{220}$ | $78^{+443}_{-43}$ | $32$ | $32$ |
| $\tau_{220}$ | $0.0100^{+0.0066}_{-0.0085}$ | $0.0167$ | $0.0167$ |
| $A_{220}$ | $1.1^{+36.7}_{-1.1}\times 10^{-22}$ | $6.81\times 10^{-21}$ | $6.81\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 3019
Link to File

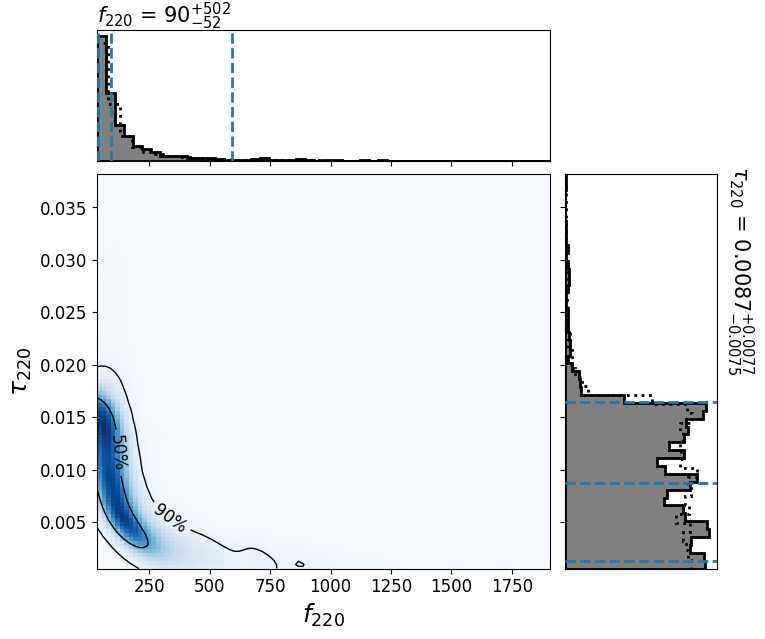

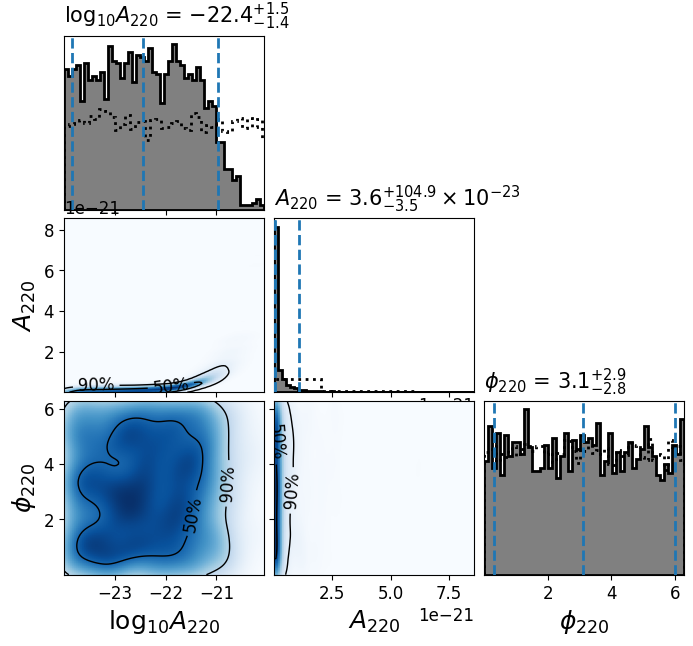

W7. GW150914_9ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $150^{+130}_{-130}$ | $160$ | $160$ |
| $\chi_f$ | $-0.03^{+0.93}_{-0.87}$ | $0.96$ | $0.96$ |
| $\iota$ | $1.6^{+1.1}_{-1.1}$ | $1.4$ | $1.4$ |
| $\log_{10}A_{220}$ | $-22.4^{+1.5}_{-1.4}$ | $-20.7$ | $-20.7$ |
| $\phi_{220}$ | $3.1^{+2.9}_{-2.8}$ | $5$ | $5$ |
| $f_{220}$ | $90^{+502}_{-52}$ | $154$ | $154$ |
| $\tau_{220}$ | $0.0087^{+0.0077}_{-0.0075}$ | $0.0159$ | $0.0159$ |
| $A_{220}$ | $3.6^{+104.9}_{-3.5}\times 10^{-23}$ | $1.780\times 10^{-21}$ | $1.780\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 2597
Link to File

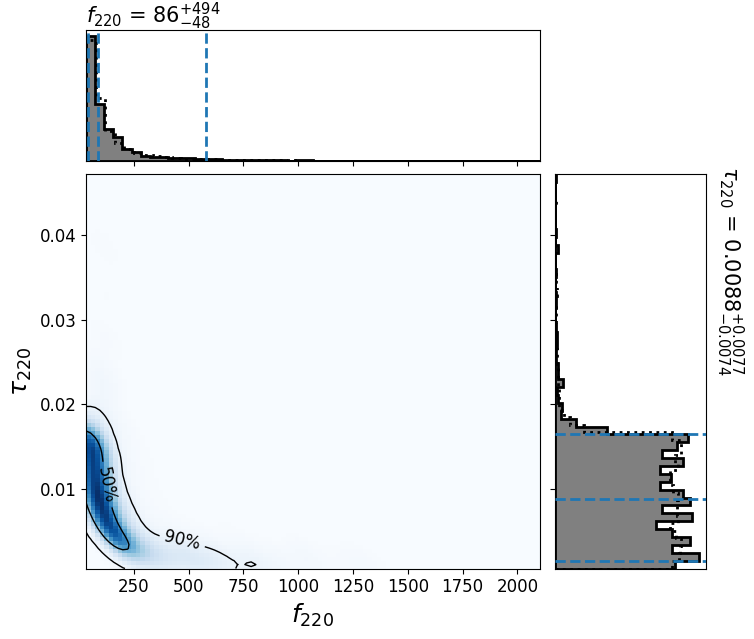

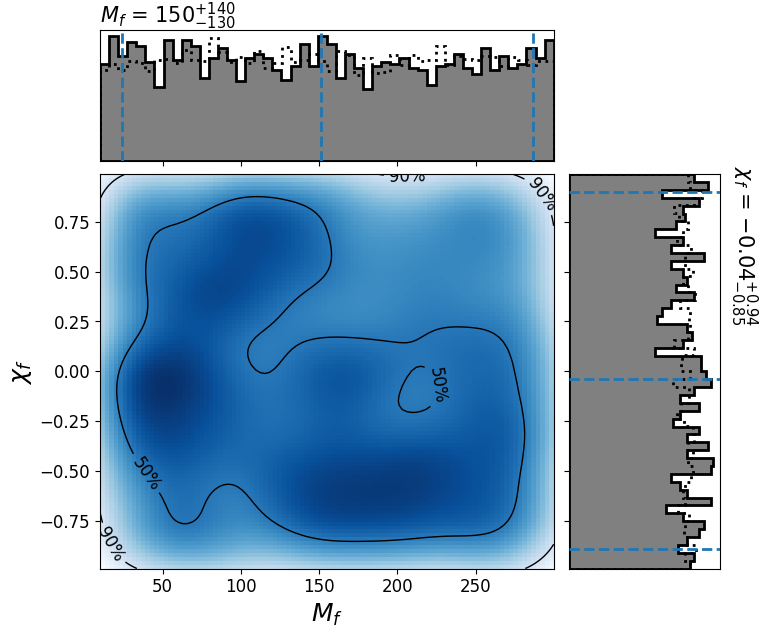

W8. GW150914_10ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $150^{+140}_{-130}$ | $160$ | $160$ |
| $\chi_f$ | $-0.04^{+0.94}_{-0.85}$ | $0.97$ | $0.97$ |
| $\iota$ | $1.6^{+1.1}_{-1.1}$ | $1.7$ | $1.7$ |
| $\log_{10}A_{220}$ | $-22.4^{+1.5}_{-1.4}$ | $-20.9$ | $-20.9$ |
| $\phi_{220}$ | $3.2^{+2.7}_{-2.9}$ | $2.4$ | $2.4$ |
| $f_{220}$ | $86^{+494}_{-48}$ | $156$ | $156$ |
| $\tau_{220}$ | $0.0088^{+0.0077}_{-0.0074}$ | $0.0170$ | $0.0170$ |
| $A_{220}$ | $3.8^{+108.9}_{-3.7}\times 10^{-23}$ | $1.149\times 10^{-21}$ | $1.149\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 2538
Link to File

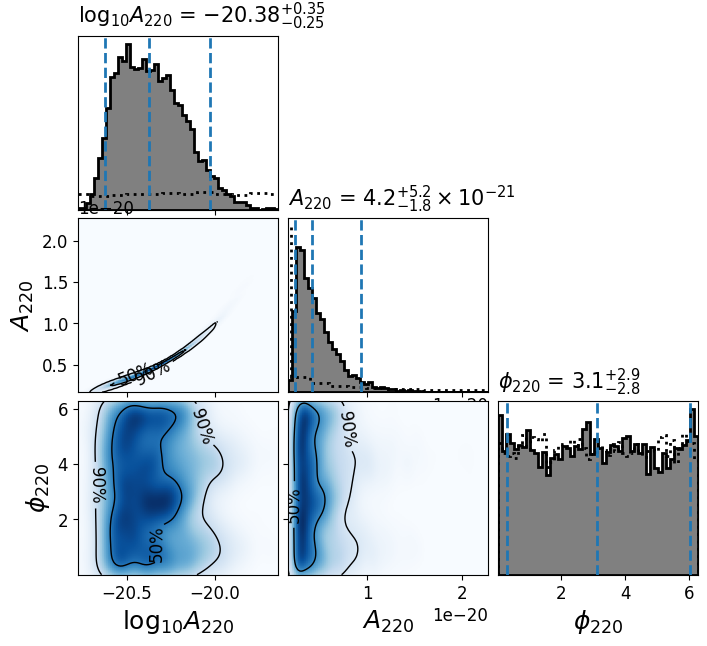

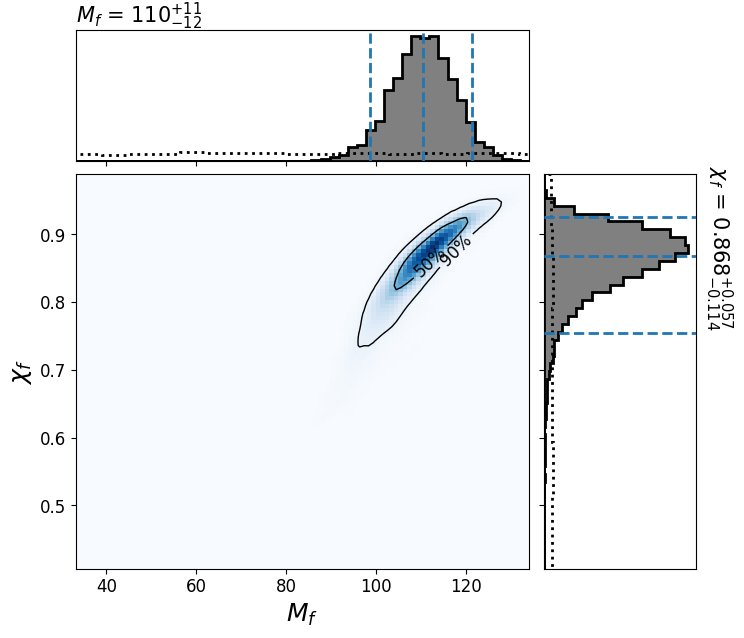

W9. GW150914_m3ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $110^{+11}_{-12}$ | $114$ | $113$ |
| $\chi_f$ | $0.868^{+0.057}_{-0.114}$ | $0.893$ | $0.882$ |
| $\iota$ | $2.22^{+0.63}_{-0.45}$ | $1.98$ | $2.19$ |
| $\log_{10}A_{220}$ | $-20.38^{+0.35}_{-0.25}$ | $-20.18$ | $-20.35$ |
| $\phi_{220}$ | $3.1^{+2.9}_{-2.8}$ | $0.8$ | $3.8$ |
| $f_{220}$ | $186.6^{+7}_{-8.5}$ | $188$ | $187.2$ |
| $\tau_{220}$ | $0.0079^{+0.0021}_{-0.0016}$ | $0.0085$ | $0.0082$ |
| $A_{220}$ | $4.2^{+5.2}_{-1.8}\times 10^{-21}$ | $6.6\times 10^{-21}$ | $4.5\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7145
Link to File

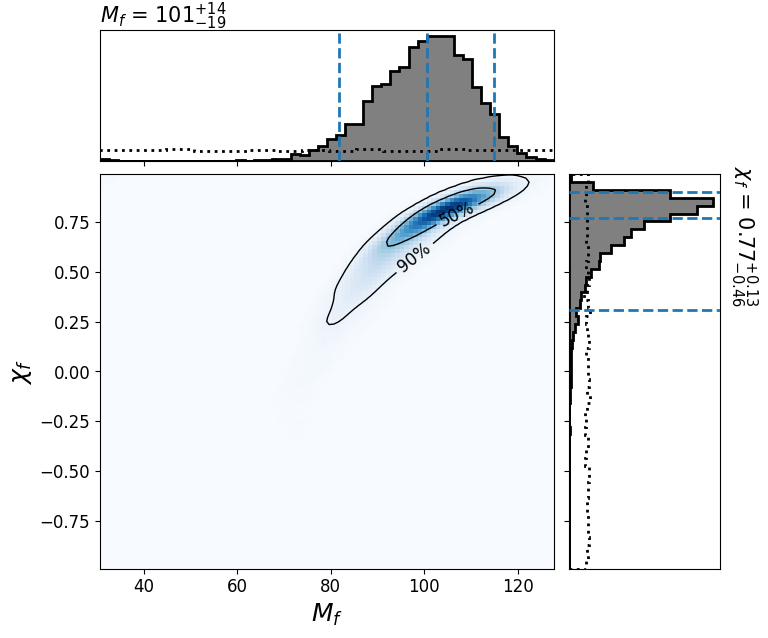

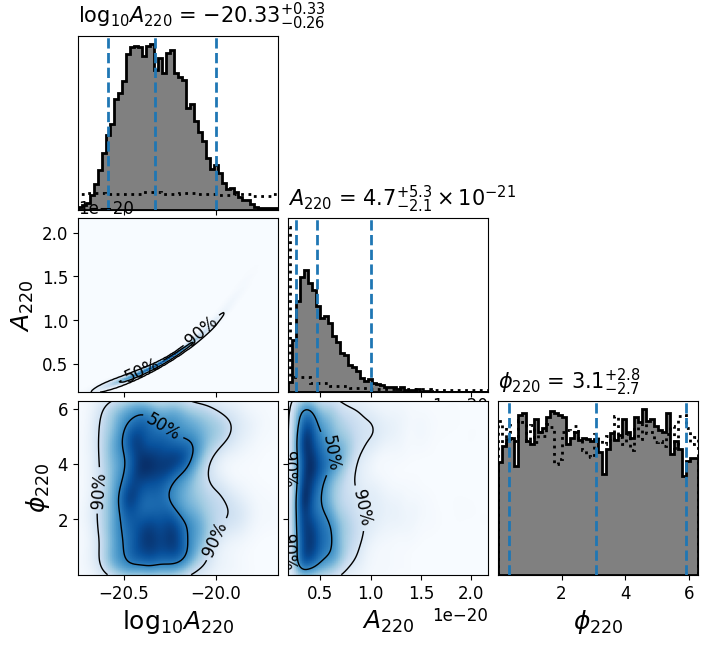

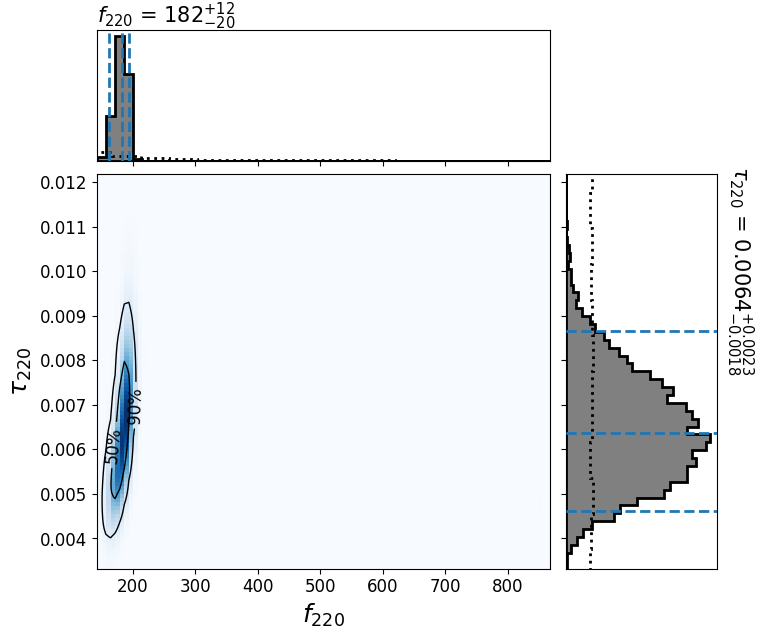

W10. GW150914_m2ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $101^{+14}_{-19}$ | $109$ | $106$ |
| $\chi_f$ | $0.77^{+0.13}_{-0.46}$ | $0.86$ | $0.84$ |
| $\iota$ | $2.21^{+0.64}_{-0.45}$ | $1.91$ | $2.01$ |
| $\log_{10}A_{220}$ | $-20.33^{+0.33}_{-0.26}$ | $-20.11$ | $-20.19$ |
| $\phi_{220}$ | $3.1^{+2.8}_{-2.7}$ | $1.8$ | $2$ |
| $f_{220}$ | $182^{+12}_{-20}$ | $188$ | $187$ |
| $\tau_{220}$ | $0.0064^{+0.0023}_{-0.0018}$ | $0.0077$ | $0.0072$ |
| $A_{220}$ | $4.7^{+5.3}_{-2.1}\times 10^{-21}$ | $7.7\times 10^{-21}$ | $6.5\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 8053
Link to File

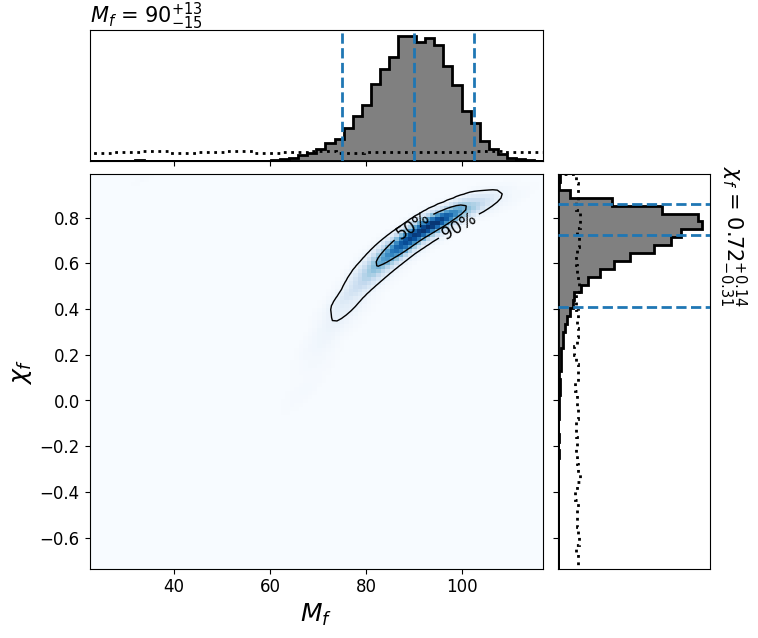

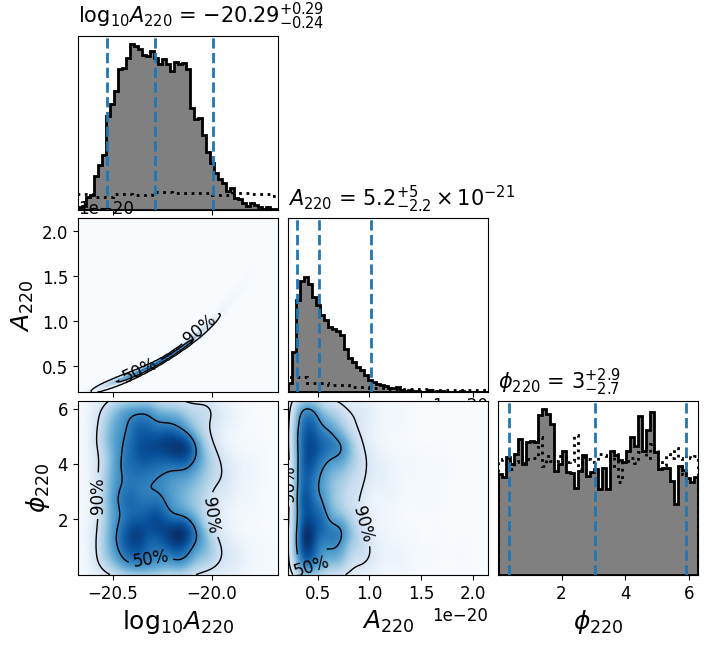

W11. GW150914_m1ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $90^{+13}_{-15}$ | $93$ | $91$ |
| $\chi_f$ | $0.72^{+0.14}_{-0.31}$ | $0.77$ | $0.74$ |
| $\iota$ | $2.22^{+0.63}_{-0.47}$ | $1.86$ | $2.06$ |
| $\log_{10}A_{220}$ | $-20.29^{+0.29}_{-0.24}$ | $-20.15$ | $-20.23$ |
| $\phi_{220}$ | $3^{+2.9}_{-2.7}$ | $4.5$ | $4.4$ |
| $f_{220}$ | $195^{+10}_{-10}$ | $197$ | $197$ |
| $\tau_{220}$ | $0.0055^{+0.0016}_{-0.0013}$ | $0.0059$ | $0.0057$ |
| $A_{220}$ | $5.2^{+5}_{-2.2}\times 10^{-21}$ | $7\times 10^{-21}$ | $5.9\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7179
Link to File

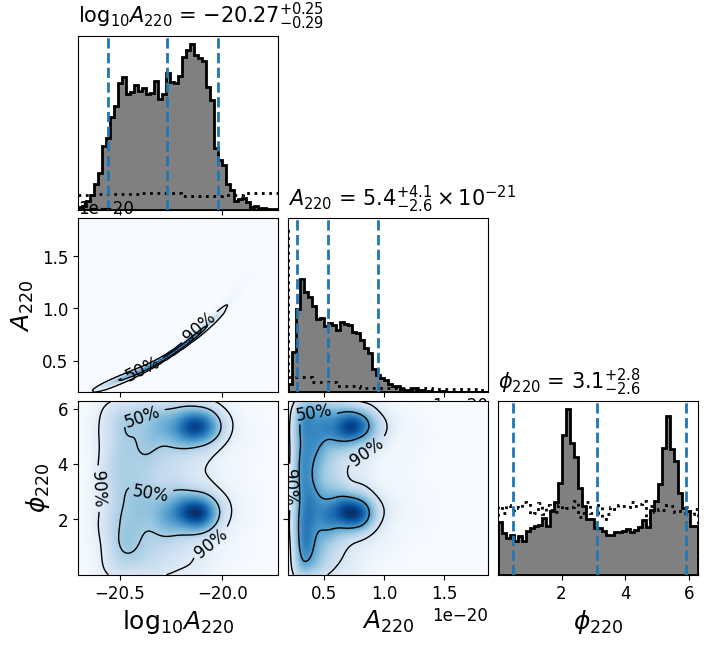

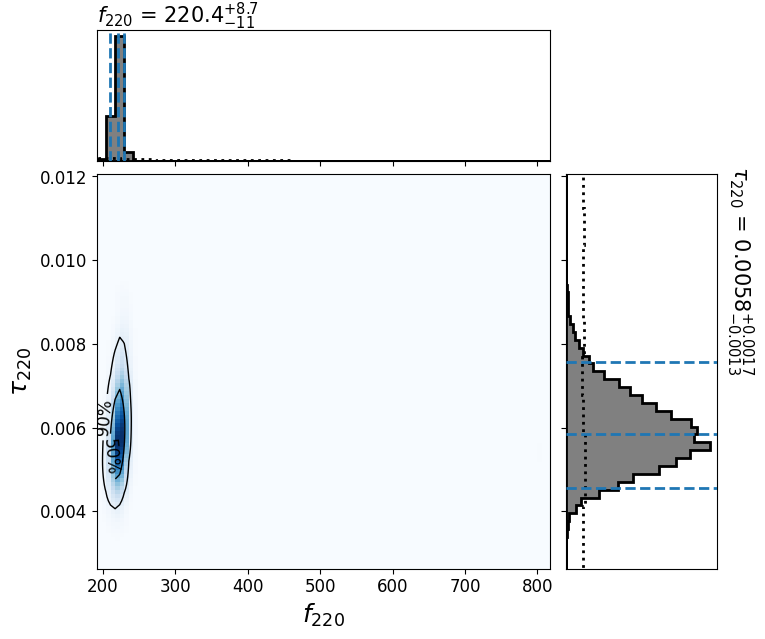

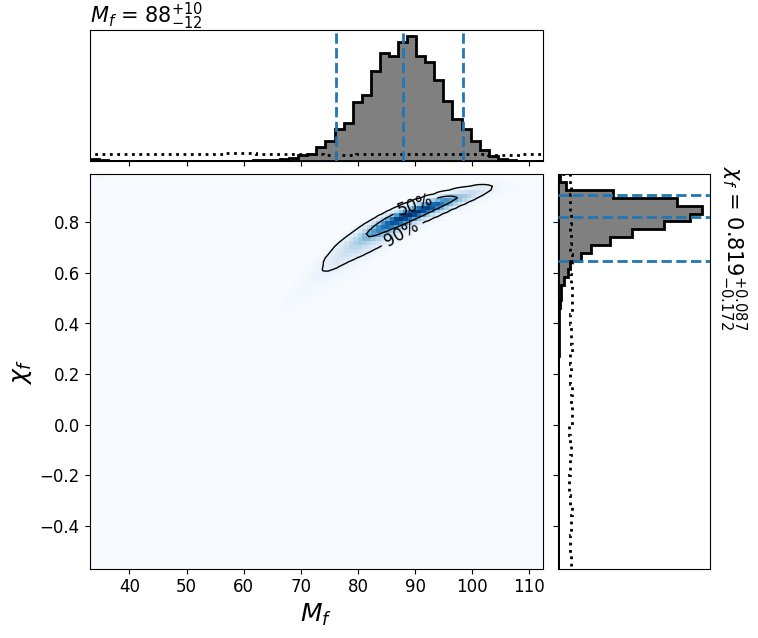

W12. GW150914_0ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $88^{+10}_{-12}$ | $90$ | $90$ |
| $\chi_f$ | $0.819^{+0.087}_{-0.172}$ | $0.854$ | $0.854$ |
| $\iota$ | $2.08^{+0.76}_{-1.00}$ | $1.59$ | $1.59$ |
| $\log_{10}A_{220}$ | $-20.27^{+0.25}_{-0.29}$ | $-20.08$ | $-20.08$ |
| $\phi_{220}$ | $3.1^{+2.8}_{-2.6}$ | $2.2$ | $2.2$ |
| $f_{220}$ | $220.4^{+8.7}_{-11}$ | $224$ | $224$ |
| $\tau_{220}$ | $0.0058^{+0.0017}_{-0.0013}$ | $0.0063$ | $0.0063$ |
| $A_{220}$ | $5.4^{+4.1}_{-2.6}\times 10^{-21}$ | $8.2\times 10^{-21}$ | $8.2\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 7958
Link to File
W13. GW150914_1ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $88^{+10}_{-13}$ | $90$ | $90$ |
| $\chi_f$ | $0.852^{+0.075}_{-0.206}$ | $0.874$ | $0.874$ |
| $\iota$ | $1.91^{+0.87}_{-1.21}$ | $1.63$ | $1.63$ |
| $\log_{10}A_{220}$ | $-20.29^{+0.29}_{-0.32}$ | $-20.10$ | $-20.10$ |
| $\phi_{220}$ | $3.1^{+2.9}_{-2.9}$ | $3.4$ | $3.4$ |
| $f_{220}$ | $229^{+10}_{-16}$ | $231$ | $231$ |
| $\tau_{220}$ | $0.0061^{+0.0020}_{-0.0016}$ | $0.0065$ | $0.0065$ |
| $A_{220}$ | $5.2^{+5}_{-2.7}\times 10^{-21}$ | $7.9\times 10^{-21}$ | $7.9\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 8752
Link to File

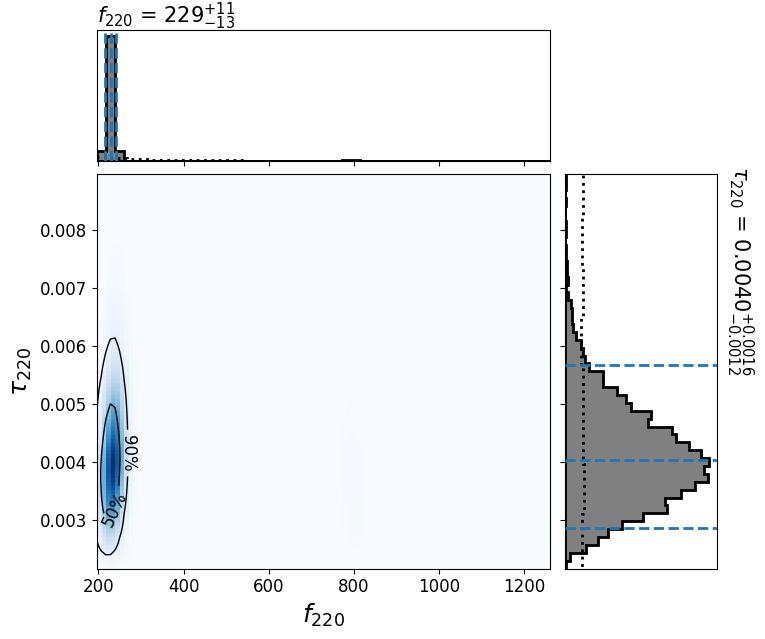

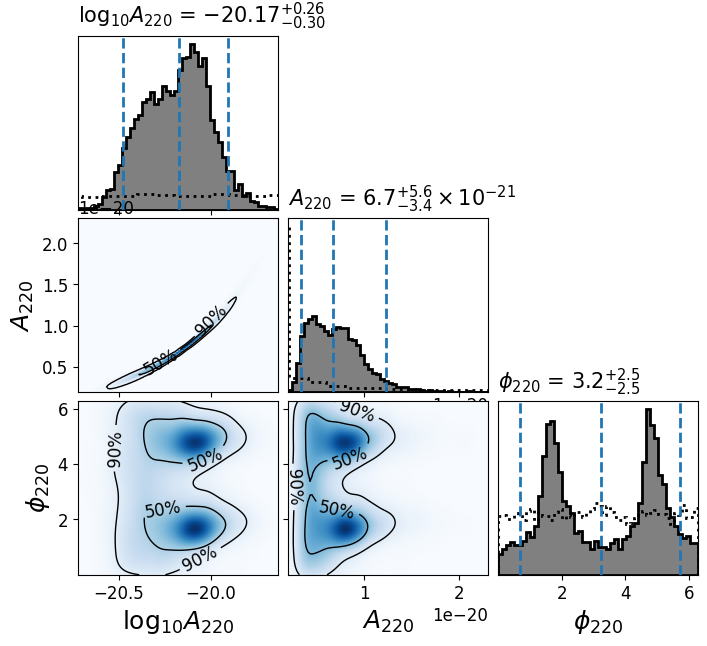

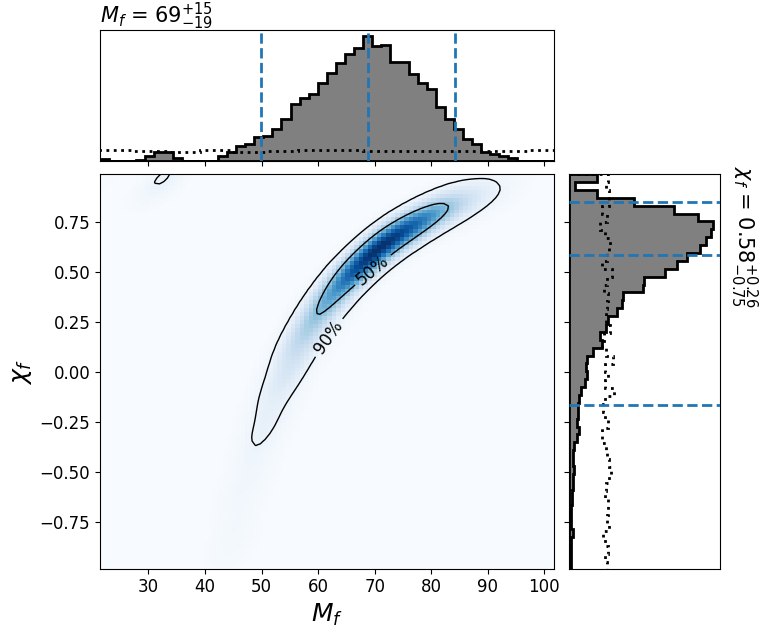

W14. GW150914_2ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $69^{+15}_{-19}$ | $73$ | $73$ |
| $\chi_f$ | $0.58^{+0.26}_{-0.75}$ | $0.68$ | $0.68$ |
| $\iota$ | $1.99^{+0.81}_{-0.81}$ | $1.59$ | $1.59$ |
| $\log_{10}A_{220}$ | $-20.17^{+0.26}_{-0.30}$ | $-20.05$ | $-20.05$ |
| $\phi_{220}$ | $3.2^{+2.5}_{-2.5}$ | $1.6$ | $1.6$ |
| $f_{220}$ | $229^{+11}_{-13}$ | $230$ | $230$ |
| $\tau_{220}$ | $0.0040^{+0.0016}_{-0.0012}$ | $0.0044$ | $0.0044$ |
| $A_{220}$ | $6.7^{+5.6}_{-3.4}\times 10^{-21}$ | $8.8\times 10^{-21}$ | $8.8\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 8622
Link to File

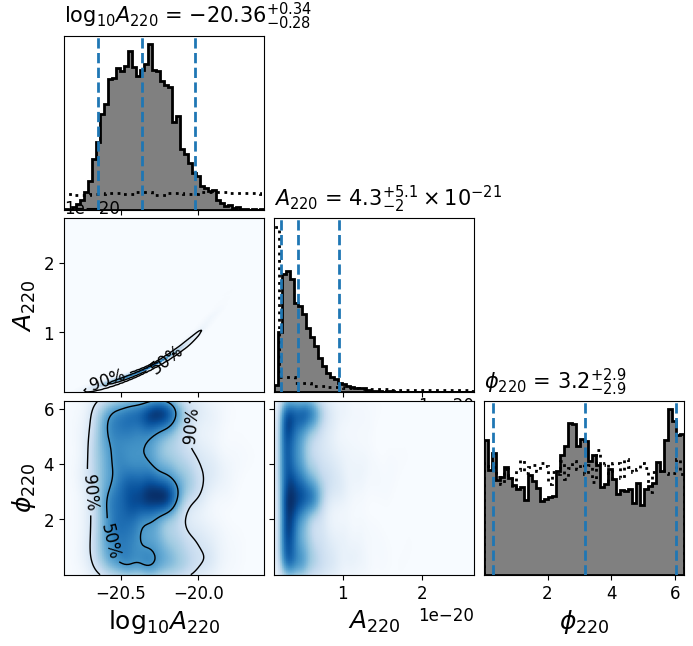

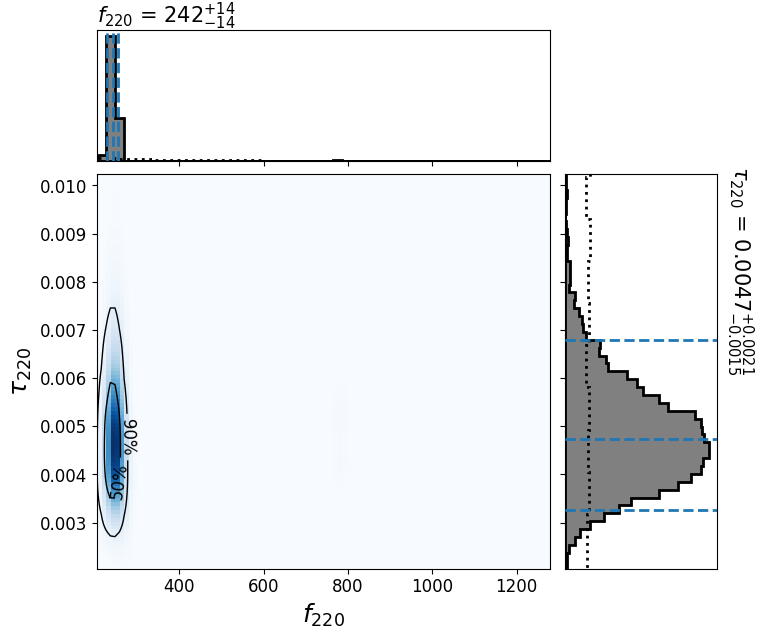

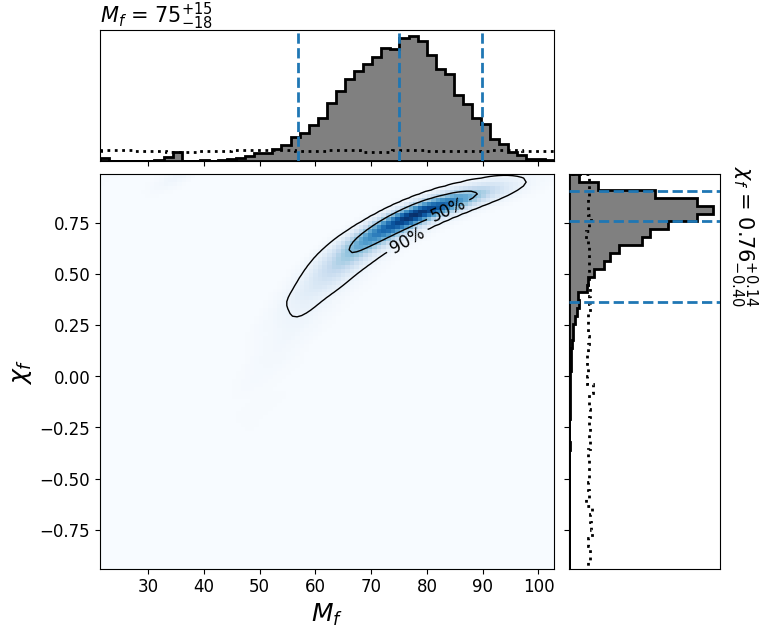

W15. GW150914_3ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $75^{+15}_{-18}$ | $81$ | $81$ |
| $\chi_f$ | $0.76^{+0.14}_{-0.40}$ | $0.84$ | $0.84$ |
| $\iota$ | $2.13^{+0.69}_{-0.75}$ | $1.67$ | $1.67$ |
| $\log_{10}A_{220}$ | $-20.36^{+0.34}_{-0.28}$ | $-20.18$ | $-20.18$ |
| $\phi_{220}$ | $3.2^{+2.9}_{-2.9}$ | $2.8$ | $2.8$ |
| $f_{220}$ | $242^{+14}_{-14}$ | $245$ | $245$ |
| $\tau_{220}$ | $0.0047^{+0.0021}_{-0.0015}$ | $0.0055$ | $0.0055$ |
| $A_{220}$ | $4.3^{+5.1}_{-2}\times 10^{-21}$ | $6.6\times 10^{-21}$ | $6.6\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 8164
Link to File

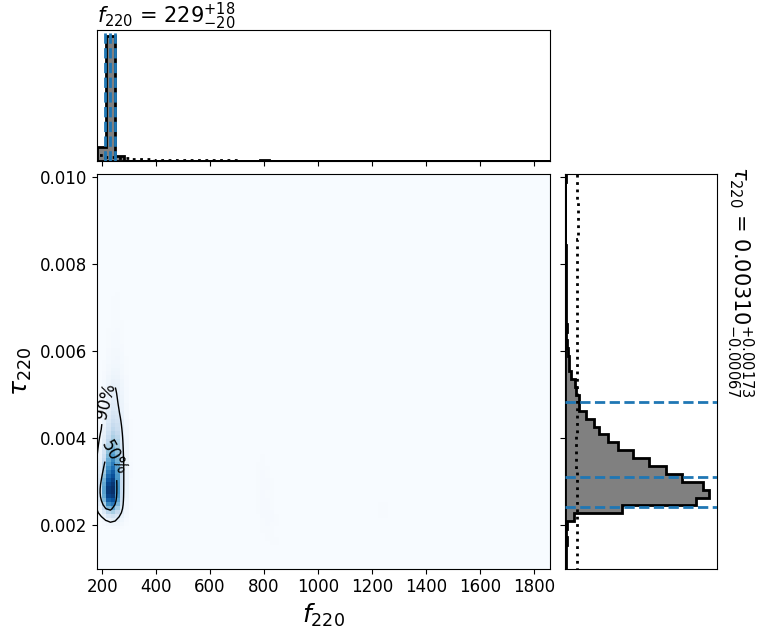

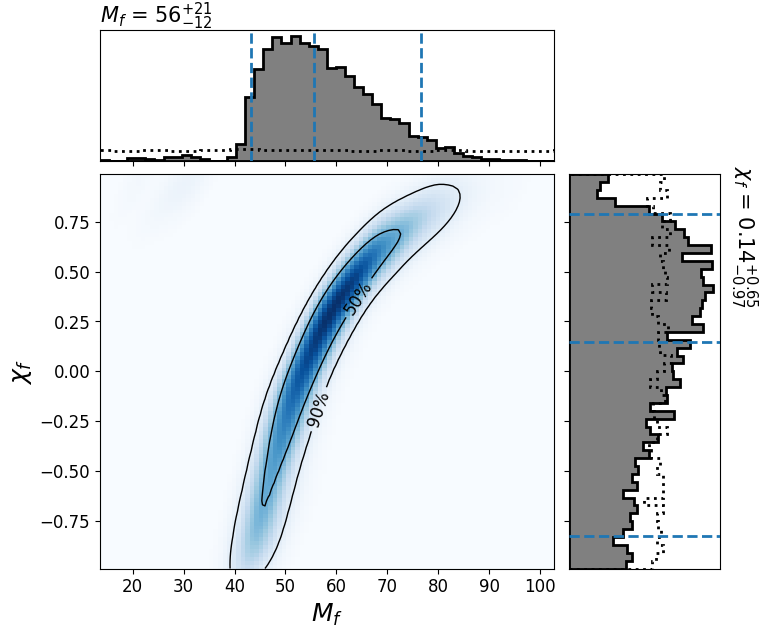

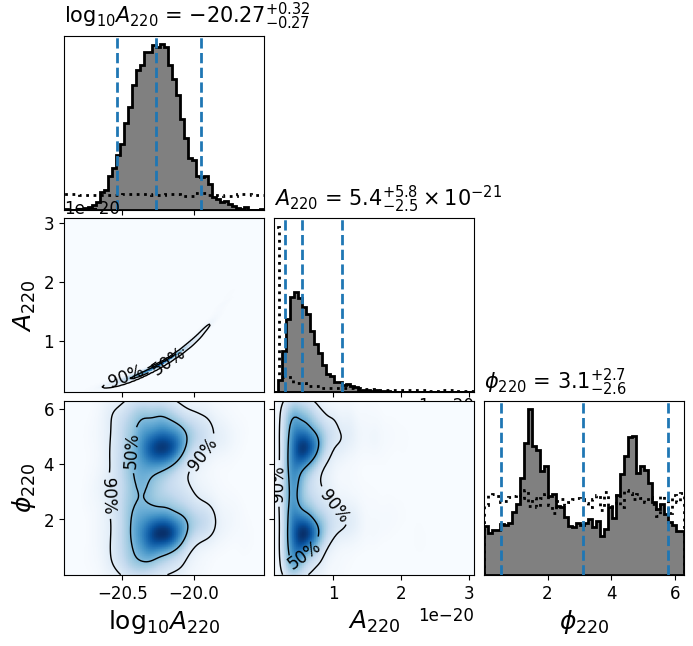

W16. GW150914_4ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $56^{+21}_{-12}$ | $63$ | $63$ |
| $\chi_f$ | $0.14^{+0.65}_{-0.97}$ | $0.45$ | $0.45$ |
| $\iota$ | $2.10^{+0.72}_{-0.69}$ | $1.68$ | $1.68$ |
| $\log_{10}A_{220}$ | $-20.27^{+0.32}_{-0.27}$ | $-20.13$ | $-20.13$ |
| $\phi_{220}$ | $3.1^{+2.7}_{-2.6}$ | $1.5$ | $1.5$ |
| $f_{220}$ | $229^{+18}_{-20}$ | $230$ | $230$ |
| $\tau_{220}$ | $0.00310^{+0.00173}_{-0.00067}$ | $0.00360$ | $0.00360$ |
| $A_{220}$ | $5.4^{+5.8}_{-2.5}\times 10^{-21}$ | $7.4\times 10^{-21}$ | $7.4\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 6633
Link to File
