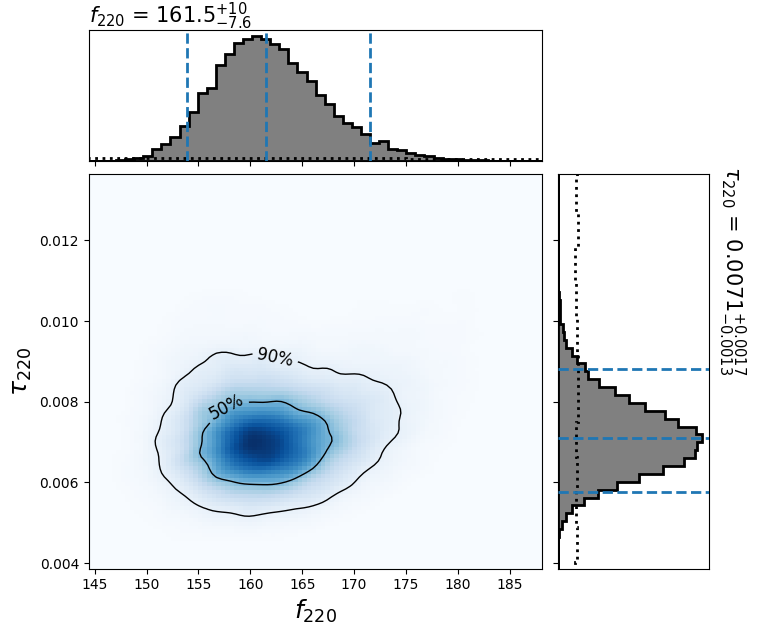

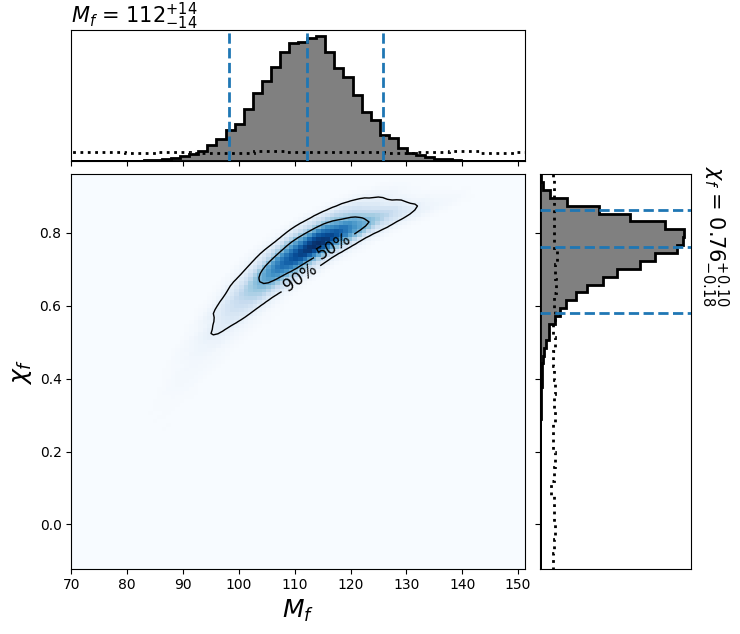

W1. GW150914_m5ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $112^{+14}_{-14}$ | -- | $112$ |
| $\chi_f$ | $0.76^{+0.10}_{-0.18}$ | -- | $0.76$ |
| $\iota$ | $2.22^{+0.63}_{-0.46}$ | -- | $1.87$ |
| $\log_{10}A_{220}$ | $-20.28^{+0.28}_{-0.24}$ | -- | $-20.13$ |
| $\phi_{220}$ | $3.1^{+2.7}_{-2.7}$ | -- | $1.5$ |
| $f_{220}$ | $161.5^{+10}_{-7.6}$ | -- | $162.1$ |
| $\tau_{220}$ | $0.0071^{+0.0017}_{-0.0013}$ | -- | $0.0071$ |
| $A_{220}$ | $5.2^{+4.8}_{-2.2}\times 10^{-21}$ | -- | $7.4\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 55298
Link to File

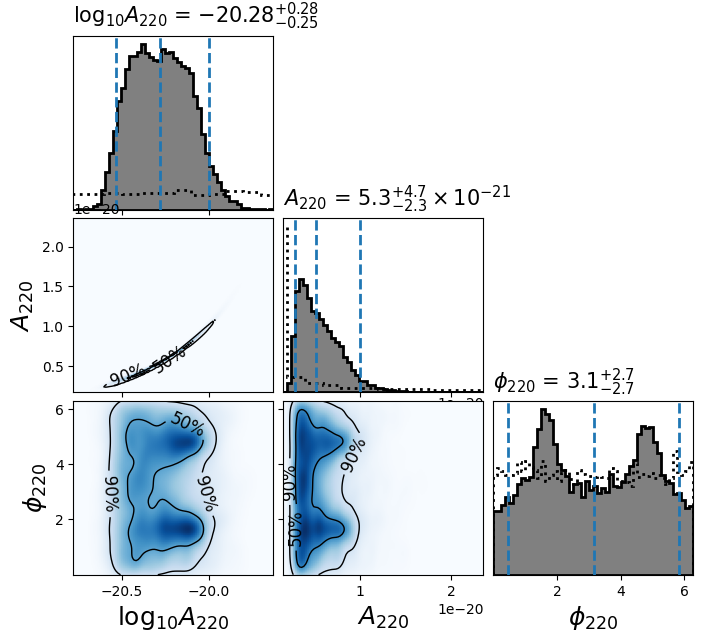

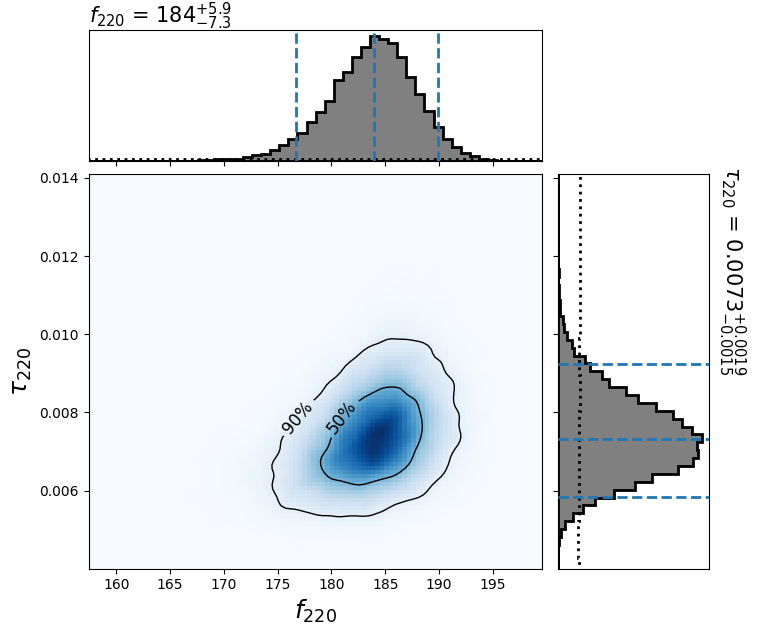

W2. GW150914_m4ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $108^{+11}_{-13}$ | -- | $110$ |
| $\chi_f$ | $0.839^{+0.070}_{-0.137}$ | -- | $0.859$ |
| $\iota$ | $2.21^{+0.64}_{-0.48}$ | -- | $1.69$ |
| $\log_{10}A_{220}$ | $-20.28^{+0.28}_{-0.25}$ | -- | $-20.07$ |
| $\phi_{220}$ | $3.1^{+2.7}_{-2.7}$ | -- | $4.7$ |
| $f_{220}$ | $184^{+5.9}_{-7.3}$ | -- | $185.9$ |
| $\tau_{220}$ | $0.0073^{+0.0019}_{-0.0015}$ | -- | $0.0077$ |
| $A_{220}$ | $5.3^{+4.7}_{-2.3}\times 10^{-21}$ | -- | $8.5\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 60262
Link to File

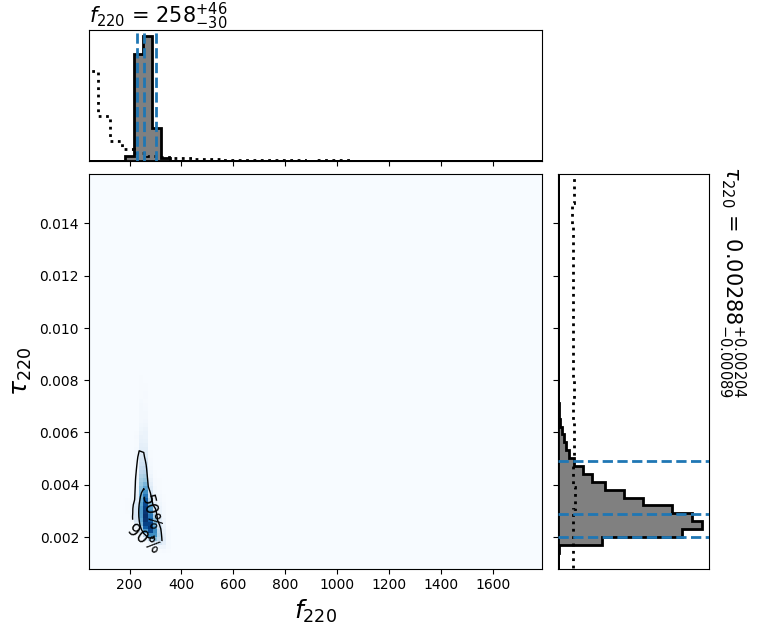

W3. GW150914_5ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $51^{+25}_{-15}$ | -- | $67$ |
| $\chi_f$ | $0.26^{+0.53}_{-1.01}$ | -- | $0.67$ |
| $\iota$ | $1.88^{+0.87}_{-1.26}$ | -- | $1.60$ |
| $\log_{10}A_{220}$ | $-20.37^{+0.31}_{-0.31}$ | -- | $-20.27$ |
| $\phi_{220}$ | $3.1^{+2.8}_{-2.7}$ | -- | $5.5$ |
| $f_{220}$ | $258^{+46}_{-30}$ | -- | $250$ |
| $\tau_{220}$ | $0.00288^{+0.00204}_{-0.00089}$ | -- | $0.00404$ |
| $A_{220}$ | $4.2^{+4.4}_{-2.1}\times 10^{-21}$ | -- | $5.3\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 47354
Link to File

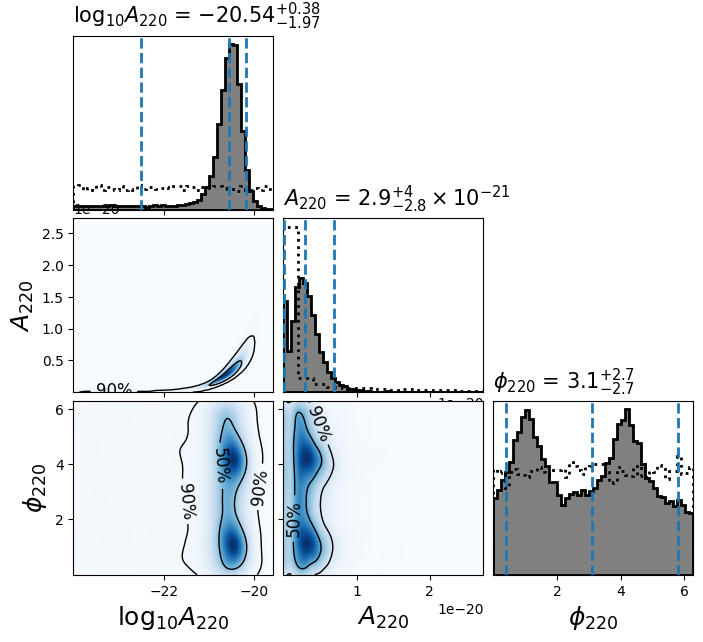

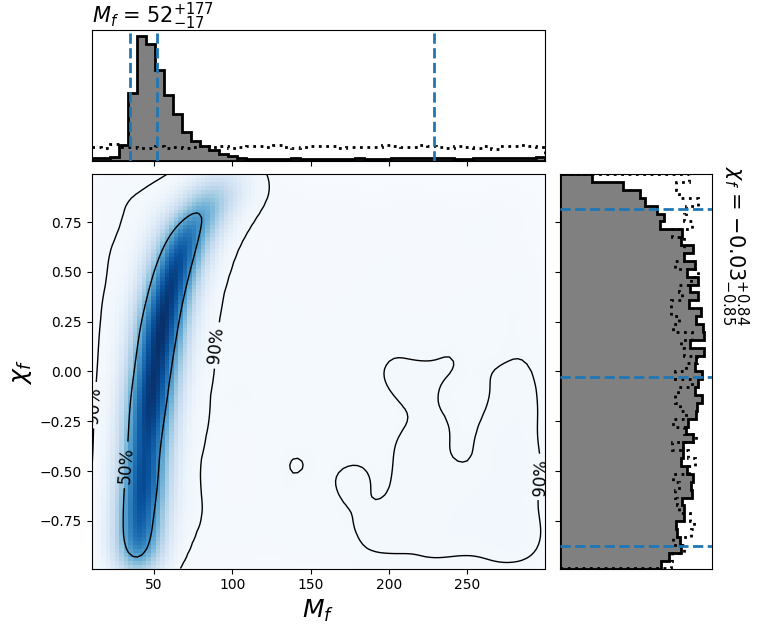

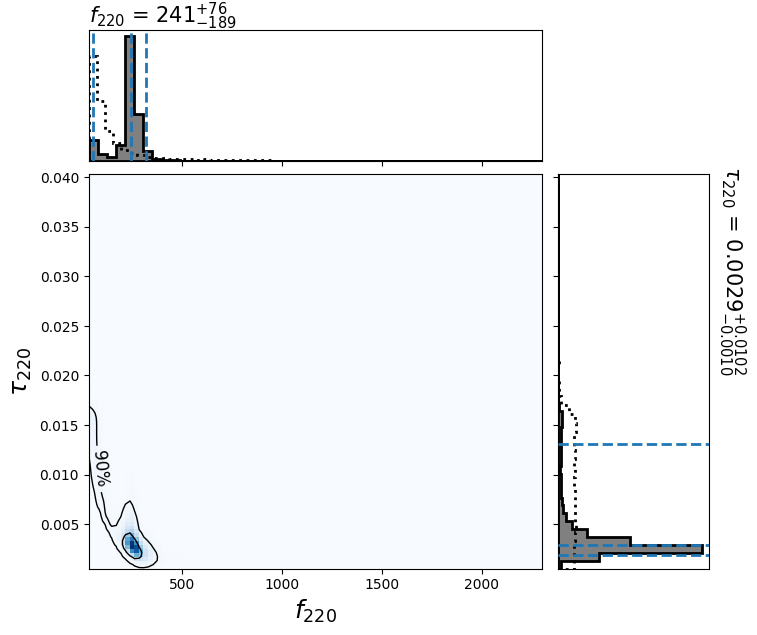

W4. GW150914_6ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $52^{+177}_{-17}$ | -- | $41$ |
| $\chi_f$ | $-0.03^{+0.84}_{-0.85}$ | -- | $-0.63$ |
| $\iota$ | $1.5^{+1.2}_{-1}$ | -- | $1.6$ |
| $\log_{10}A_{220}$ | $-20.54^{+0.38}_{-1.97}$ | -- | $-20.27$ |
| $\phi_{220}$ | $3.1^{+2.7}_{-2.7}$ | -- | $1$ |
| $f_{220}$ | $241^{+76}_{-189}$ | -- | $246$ |
| $\tau_{220}$ | $0.0029^{+0.0102}_{-0.0010}$ | -- | $0.0023$ |
| $A_{220}$ | $2.9^{+4}_{-2.8}\times 10^{-21}$ | -- | $5.4\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 42384
Link to File

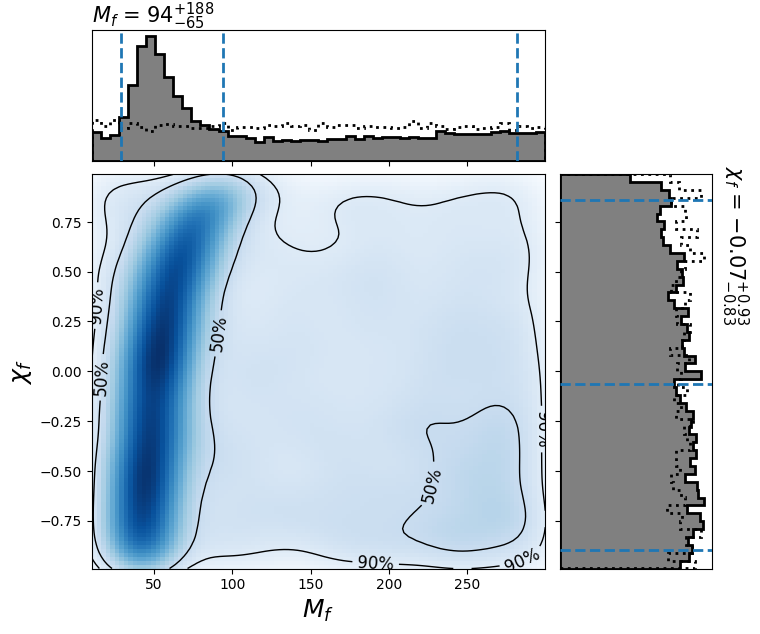

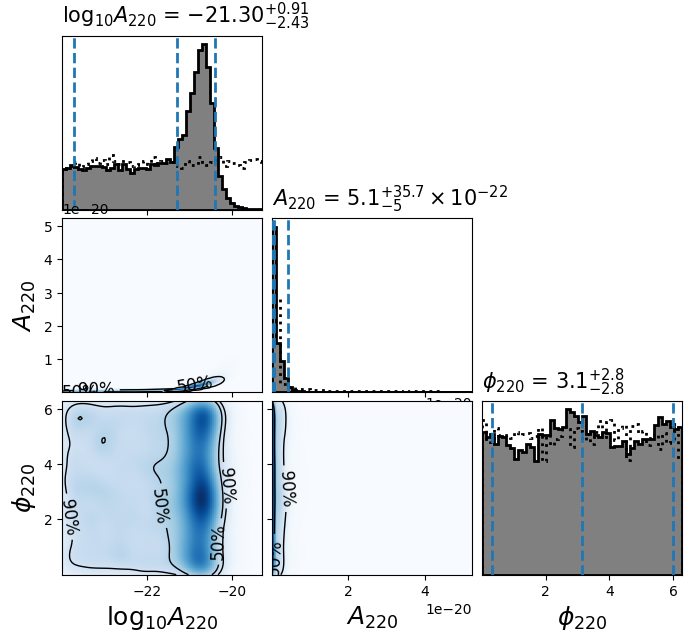

W5. GW150914_7ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $94^{+188}_{-65}$ | -- | $89$ |
| $\chi_f$ | $-0.07^{+0.93}_{-0.83}$ | -- | $0.90$ |
| $\iota$ | $1.6^{+1.1}_{-1.1}$ | -- | $1.5$ |
| $\log_{10}A_{220}$ | $-21.30^{+0.91}_{-2.43}$ | -- | $-20.51$ |
| $\phi_{220}$ | $3.1^{+2.8}_{-2.8}$ | -- | $5.8$ |
| $f_{220}$ | $140^{+300}_{-100}$ | -- | $240$ |
| $\tau_{220}$ | $0.0057^{+0.0105}_{-0.0040}$ | -- | $0.0067$ |
| $A_{220}$ | $5.1^{+35.7}_{-5}\times 10^{-22}$ | -- | $3.06\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 34203
Link to File

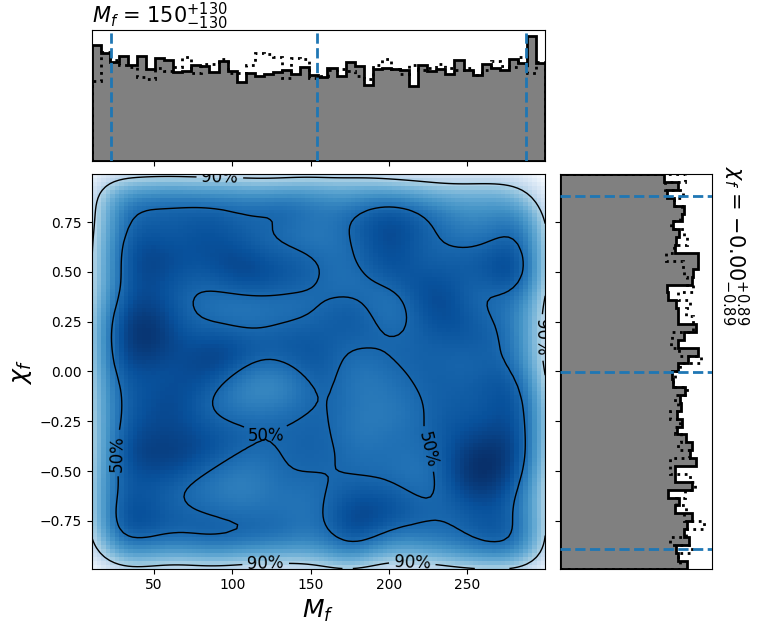

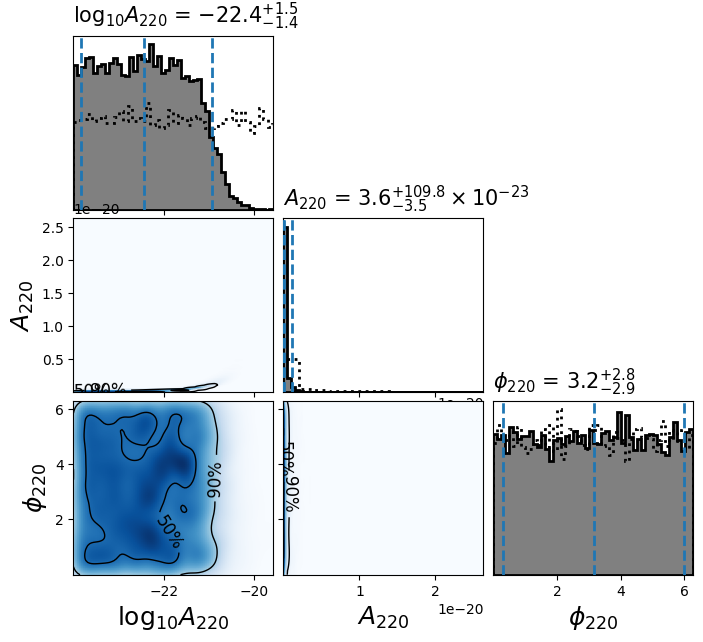

W6. GW150914_8ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $150^{+130}_{-130}$ | -- | $160$ |
| $\chi_f$ | $-0.00^{+0.89}_{-0.89}$ | -- | $0.96$ |
| $\iota$ | $1.6^{+1.1}_{-1.1}$ | -- | $1.5$ |
| $\log_{10}A_{220}$ | $-22.4^{+1.5}_{-1.4}$ | -- | $-21$ |
| $\phi_{220}$ | $3.2^{+2.8}_{-2.9}$ | -- | $0.5$ |
| $f_{220}$ | $86^{+492}_{-48}$ | -- | $154$ |
| $\tau_{220}$ | $0.0089^{+0.0076}_{-0.0076}$ | -- | $0.0161$ |
| $A_{220}$ | $3.6^{+109.8}_{-3.5}\times 10^{-23}$ | -- | $1.105\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 21995
Link to File

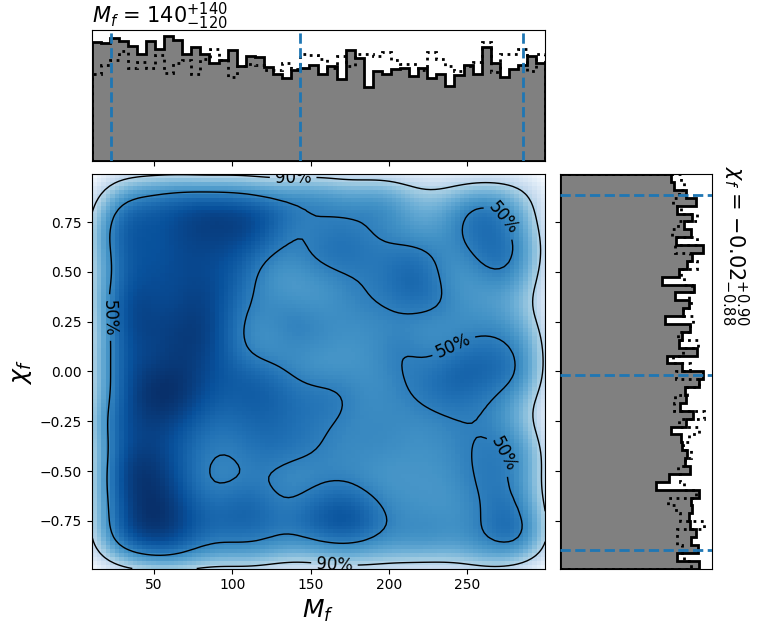

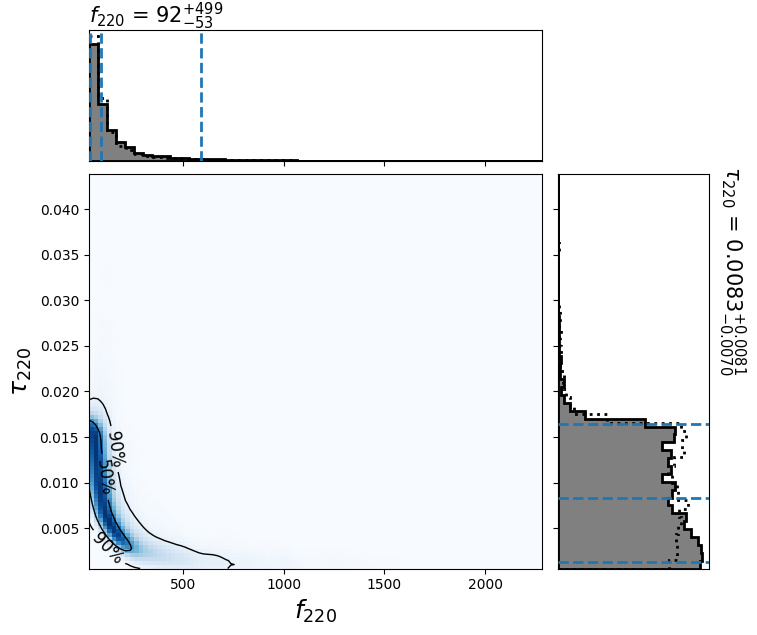

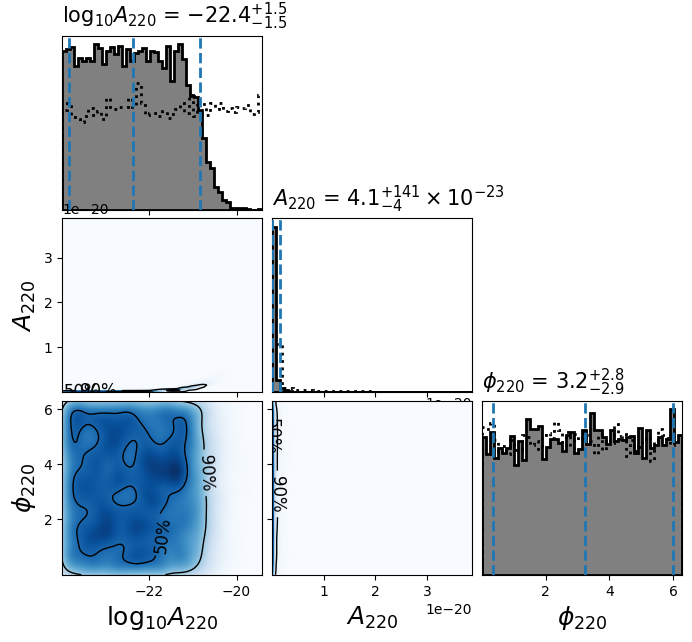

W7. GW150914_9ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $140^{+140}_{-120}$ | -- | $170$ |
| $\chi_f$ | $-0.02^{+0.90}_{-0.88}$ | -- | $0.98$ |
| $\iota$ | $1.6^{+1.1}_{-1.1}$ | -- | $1.5$ |
| $\log_{10}A_{220}$ | $-22.4^{+1.5}_{-1.5}$ | -- | $-20.9$ |
| $\phi_{220}$ | $3.2^{+2.8}_{-2.9}$ | -- | $1.9$ |
| $f_{220}$ | $92^{+499}_{-53}$ | -- | $154$ |
| $\tau_{220}$ | $0.0083^{+0.0081}_{-0.0070}$ | -- | $0.0229$ |
| $A_{220}$ | $4.1^{+141}_{-4}\times 10^{-23}$ | -- | $1.183\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 24684
Link to File

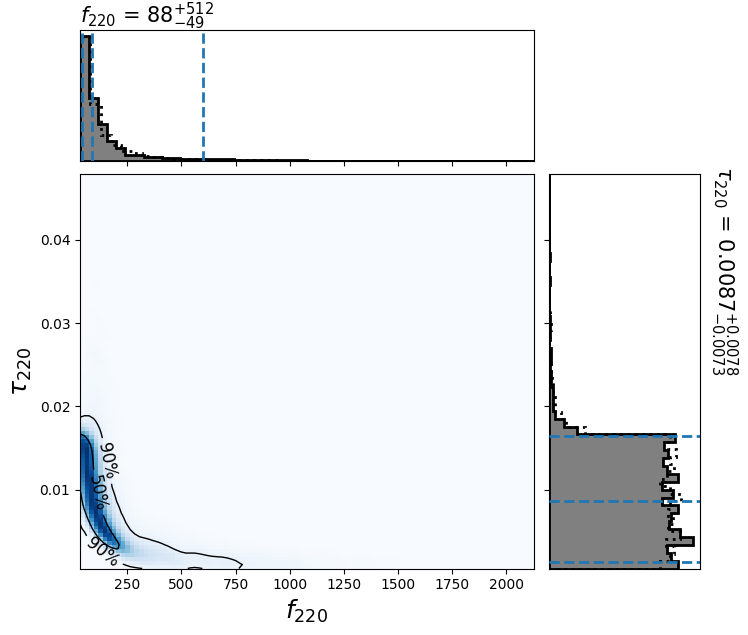

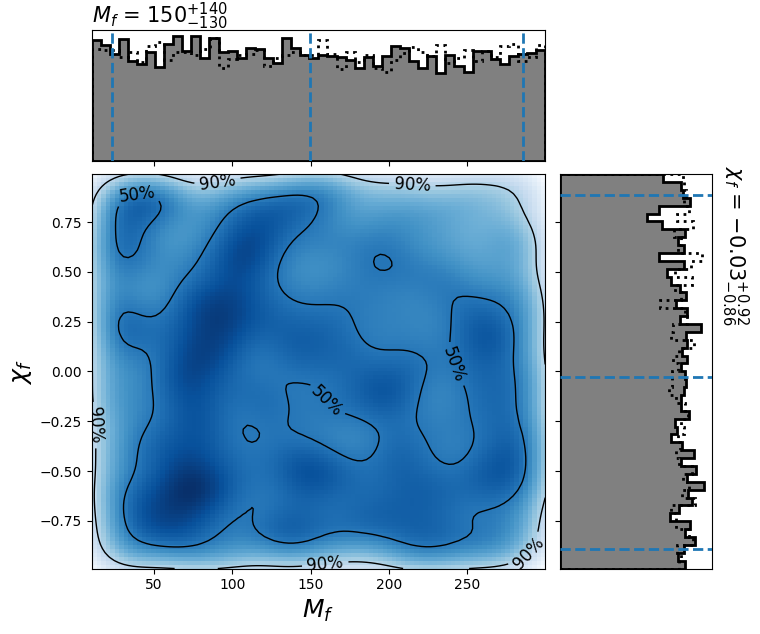

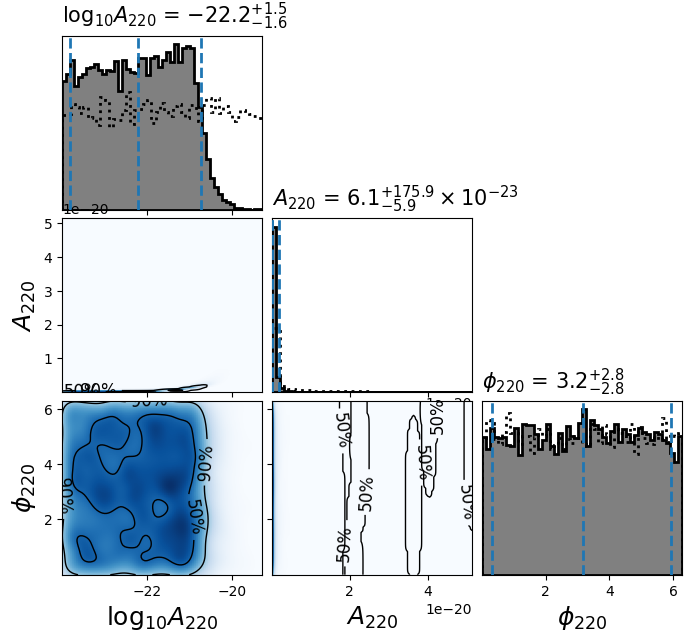

W8. GW150914_10ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $150^{+140}_{-130}$ | -- | $160$ |
| $\chi_f$ | $-0.03^{+0.92}_{-0.86}$ | -- | $0.97$ |
| $\iota$ | $1.5^{+1.1}_{-1.1}$ | -- | $1.6$ |
| $\log_{10}A_{220}$ | $-22.2^{+1.5}_{-1.6}$ | -- | $-20.9$ |
| $\phi_{220}$ | $3.2^{+2.8}_{-2.8}$ | -- | $2.4$ |
| $f_{220}$ | $88^{+512}_{-49}$ | -- | $158$ |
| $\tau_{220}$ | $0.0087^{+0.0078}_{-0.0073}$ | -- | $0.0181$ |
| $A_{220}$ | $6.1^{+175.9}_{-5.9}\times 10^{-23}$ | -- | $1.259\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 26177
Link to File

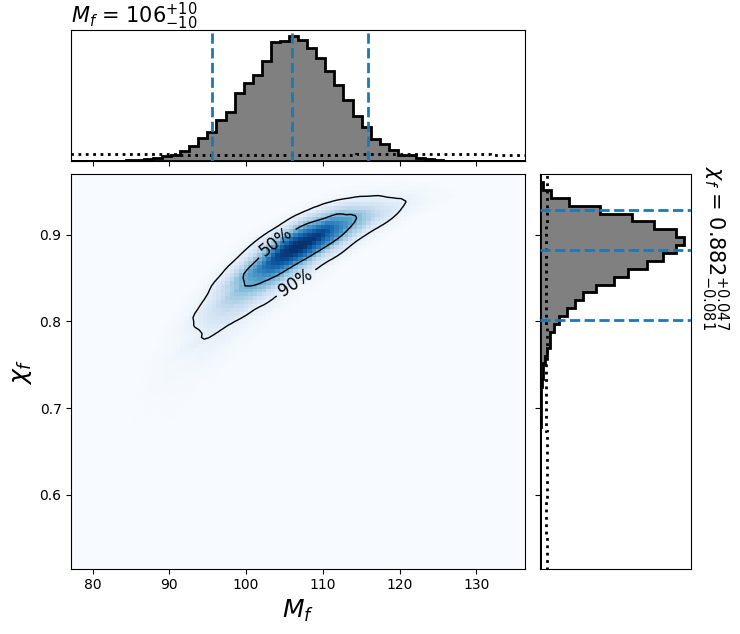

W9. GW150914_m3ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $106^{+10}_{-10}$ | -- | $107$ |
| $\chi_f$ | $0.882^{+0.047}_{-0.081}$ | -- | $0.889$ |
| $\iota$ | $2.20^{+0.65}_{-0.45}$ | -- | $2.05$ |
| $\log_{10}A_{220}$ | $-20.34^{+0.32}_{-0.26}$ | -- | $-20.27$ |
| $\phi_{220}$ | $3.1^{+2.8}_{-2.6}$ | -- | $1.8$ |
| $f_{220}$ | $198.6^{+9.4}_{-9.1}$ | -- | $199.3$ |
| $\tau_{220}$ | $0.0077^{+0.0018}_{-0.0015}$ | -- | $0.0079$ |
| $A_{220}$ | $4.5^{+5}_{-2}\times 10^{-21}$ | -- | $5.3\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 59313
Link to File

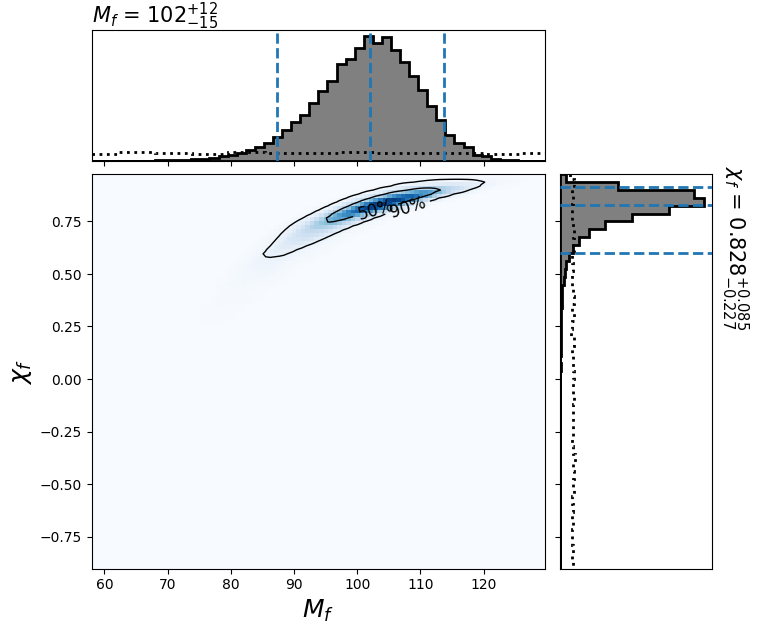

W10. GW150914_m2ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $102^{+12}_{-15}$ | -- | $104$ |
| $\chi_f$ | $0.828^{+0.085}_{-0.227}$ | -- | $0.846$ |
| $\iota$ | $2.20^{+0.64}_{-0.43}$ | -- | $1.96$ |
| $\log_{10}A_{220}$ | $-20.34^{+0.37}_{-0.26}$ | -- | $-20.12$ |
| $\phi_{220}$ | $3.1^{+2.8}_{-2.8}$ | -- | $5.5$ |
| $f_{220}$ | $191^{+12}_{-12}$ | -- | $192$ |
| $\tau_{220}$ | $0.0069^{+0.0020}_{-0.0017}$ | -- | $0.0071$ |
| $A_{220}$ | $4.6^{+6.2}_{-2.1}\times 10^{-21}$ | -- | $7.5\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 56779
Link to File

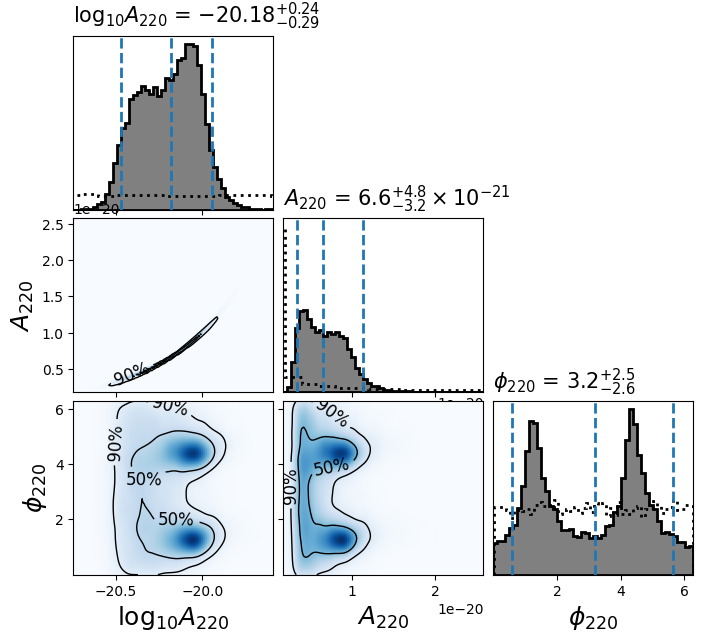

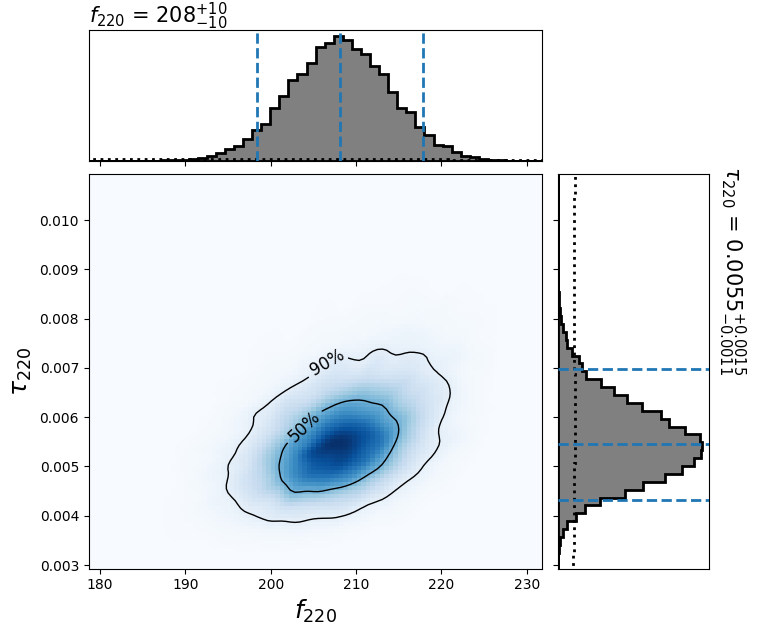

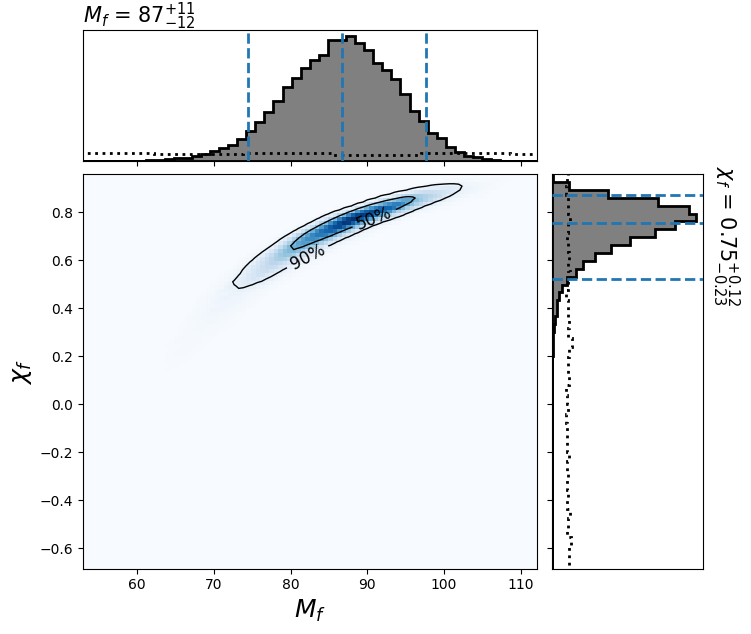

W11. GW150914_m1ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $87^{+11}_{-12}$ | -- | $89$ |
| $\chi_f$ | $0.75^{+0.12}_{-0.23}$ | -- | $0.80$ |
| $\iota$ | $2.08^{+0.73}_{-0.63}$ | -- | $1.62$ |
| $\log_{10}A_{220}$ | $-20.18^{+0.24}_{-0.29}$ | -- | $-20.02$ |
| $\phi_{220}$ | $3.2^{+2.5}_{-2.6}$ | -- | $4.3$ |
| $f_{220}$ | $208^{+10}_{-10}$ | -- | $211$ |
| $\tau_{220}$ | $0.0055^{+0.0015}_{-0.0011}$ | -- | $0.0058$ |
| $A_{220}$ | $6.6^{+4.8}_{-3.2}\times 10^{-21}$ | -- | $9.5\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 62128
Link to File

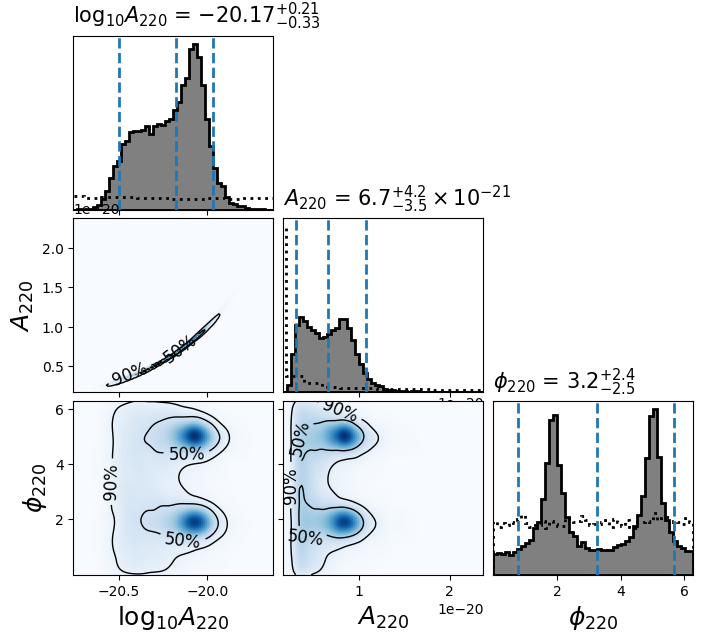

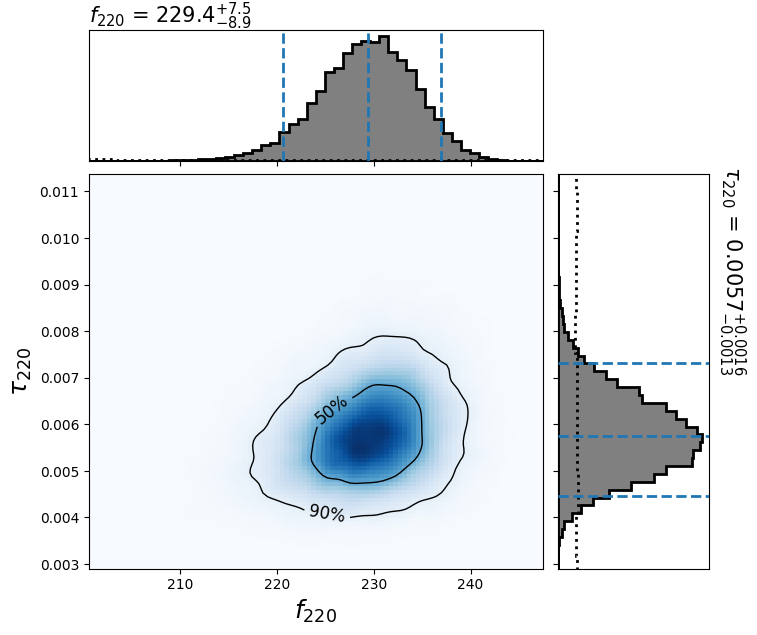

W12. GW150914_0ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $85^{+10}_{-12}$ | -- | $88$ |
| $\chi_f$ | $0.829^{+0.077}_{-0.161}$ | -- | $0.862$ |
| $\iota$ | $1.5^{+1.1}_{-1.1}$ | -- | $1.6$ |
| $\log_{10}A_{220}$ | $-20.17^{+0.21}_{-0.33}$ | -- | $-20.04$ |
| $\phi_{220}$ | $3.2^{+2.4}_{-2.5}$ | -- | $1.8$ |
| $f_{220}$ | $229.4^{+7.5}_{-8.9}$ | -- | $231.6$ |
| $\tau_{220}$ | $0.0057^{+0.0016}_{-0.0013}$ | -- | $0.0062$ |
| $A_{220}$ | $6.7^{+4.2}_{-3.5}\times 10^{-21}$ | -- | $9.1\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 65960
Link to File

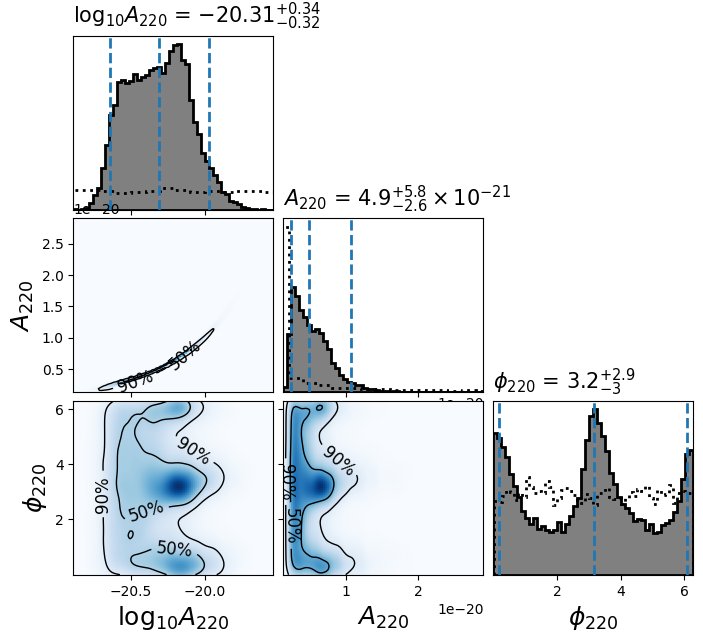

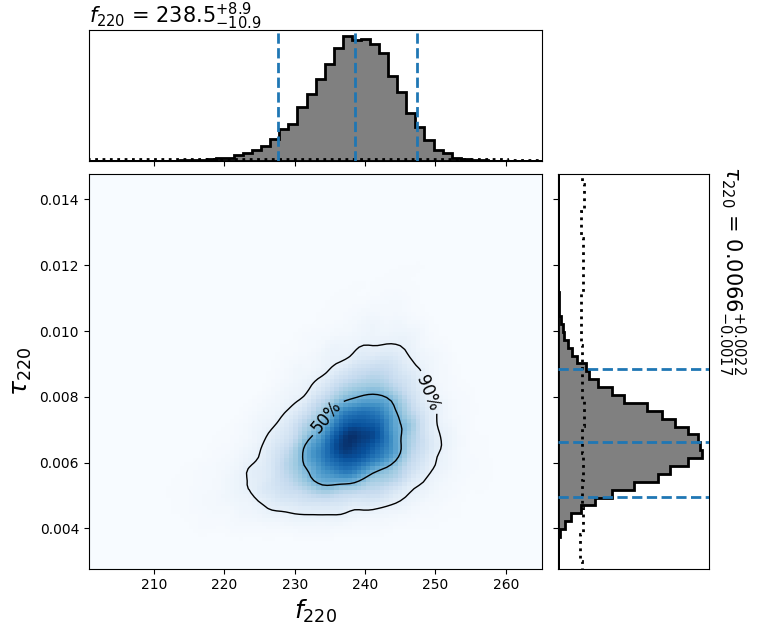

W13. GW150914_1ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $89.5^{+9.4}_{-11.7}$ | -- | $92.3$ |
| $\chi_f$ | $0.890^{+0.055}_{-0.125}$ | -- | $0.912$ |
| $\iota$ | $2.02^{+0.76}_{-0.91}$ | -- | $1.62$ |
| $\log_{10}A_{220}$ | $-20.31^{+0.34}_{-0.32}$ | -- | $-20.16$ |
| $\phi_{220}$ | $3.2^{+2.9}_{-3}$ | -- | $6.2$ |
| $f_{220}$ | $238.5^{+8.9}_{-10.9}$ | -- | $240.1$ |
| $\tau_{220}$ | $0.0066^{+0.0022}_{-0.0017}$ | -- | $0.0072$ |
| $A_{220}$ | $4.9^{+5.8}_{-2.6}\times 10^{-21}$ | -- | $7\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 62412
Link to File

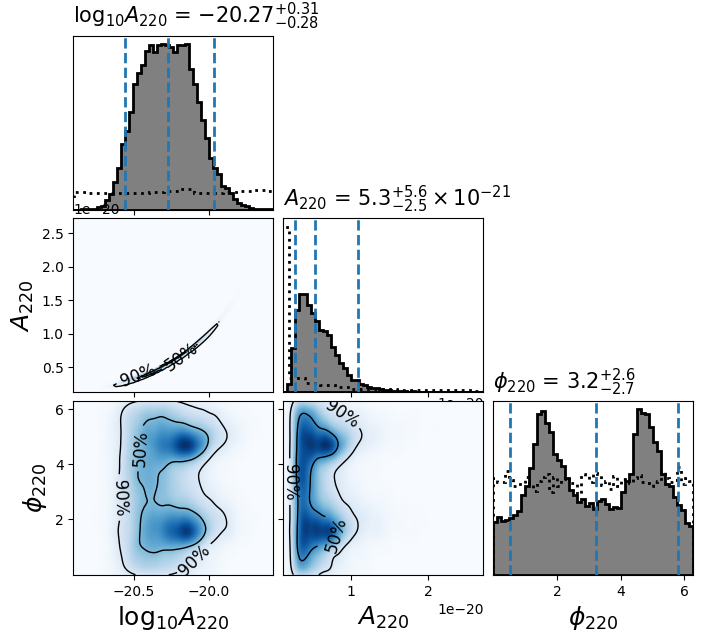

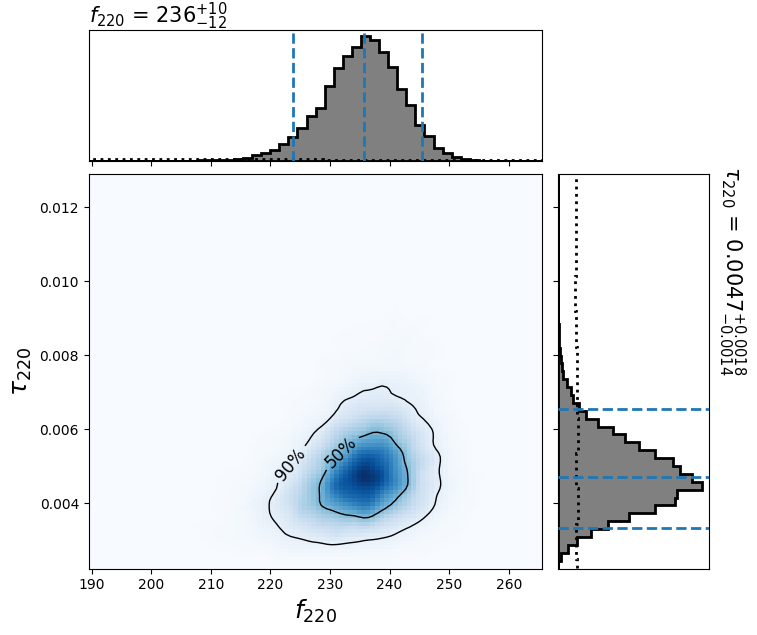

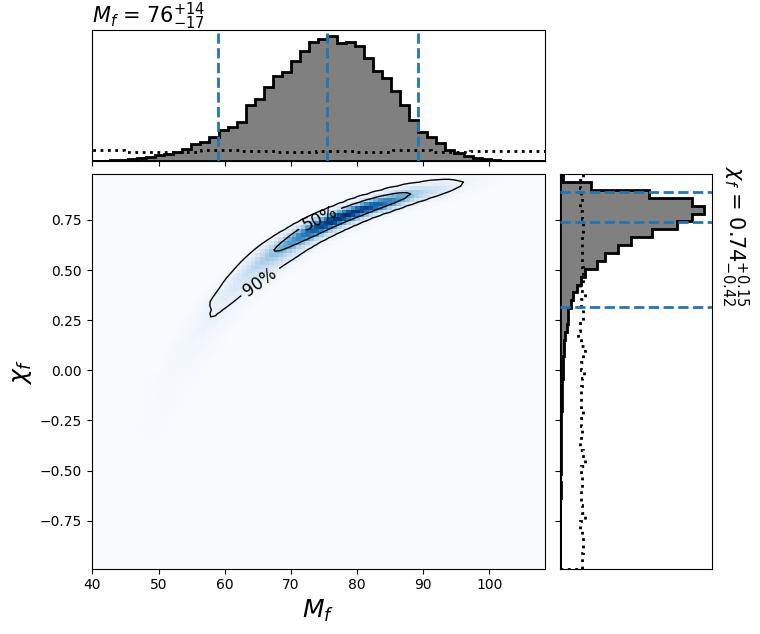

W14. GW150914_2ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $76^{+14}_{-17}$ | -- | $81$ |
| $\chi_f$ | $0.74^{+0.15}_{-0.42}$ | -- | $0.82$ |
| $\iota$ | $2.14^{+0.68}_{-0.57}$ | -- | $1.61$ |
| $\log_{10}A_{220}$ | $-20.27^{+0.31}_{-0.28}$ | -- | $-20.10$ |
| $\phi_{220}$ | $3.2^{+2.6}_{-2.7}$ | -- | $4.6$ |
| $f_{220}$ | $236^{+10}_{-12}$ | -- | $238$ |
| $\tau_{220}$ | $0.0047^{+0.0018}_{-0.0014}$ | -- | $0.0054$ |
| $A_{220}$ | $5.3^{+5.6}_{-2.5}\times 10^{-21}$ | -- | $7.9\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 57634
Link to File

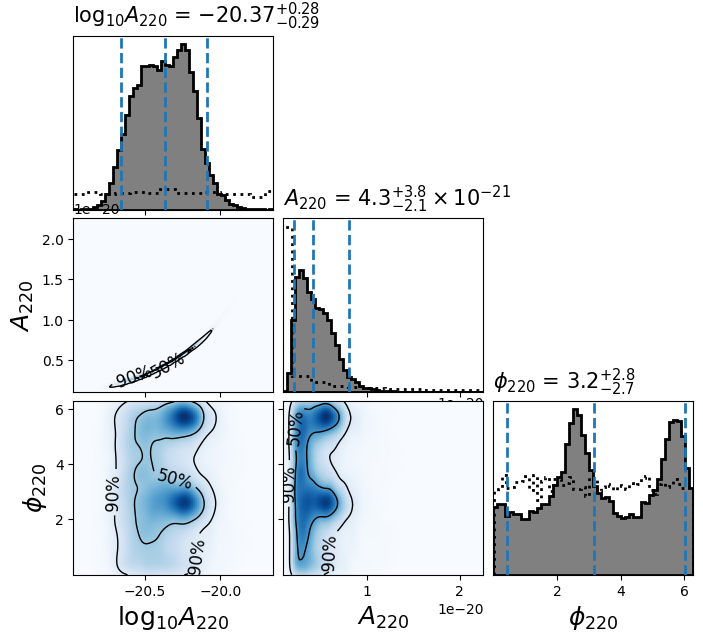

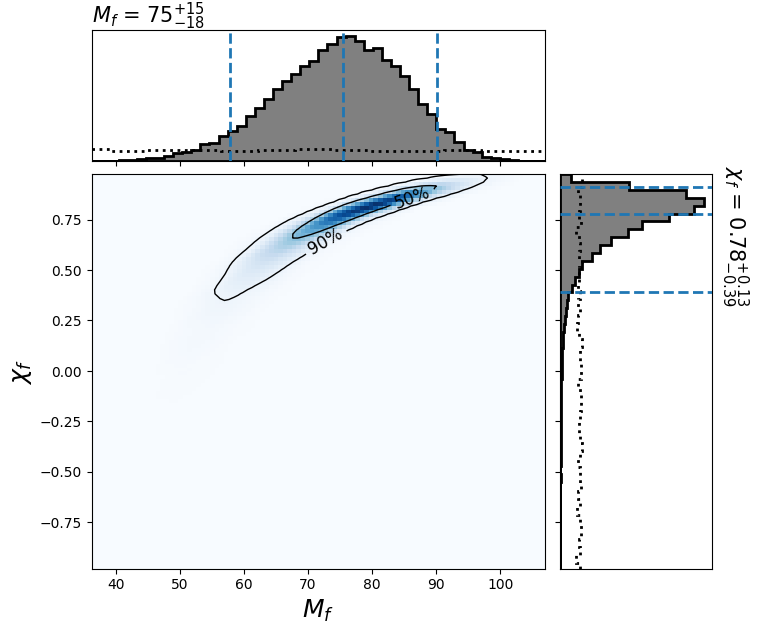

W15. GW150914_3ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $75^{+15}_{-18}$ | -- | $83$ |
| $\chi_f$ | $0.78^{+0.13}_{-0.39}$ | -- | $0.87$ |
| $\iota$ | $2.00^{+0.78}_{-1.31}$ | -- | $1.63$ |
| $\log_{10}A_{220}$ | $-20.37^{+0.28}_{-0.29}$ | -- | $-20.20$ |
| $\phi_{220}$ | $3.2^{+2.8}_{-2.7}$ | -- | $5.7$ |
| $f_{220}$ | $245^{+14}_{-15}$ | -- | $247$ |
| $\tau_{220}$ | $0.0048^{+0.0022}_{-0.0015}$ | -- | $0.0059$ |
| $A_{220}$ | $4.3^{+3.8}_{-2.1}\times 10^{-21}$ | -- | $6.2\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 56991
Link to File

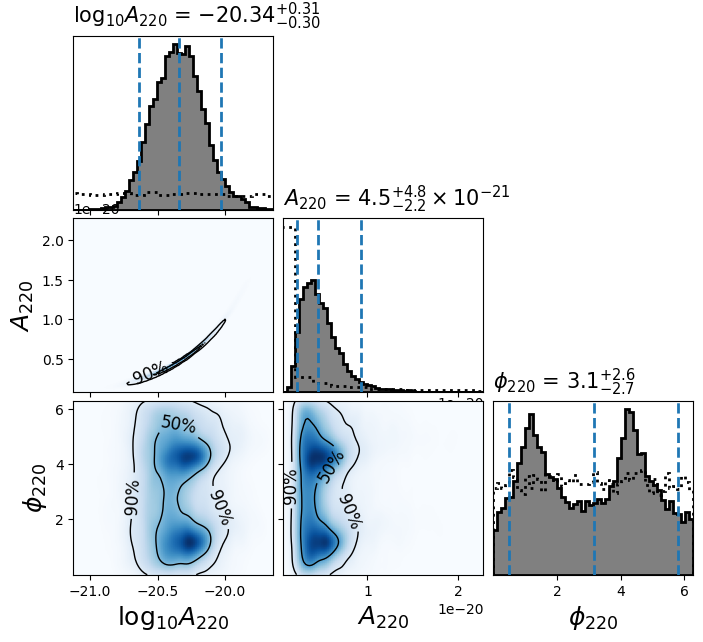

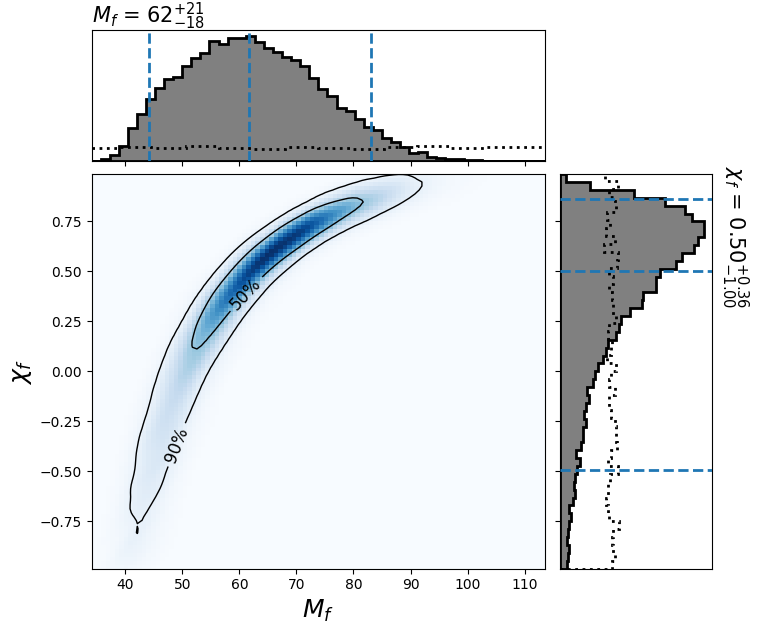

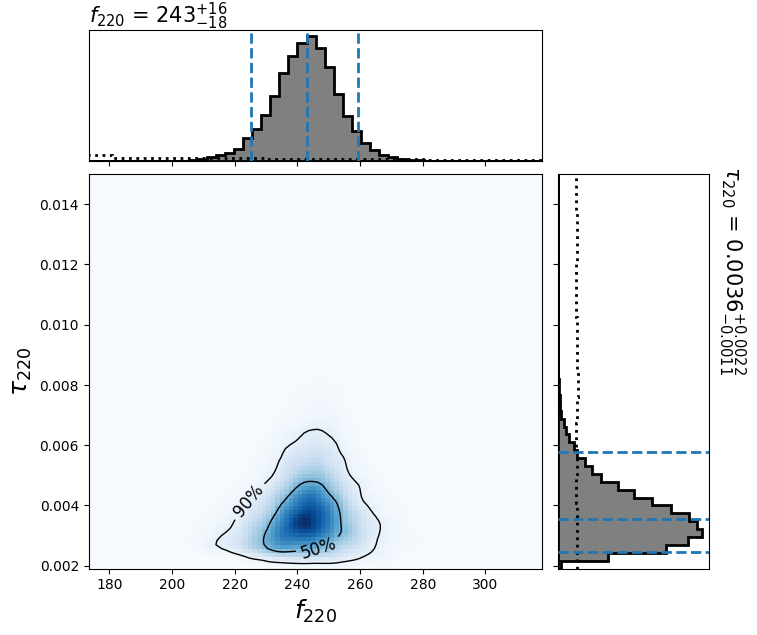

W16. GW150914_4ms
| Parameter | 90% Credible Interval | Maximum Posterior | Maximum Likelihood |
|---|---|---|---|
| $M_f$ | $62^{+21}_{-18}$ | -- | $75$ |
| $\chi_f$ | $0.50^{+0.36}_{-1.00}$ | -- | $0.77$ |
| $\iota$ | $2.12^{+0.69}_{-0.88}$ | -- | $1.60$ |
| $\log_{10}A_{220}$ | $-20.34^{+0.31}_{-0.30}$ | -- | $-20.20$ |
| $\phi_{220}$ | $3.1^{+2.6}_{-2.7}$ | -- | $4.2$ |
| $f_{220}$ | $243^{+16}_{-18}$ | -- | $244$ |
| $\tau_{220}$ | $0.0036^{+0.0022}_{-0.0011}$ | -- | $0.0048$ |
| $A_{220}$ | $4.5^{+4.8}_{-2.2}\times 10^{-21}$ | -- | $6.4\times 10^{-21}$ |
Detectors: H1, L1
Number of posterior samples: 51850
Link to File
